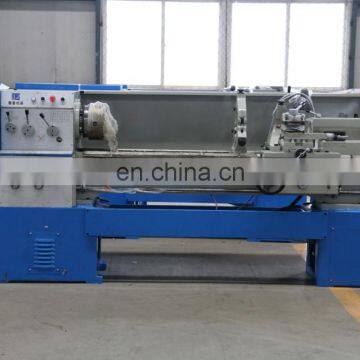

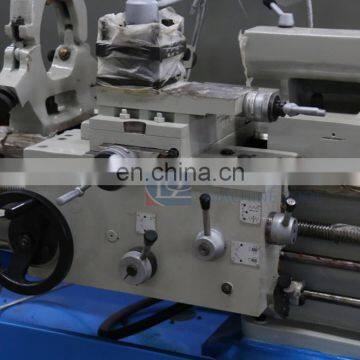

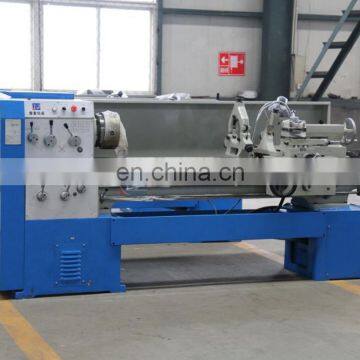

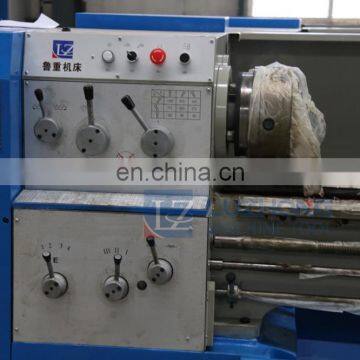

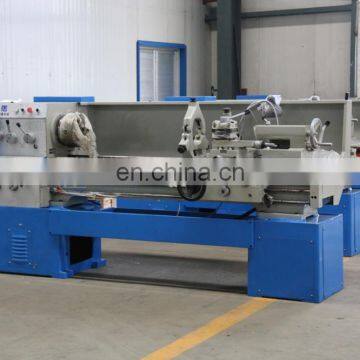

Metal C6250 Gap Bed Lathe Machine for sale
Product description:
1.Bed rail by super audio quenching and precision grinding.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
5.With electromagnetic brake, the color of available options.
Product main technical Specifications:
Specifications | C6250 | |
Capacity | Max. Swing over bed | 500mm |
Max. rotating diameter | 300mm | |
Max. swing over gap | 720mm | |
Center distance | 750,1000,1500,2000mm | |
spindle | Spindle hole | 52mm(82mm) |
Spindle nose | ISO-C6(C8) | |
Spindle tap | MT6 | |
Spindle speeds(Number) | 36-1600rpm (12 Steps) | |
Feed | Metric threads range(Kinds) | 0.5-14mm (18 Kinds) |
Inch threads range(Kinds) | 2-40/inch (28 Kinds) | |
Module threads range(Kinds) | 0.25-3.5mπ (17 Kinds) | |
Compound rest travel | 150mm | |
Cross slide travel | 180mm | |
Cross-section size of tool shank | 22×22mm2 | |
Tailstock | Dia. of tailstock sleeve | 75mm |
Taper of tailstock sleeve | MT5 | |
Travel of tailstock sleeve | 160mm | |
Main motor power | 5.5/7.5kw | |
Overall dimensions for750mm | 2100×1150×1550mm | |
Overall dimensions for1000mm | 2350×1150×1550mm | |
Overall dimensions for1500mm | 2850×1150×1550mm | |
Overall dimensions for2000mm | 3350×1150×1550mm | |
Weight for 750mm | 1700kg | |
Weight for 1000mm | 1800kg | |
Weight for 1500mm | 2000kg | |
Weight for 2000mm | 2200kg | |
| | | |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
