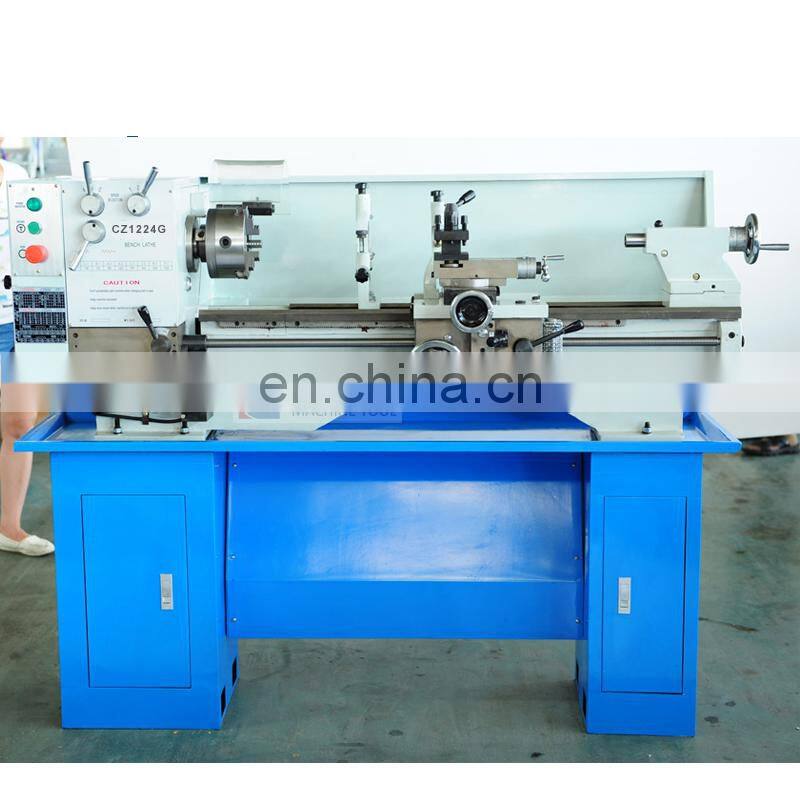

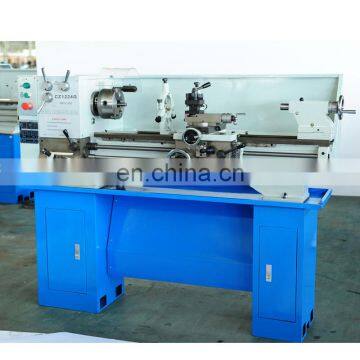

Mini Hobby CZ1224G Bench Lathe Machine for sale
The main performance characteristics:
1.Engineered from high grade castings
2.V way bed ways induction hardened and ground
3.Gap bed
4.Cross and longitudinal interlocking feed, enough safety
5.Inching switch for test running
6.Metric/Imperial threading available
7.Precise gear-driven headstock
Product main technical parameters:
Specifications |
| CZ1224 G |
Swing over bed | mm | 305 |
Swing over carriage | mm | 173 |
Swing over gap | mm | 440 |
Width of bed-way | mm | 182 |
Distance between centers | mm | 530 |
Spindle taper |
| MT5 |
Spindle bore | mm | 38 |
Step of speed |
| 9 |
Range of speed | rpm | 64-1500 |
Metric thread | mm | Closed box:11kinds(0.5~43.5) |
Norton box:15kinds(0.25~47.5) | ||
Inch thread | T.P.I | Closed box:14kinds(7-1/2~48) |
Norton box:40kinds(4~112) | ||
Range of feed amount | Mm/r | Closed box:0.051~0.303(0.002’’-0.012’’) |
Norton box:0.12~0.42(0.0047’’-0.0165’’) | ||
Diameter of lead screw | mm | 22(7/8’’) |
Pitch of lead screw |
| 3mm or 8 T.P.I |
Saddle travel | mm | 510 |
Cross travel | mm | 150 |
Compound travel | mm | 85 |
Barrel travel | mm | 95 |
Barrel diameter | mm | 32 |
Taper of center | mm | MT3 |
Motor power | Kw | 1.1(1.5HP) |
Motor for coolant system’s power | Kw | 0.04(0.055HP) |
Machine(L×W×H) | mm | 1420x750x760 |
Stand (left)(L×W×H) | mm | 400x370x700 |
Stand (right)(L×W×H) | mm | 300x370x700 |
Machine | Kg | 380/430 |
| | | |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
