CNC machine center XHS7145 XH7145 Vertical Machining Center price
- 100 Set / Sets per Month
- any port in China
- T/T Credit Card
- HMC500 chinese CNC horizontal machining center
- Heavy Duty Machining Center HMC630 CNC Horizontal Machining Center
- VMC1580 Chinese 3 axis CNC Milling Machine CNC Vertical Machining Center
- CNC Milling Machine VMC850 Linear Guide Rail Vertical Machining Center
- China XH7124 XK7124 Small 5 Axis CNC vertical machining center
- Milling Machine VMC20100 Metal CNC vertical machining center
Product Details
Brand Name: | luzhong | Place of Origin: | Shandong, China | Type: | Vertical |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 12 Months |
Weight: | 4200kg | Dimension(L*W*H): | 2100*2450*2300mm | Voltage: | Customer's Requirement |
Condition: | New | Power(W): | 5.5/7.5kw |
Product Description
CNC machine center XHS7145 XH7145 Vertical Mchining Center price

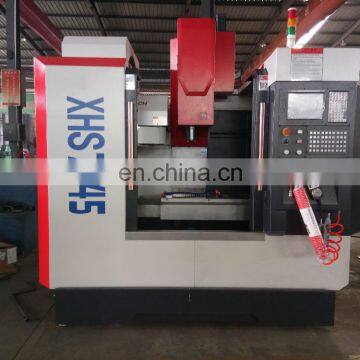

Product picture:
Standard configuration:
KND2000 control system
Lubricating system
Full guard
Manual chip conveyor
Optional accessories :
Control system :KND,GSK,Siemens etc.
Chain type automatic chip conveyor

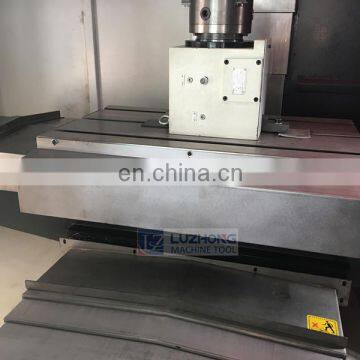

The forth axis
Spindle center water outlet ,spindle oil coolant
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
Product main technical specifications:
specifications | unit | XHS7145 | XH7145 |
Table size | mm | 800x450 | 1000x450 |
Table maximum load | kg | 500 | 600 |
T slot(number-width-pitch) |
| 5-18-80 | 5-18-80 |
X axis travel | mm | 600 | 700 |
Y axis travel | mm | 450 | 450 |
Z axis travel | mm | 500 | 550 |
Distance between spindle center and column surface | mm | 485 | 460 |
Distance between spindle nose and worktable surface | mm | 130-630 | 120-670 |
X/Y axis max.rapid traverse | m/min | 24 | 12 |
Z axis max.rapid traverse | m/min | 18 | 10 |
Cutting feed | mm/min | 1-5000 | 1-5000 |
Spindle speed | r/min | 80-8000 | 80-8000 |
Spindle taper |
| BT40 | BT40 |
Main motor power | kw | 5.5/7.5 | 5.5/7.5 |
X/Y/Z guide rail form |
| 3 axis linear rail | 3 axis hard rail |
positioning accuracy | mm | 0.012/0.01/0.01 | 0.016/0.012/0.012 |
Repeat positioning accuracy | mm | 0.008/0.006/0.006 | 0.01/0.008/0.008 |
Tool magazine capacity(standard/optional) |
| 16/24 | 16/24 |
Max.tool dia.(adjoin/apart) | mm | 80/130 80/125 | 80/130 80/125 |
Max. tool length | mm | 300 | 300 |
Max.tool weight | kg | 6 | 6 |
Machine dimension | mm | 2100x2450x2300 | 2100x2450x2300 |
Machine weight | kg | 4200 | 4200 |
CNC machining center vmc-650 | VMC 850 machining center CNC VMC |
Gantry type milling machining center cnc | Horizontal Chinese Machining center |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large scale manufacturing enterprise with glorious chievement and long history . Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
Machine Model: CNC machining center XHS7145 XH7145 Vertical Mchining Center price
Packaging size: 2100*2450*2300mm(one set in one case)
N.W./G.W.: 4200KG
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
