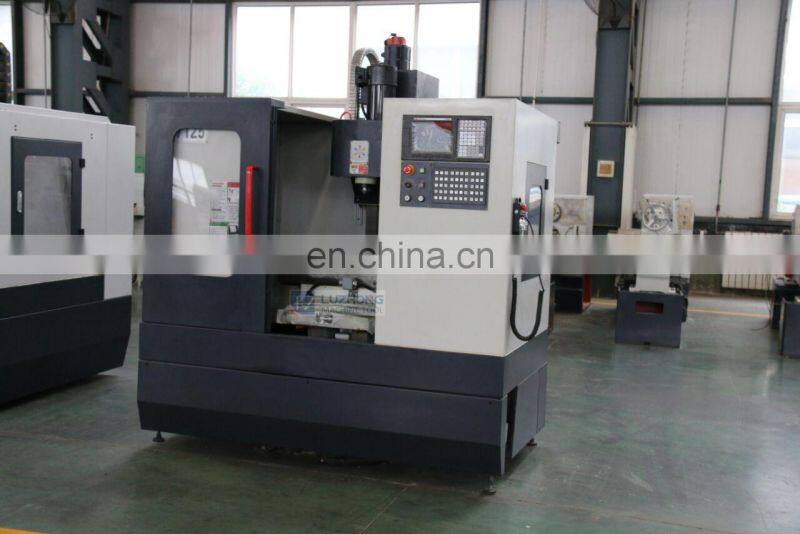

VMC400 Small Vertical Machining Center ,Mini CNC Milling Machine
Product configuration:
Standard configuration:
1.The CNC system: SINUMERIK 808D
2.The high quality castings: Resin sand casting
3.The spindle: Taiwan famous high speed spindle
4.The screw: HIWIN
5.The knife: The famous Taiwan bamboo hat knife.
6.The unclamping cylinder: Taiwan Shang product
7.The weight: Wuxi co Qing nitrogen balance
8.The bearing: Japan NTN
9.The Internal protection: Total protection
Select the configuration:
1.M70B/M70A Mitsubishi FANUC 0i mate MD
2.The CNC dividing head
3.NC rotary table
4.The chip cleaner
5.The taiwan famous brand manipulator knife storehouse
6.The fourth axis
7.The fifth axis
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
Product main technical specifications:
Specifications |
Units |
VMC400 |
Table size |
mm |
800×250 |
X-axis travel |
mm |
400 |
Y-axis travel |
mm |
250 |
Z-axis travel |
mm |
400 |
Rapid traverse (X/Y/Z) |
mm/min |
6000 |
Maximum table load |
kg |
300 |
Spindle taper |
|
BT30 |
T-slot (slot number×width×pitch) |
mm |
3-14-75 |
Spindle power |
kw |
3.7 |
Maximum spindle speed |
rpm |
6000 |
Cutting feed |
mm/min |
5000 |
Spindle nose to table |
mm |
60-460 |
Spindle center to column surface distance rail |
mm |
300 |
Maximum tool diameter |
mm |
Φ92 |
Maximum tool weight |
kg |
5 |
Positioning accuracy |
mm |
±0.02 |
Repeat accuracy |
mm |
±0.01 |
Dimensions |
mm |
1870×1520×2070 |
Machine weight |
kg |
1530 |
|
|
| VMC650 Vertical Machining Center | VMC850 Vertical Machining Center |
|
|
| VMC1370 Vertical Machining Center | XH2308 Gantry Machining Center |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
