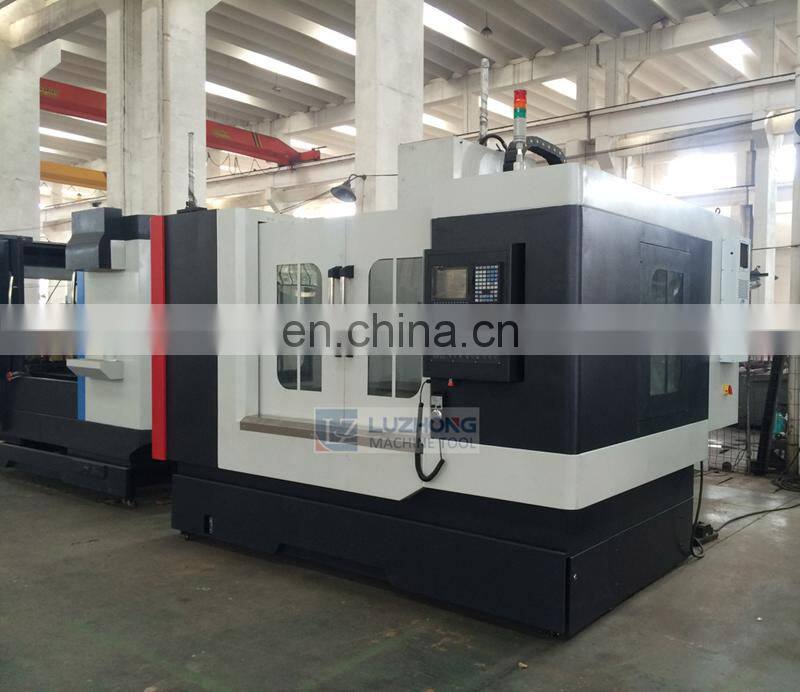

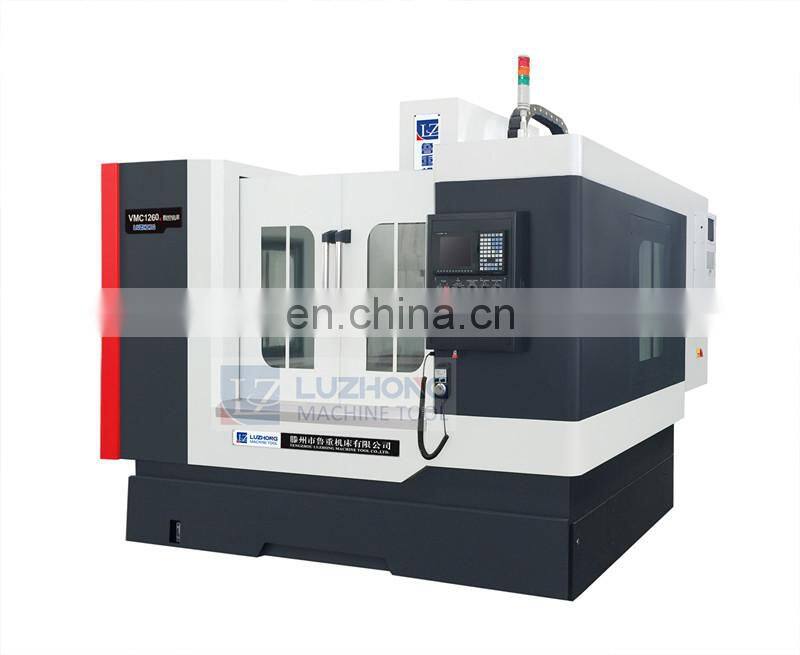

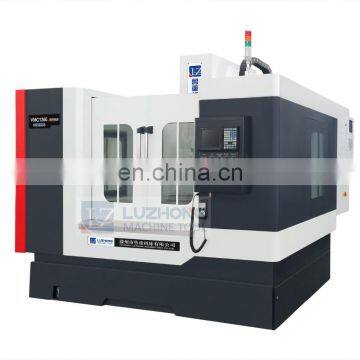

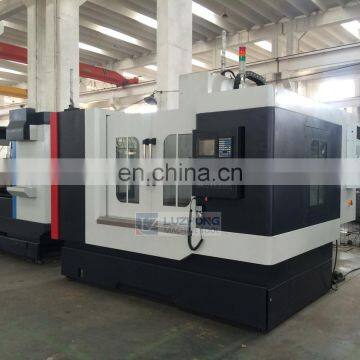

Large CNC Vertical Machining Center VMC1260 5-axis Machining Center
Product configuration:
Standard configuration:
1.The CNC system: FANUC 0i mate MD
2.The high quality castings: Resin sand casting
3.The spindle: Taiwan famous high speed spindle
4.The screw: HIWIN
5.The knife: The famous Taiwan bamboo hat knife.
6.The unclamping cylinder: Taiwan Shang product
7.The weight: Wuxi co Qing nitrogen balance
8.The bearing: Japan NTN
9.The Internal protection: Total protection
Select the configuration:
1.M70B/M70A Mitsubishi
2.The CNC dividing head
3.NC rotary table
4.The chip cleaner
5.The taiwan famous brand manipulator knife storehouse
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
This machine tool is suitable for machining and machining center, which can be used in the field of machining. It can be used to finish milling, drilling, tapping, boring and so on.
Product main technical specifications:
Specifications |
Units |
VMC1260 |
Table size |
mm |
1400×600 |
X-axis travel |
mm |
1200 |
Y-axis travel |
mm |
600 |
Z-axis travel |
mm |
600 |
Maximum table load |
kg |
800 |
T-slot (slot number×width×pitch) |
mm |
5-18-100 |
Spindle power |
kw |
7.5/11 |
Maximum spindle speed |
rpm |
8000 |
Rapid traverse (X/Y/Z) |
mm/min |
18000 |
Cutting feed |
mm/min |
1-6000 |
Spindle nose to table |
mm |
140-740 |
Spindle center to column surface distance rail |
mm |
650 |
Positioning accuracy |
mm |
±0.008 |
Repeat accuracy |
mm |
±0.0075 |
Maximum tool diameter |
mm |
Φ130 |
Maximum tool length |
mm |
300 |
Maximum tool weight |
kg |
8 |
Machine weight |
kg |
7200 |
Dimensions |
mm |
3800×2480×2960 |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
