Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > High Speed Cnc Drill Press Milling Machine Price Z3080
US$ 25,000 - 29,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hiscience
Place of Origin:
Shandong, China
Model Number:
Z3080
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Ningbo Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Cnc Drill Machine Specification Z3080US$ 25,000 - 29,000MOQ: 1 Set -
China Factory Automatic Drilling Machine Specification Z3032US$ 2,000 - 2,700MOQ: 1 Set
-
Multi-purpose Electric Drill Press Machine Z3080US$ 25,000 - 29,000MOQ: 1 Set
-
Drilling Milling Machine 7550 Milling Machine for SaleUS$ 3,800 - 4,500MOQ: 1 Set
-
China Manufacturing Hot Sale Radial Drilling Machine Price ZQ3050*10US$ 6,000 - 7,000MOQ: 1 Set
Brand Name
Hiscience
Place of Origin
Shandong, China
Model Number
Z3080
Certification
CE SGS ISO
After-sales Service Provided
Engineers available to service machinery overseas
Weight
10200KG
Dimension(L*W*H)
3650*1320*3890mm
Voltage
380V
Condition
New
Power(W)
7.5KW
CNC or Not
CNC
Drilling Speed
Normal Speed

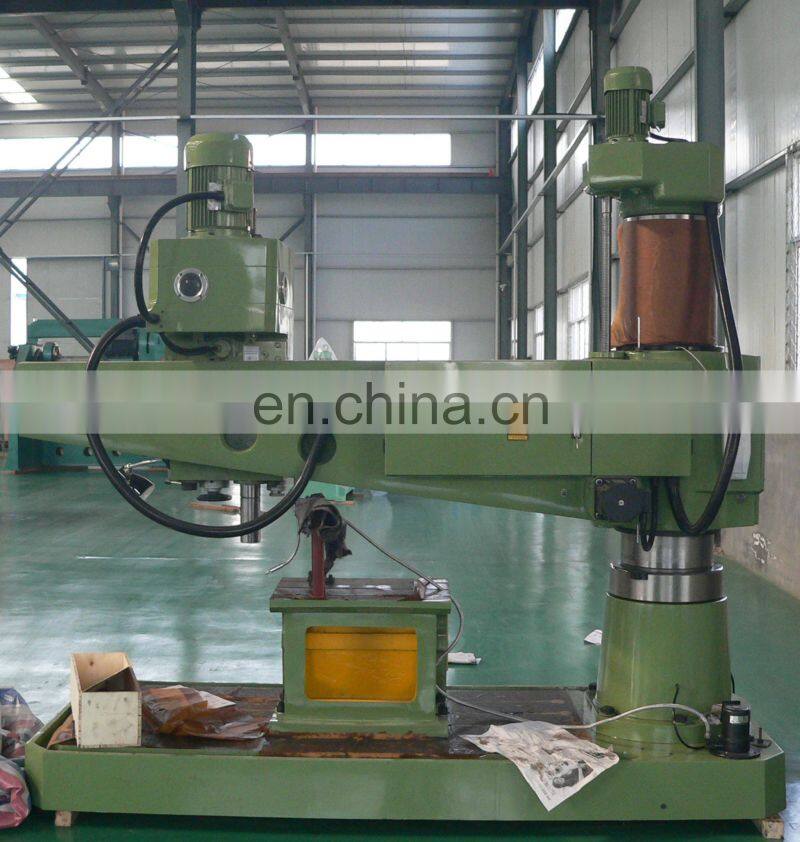

High speed cnc drill press milling machine price Z3080
Product Description
A. Specification
Hydraulic clamping Hydraulic transmission
Hydraulic pre-selection Electrical machinery double insurance
Items | Specifications |
Max drilling diameter | 80mm |
The gap between the center line of the spindle and column | Max:2580mm Min 500mm |
The gap between the spindle nose and the work table | Max 2060mm Min 550mm |
Travel of spindle | 450 mm |
Taper of spindle | 6# |
Range of spindle speed | 16-1250 rpm |
Number of spindle speeds | 16 |
Range of spindle feeds | 0.04-3.20 mm/r |
Table size | 900*1200mm |
Travel of spindle head | 2000mm |
Motor power | 7.5KW |
Weight | 10200kg |
Overall dimensions | 3650*1320*3890mm |

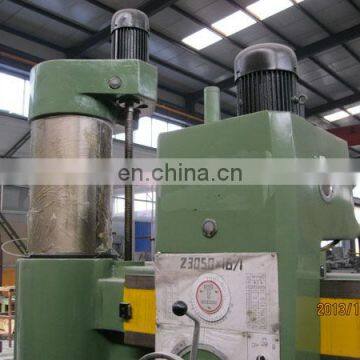

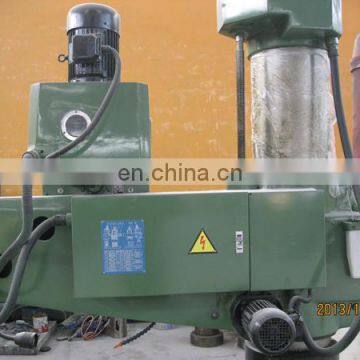

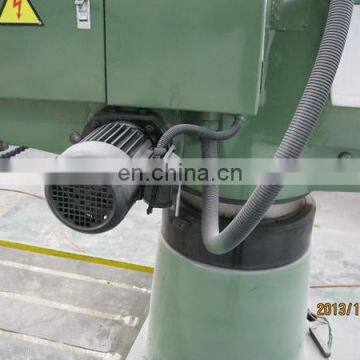

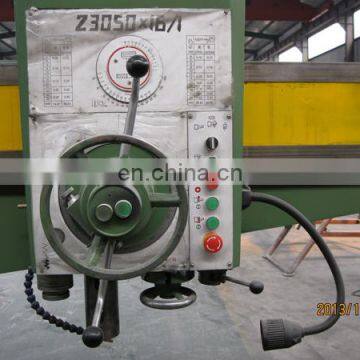

Pictures of Z3080
