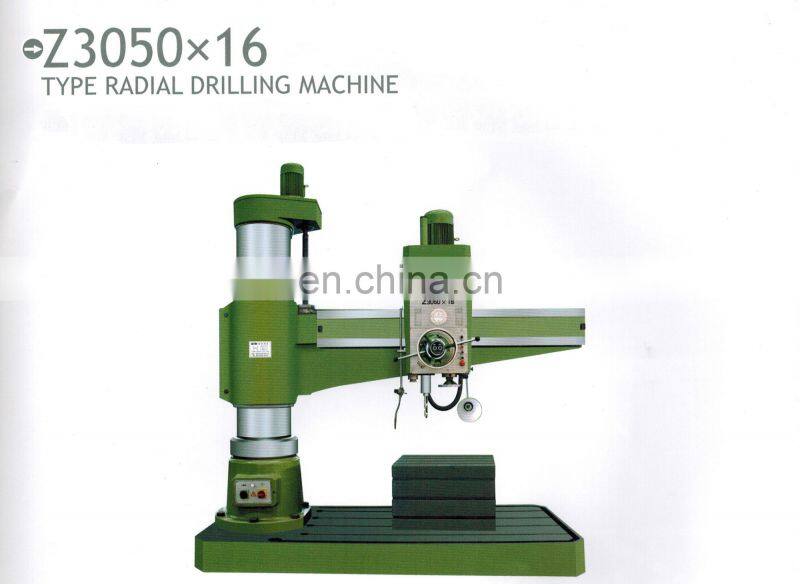

Heavy duty 35mm drilling radial drilling machine manufacturer ZQ3050
A. Standard Specification
Application: this machine widely applies to mechanical processing, can be used for drilling, reaming, reaming, tapping, , in process under the condition of the clamping, can the line boring.
A, Specification
Items | ZQ3050 |
Max drilling diameter (mm) | 50 |
Distance between spindle center line and column(mm) | 350-1600 |
Distance between spindle nose and work table(mm) | 320-1200 |
Spindle taper | 5#
|
Spindle speed series | 16 |
Spindle speed | 25-2000rpm |
Spindle travel(mm) | 300 |
Spindle feeding speed(mm/r) | 0.10; 0.16 0.25 |
Elevating speed and spindle (r/min) | 1.21 |
The turning angle of rocker | ±180° |
Table size | 500*630 |
Main motor power(kw) | 4 |
Elevating motor power(Kw) | 0.75kw |
Coolant pump power (kw) | 0.04 |
Weight (kg) | 3500 |
Overall dimension | 2500*1060*2800
|
B.Features:
1. Nice shape appearance, even and harmonious overall arrangement.
2. Automatic mechanical transmission ,easy to use.
3.. Reliable structure and skillful manufacture, the precision of machine can be durability guarantees.
4. Electric system is safe and reliable.
C.radial drilling machine accuracy
1.perpendicularity: verticality of machine spindle and bed is 200mm,allowable error 0-0.10mm.
2.parallelism:spindle box goes in and out along left and right side of rocker arm,parallelism 200mm and allowable error 0.15mm

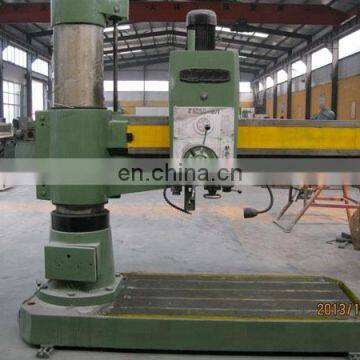

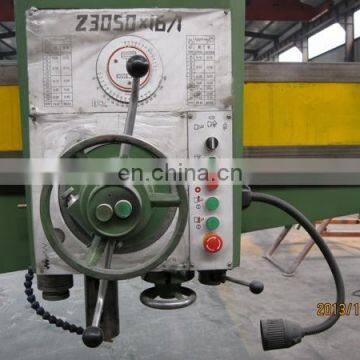

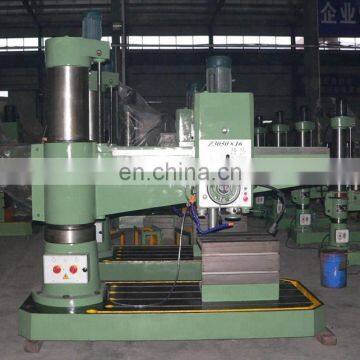

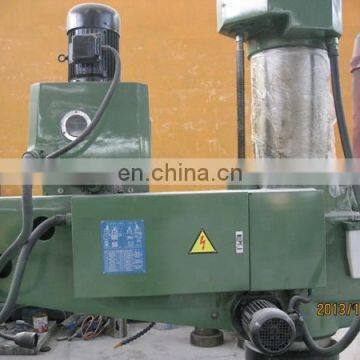

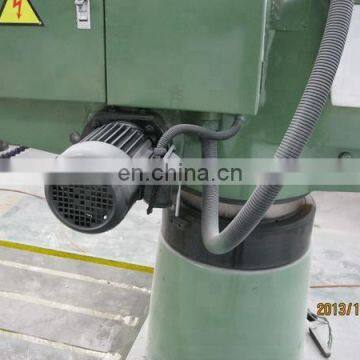

B.Pictures
C. Our company
D. Packaging & Shipping
G. Our Services
1.Warranty is one year, we would offer the parts
(quality problem) free of charge during this period
2.GSK CNC system, servo driven,warranty is 3 years
Siemens system (Have customer service service point in the world)
3.24 hours technical suport e-mail and
4.User manual and detailed video
