China Factory Automatic Drilling Machine Specification Z3032

China Factory Automatic Drilling Machine Specification Z3032 thumbnail-1
China Factory Automatic Drilling Machine Specification Z3032 thumbnail-2
China Factory Automatic Drilling Machine Specification Z3032 thumbnail-3
China Factory Automatic Drilling Machine Specification Z3032 thumbnail-4
China Factory Automatic Drilling Machine Specification Z3032 thumbnail-5
China Factory Automatic Drilling Machine Specification Z3032 photo-1
China Factory Automatic Drilling Machine Specification Z3032 photo-2

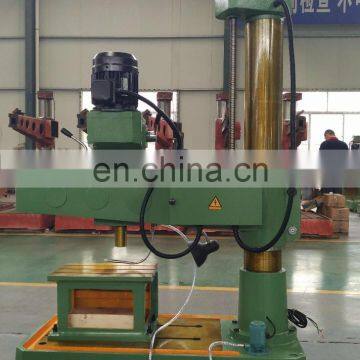

China Factory Automatic Drilling Machine Specification Z3032 photo-3

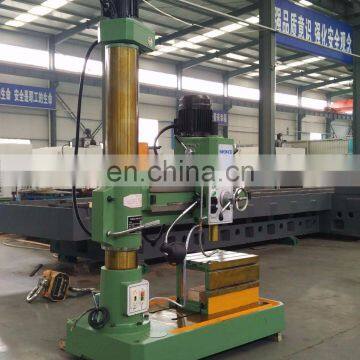

China Factory Automatic Drilling Machine Specification Z3032 photo-4

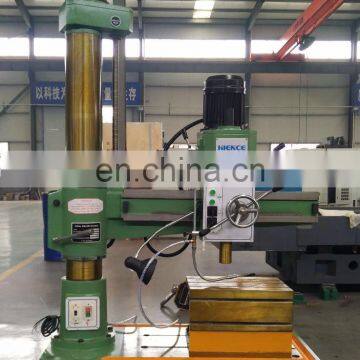

China Factory Automatic Drilling Machine Specification Z3032 photo-5
US$ 2,000 - 2,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hiscience
Place of Origin:
Shandong, China
Model Number:
Z3080
Contact Supplier Request Quote Chat Now
Horizontal Lathe Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Ningbo Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hiscience
Place of Origin Shandong, China
Model Number Z3080
Certification CE SGS ISO
After-sales Service Provided Engineers available to service machinery overseas
Weight 10200KG
Dimension(L*W*H) 3650*1320*3890mm
Voltage 380V
Condition New
Power(W) 7.5KW
CNC or Not CNC
Drilling Speed Normal Speed

China factory automatic drilling machine specification Z3032

Product Description



A. Specification



Items

ZQ3032×10

Max drilling diameter (mm)

32

Distance between spindle center line and column(mm)

200-910

Distance between spindle nose and work table(mm)

330-1060

Distance of headstock horizontal movement(mm)

710

Elevating distance of rocker(mm)

730

Spindle taper

MT4

Spindle speed series

6

Spindle speed

108-1000

Spindle travel(mm)

120

Spindle feeding speed(mm/r)

0.10;   0.16   0.25

The rise and fall speed and spindle (r/min)

1.21

The turning angle of rocker

±180°

The spindle allowed maximum torque (Nm)

200

The spindle allowed maximum feeding resistance(N)

5300

Main motor power(kw)

1.5/2.2

Elevating motor power(Kw)

0.55kw

Coolant pump power (kw)

0.04

Weight (kg)

1080

Overall dimension

1400*660*2060

Pictures of Z3032

China factory automatic drilling machine specification Z3032

China factory automatic drilling machine specification Z3032

China factory automatic drilling machine specification Z3032
