Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Multi-purpose Electric Drill Press Machine Z3080
Multi-purpose Electric Drill Press Machine Z3080
US$ 25,000 - 29,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hiscience
Place of Origin:
Shandong, China
Model Number:
Z3080
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Ningbo Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Drilling Milling Machine 7550 Milling Machine for SaleUS$ 3,800 - 4,500MOQ: 1 Set -
China Manufacturing Hot Sale Radial Drilling Machine Price ZQ3050*10US$ 6,000 - 7,000MOQ: 1 Set
-
40 Drilling Diameter Drilling Machine Price ZQ3040x10US$ 2,500 - 3,000MOQ: 1 Set
-
Mini Radial Drilling Machine With Low Cost ZQ3040x10US$ 2,500 - 3,000MOQ: 1 Set
-
40mm Drilling Capacity Radial Drilling Machine ZQ3040x10US$ 2,500 - 3,000MOQ: 1 Set
Brand Name
Hiscience
Place of Origin
Shandong, China
Model Number
Z3080
Certification
CE SGS ISO
After-sales Service Provided
Engineers available to service machinery overseas
Weight
10200KG
Dimension(L*W*H)
3650*1320*3890mm
Voltage
380V
Condition
New
Power(W)
7.5KW
CNC or Not
CNC
Drilling Speed
Normal Speed
Multi-purpose electric drill press machine Z3080
Product Description
A. Specification
Hydraulic clamping Hydraulic transmission
Hydraulic pre-selection Electrical machinery double insurance
Items |
Specifications |
Max drilling diameter |
80mm |
The gap between the center line of the spindle and column |
Max:2580mm Min 500mm |
The gap between the spindle nose and the work table |
Max 2060mm Min 550mm |
Travel of spindle |
450 mm |
Taper of spindle |
6# |
Range of spindle speed |
16-1250 rpm |
Number of spindle speeds |
16 |
Range of spindle feeds |
0.04-3.20 mm/r |
Table size |
900*1200mm |
Travel of spindle head |
2000mm |
Motor power |
7.5KW |
Weight |
10200kg |
Overall dimensions |
3650*1320*3890mm |

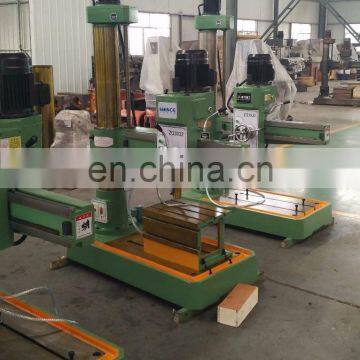

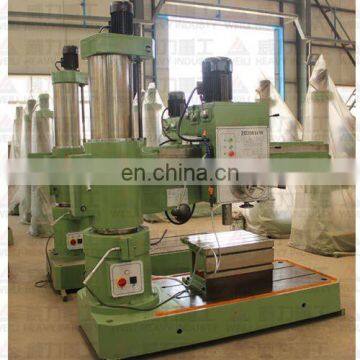

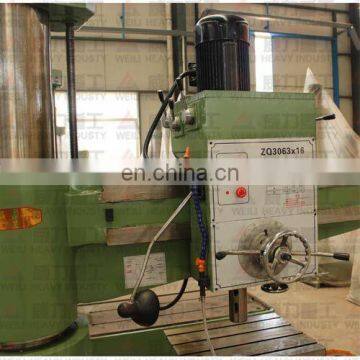

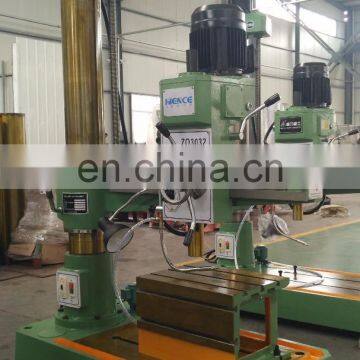

Pictures of Z3080
