Hard Part Turning Bearing steel Wind turbine bearing with halnn tools compang CBN Cutters
1. Halnn Tools ang CBN Cutters for Hard Part Turning Bearing steel Wind turbine bearing
For large slewing bearings, the hardness after heat treatment is generally above HRC45. Grinding is often used to machine slewing bearings. Although high workpiece accuracy can be obtained, the grinding efficiency is too low, which affects the machining efficiency.
With the continuous development of cutting technology, the tool industry castings have developed tool materials that can be used instead of grinding, and lathe processing instead of grinding machine processing can not only improve the processing efficiency, but also meet the drawing requirements. At present, the simple machining process used in mechanical processing plants is roughing-heat treatment-finishing, and turning is used instead of grinding.
2. Characteristics of CBN Cutters
Insert Grade |
Machining Hardness |
Processing Condition |
Machining Materials |
BN-S200 |
HRC45~68 |
Semi-finishing |
Hardened Steel, Superalloy |
Fine Finishing | |||
BN-S20 |
HRC45~68 |
Roughing |
Hardened Steel |
Semi-finishing | |||
BN-H21 |
HRC62~68 |
Fine Finishing |
Hardened Steel |
BN-H10 |
HRC45~68 |
Fine Finishing |
Hardened Steel and High Strength Cast Iron |
3.Detailed date of CBN Cutters
Type |
Dimension |
Grades |
||||
L(mm) |
φI.C(mm) |
S(mm) |
r(mm) |
BN-S10 |
BN-S20 |
|
SNGN120404 |
12.7 |
12.7 |
4.76 |
0.4 |
● |
● |
SNGN120408 |
12.7 |
12.7 |
4.76 |
0.8 |
● |
● |
SNGN120412 |
12.7 |
12.7 |
4.76 |
1.2 |
● |
● |
SNGN120712 |
12.7 |
12.7 |
7.94 |
1.2 |
● |
● |
SNGN120716 |
12.7 |
12.7 |
7.94 |
1.6 |
● |
● |
SNGN150716 |
15.875 |
15.875 |
7.94 |
1.6 |
● |
● |
SNGN201020 |
20 |
20 |
10 |
2 |
● |
|
4.Application Case
|
Machining Site: Raceway and End Surface Materials: 42CrMo4 Hardness: HRC47~55 Insert Model: BN-S200 Cutting Data: Vc = 110m/min, Fr=0.45mm/r, ap=0.5mm Processing Type: Dry Cutting |
|
|||
Cutting Parameters | ||||
Insert Materials |
Cutting Speed (m/min) |
Tool Life |
Roughness |
|
Halnn BN-S200 |
110 |
8 |
Ra0.8 |
|
Ceramic Cutters |
90 |
1 |
Ra1.6 |
|

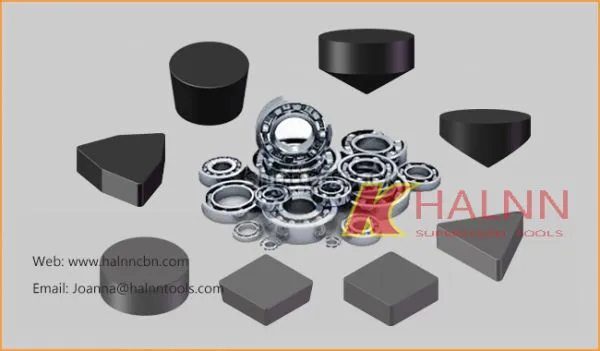

5. Pictures of CBN Cutters
6.Product packaging
