Finish Turning Bearing steel Wind Power Bearings for CBN Turning inserts with Best quality
1. Halnn Tools CBN Turning inserts Finish Turning Bearing steel Wind Power Bearings
With the development of science and technology, the precision requirements for the processing of extra large bearings are getting higher and higher. Due to the limitation of the machining precision of the general CNC vertical lathe, the reaming reamer of the grinding process has a longer grinding time and lower efficiency. With the development and application of superhard tools (CBN tools), in many cold machining, grinding can be replaced by turning.
CBN tool features for hard-turned bearing:
(1) CBN cutters have high hardness and wear resistance and are the second highest hardness materials known at present. When processing high hardness materials, dimensional deviation and dimensional dispersion in processing of large parts can be reduced.
(2) CBN tools have high thermal stability and high temperature hardness. When the cutting temperature is high, it is beneficial to the cutting process, but has little effect on the tool life.
2. Characteristics of CBN Turning Inserts
Insert Grade |
Suited Materials |
Machining Type |
Typical Application |
BN-S200 |
Hardened Steel, Superalloy |
Finishing |
Wind Power Bearings |
BN-S20 |
Hardened Steel, Heat and abrasive resistant steel, High manganese steel |
Roughing, Semi-Finishing |
HSS Rolls, Ball Screw, Wind Power Bearings |
BN-H11 |
Hardened Steel |
Semi-Finishing, Finishing |
Bearings, Gears, Gear Shaft, Hardened Mold |
BN-H20 |
Hardened steel, other materials of difficult to machine |
Semi-Finishing, Finishing |
Hardened Steel Gears, Mold,ect |
BN-H10 |
Hardened Steel, high strength cast iron |
Finishing |
Bearings, Gears, Gear Shaft, High hardness component |
BN-H21 |
Hardened Steel |
Finishing |
Bearings, Gears, Gear Shaft, Mold,ect. |
3.Detailed date of CBN Turning Inserts
Type |
Dimension |
Grades |
||||
L(mm) |
φI.C(mm) |
S(mm) |
r(mm) |
BN-S10 |
BN-S20 |
|
SNGN120412 |
12.7 |
12.7 |
4.76 |
1.2 |
● |
● |
SNGN120712 |
12.7 |
12.7 |
7.94 |
1.2 |
● |
● |
SNGN120716 |
12.7 |
12.7 |
7.94 |
1.6 |
● |
● |
SNGN150716 |
15.875 |
15.875 |
7.94 |
1.6 |
● |
● |
SNGN201020 |
20 |
20 |
10 |
2 |
● |
|
4.Application Case
PCBN Inserts |
Workpiece Details |
||
Insert Model |
SNMN |
Component |
Raceway and End Surface |
Cutting Type |
Dry Cutting |
Materials |
42CrMo4 |
Process |
Finishing |
Hardness |
HRC47-55 |
Cutting Data |
Compared with the ceramic cutters |
||
Vc（m/min） |
110 |
Insert Materials |
Tool Life |
Ap(mm) |
0.5 |
Halnn BN-S200 |
8 |
Fr（mm/r) |
0.45 |
Ceramic Cutters |
1 |

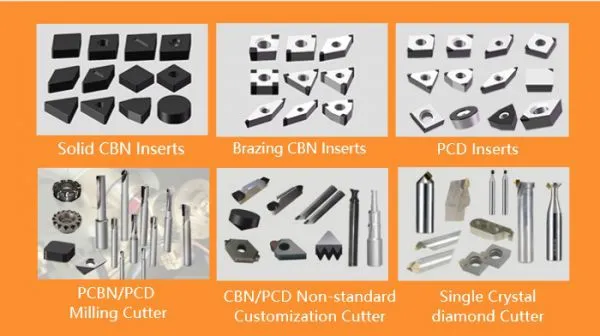

5. Pictures of CBN Turning Inserts
6.Our company
Henan halnn tools is a professional large-scale manufacturer of all types of diamond tools and glass cutters,integrating development,production and trading together.Our main products include PCD,CBN,PCBN tools,glass cutters and related products.
