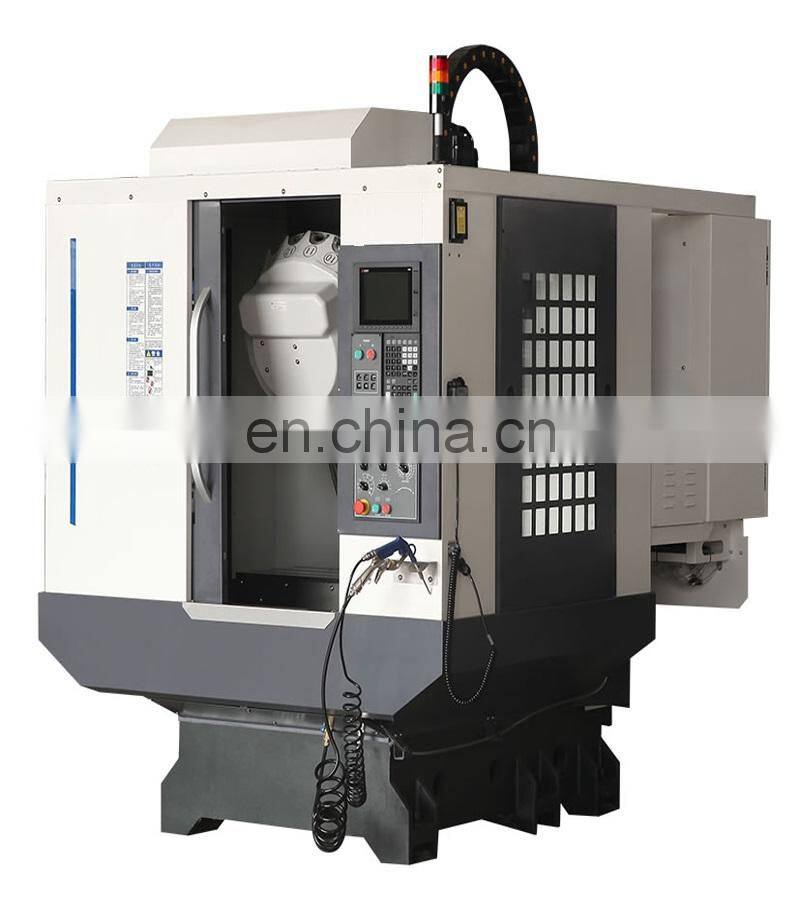

3 Axis Vertical Drilling and Milling Machine Center

3 Axis Vertical Drilling and Milling Machine Center thumbnail-1
3 Axis Vertical Drilling and Milling Machine Center thumbnail-2
3 Axis Vertical Drilling and Milling Machine Center thumbnail-3
3 Axis Vertical Drilling and Milling Machine Center photo-1
3 Axis Vertical Drilling and Milling Machine Center photo-2
3 Axis Vertical Drilling and Milling Machine Center photo-3
US$ 35,000 - 35,000 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
SCHMITTECH
Place of Origin:
Beijing, China
Type:
Vertical
Contact Supplier Request Quote Chat Now
Machining Center Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SCHMITTECH
Place of Origin Beijing, China
Type Vertical
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 13 Month
Weight 3000KG
Dimension(L*W*H) 2330*1800*2500
Voltage 380
Condition New
Power(W) 3.7KW
Product Description

Product Application

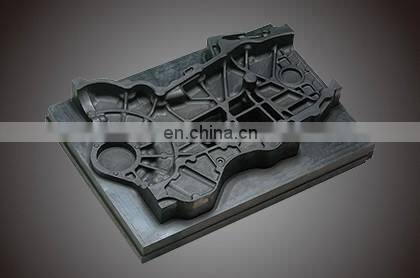

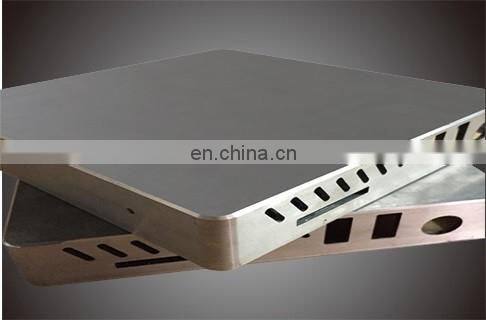

S5 drilling and milling machining center are mainly composed of light cutting, drilling, dental work, milling, especially suitable for metal, aluminum alloy and other small parts processing.

SPECIFICATIONS FOR S5  3 AXIS VERTICAL MILLING MACHINE

Table
Table size
mm
650x400
Max. load
KG
250
T-slot
mm
3-14*10/14*100*3
X/Y/Z
X/Y/Z  Travel
mm
500/400/300



Spindle
the distance between spindle nose to table surface
mm
450-150
speed (Max)
rpm
20000
Power
kw
3.7
Spindle max.output torque
Nm
11.7



Tool changer
Capacity
pcs
21
Type
server type
Max. length of tool (incl.tool holder)
mm
250
Max. weight of tool
kg
2
the time of tool change
sec
1.8


X/Y/Z  axis
machining feed speed
m/min
1-24
rapid speed
m/min
48
position accuracy
m/min
48
repeat position accurary
m/min
48
Controller
controller brand
Mitsubishi  or
Fanuc 0i-MF(5)
Diamension
Diamension
mm
2330x1800x2500
Total weight
Total weight
kg
3000

Main Features

1) Low the mitsubishi M80B/Fanuc0i - MF high-speed nc system and servo motor, stable efficiency, superior performance;

2) High rigid herringbone column, honeycomb type lathe bed, sliding saddle, workbench;By the finite element analysis of machine tool structure optimization;

3) Low inertia spindle design, library change knife fast accurate clamp arm, tool change time of 1.8 seconds, very suitable for parts milling and drilling work teeth;

4) High strength casting, good aging treatment, the base structure, high-speed displacement without vibration;

5) Transmission adopts the C3 level precision ball screw, high precision linear guide, XYZ express displacement of 48 m/min;

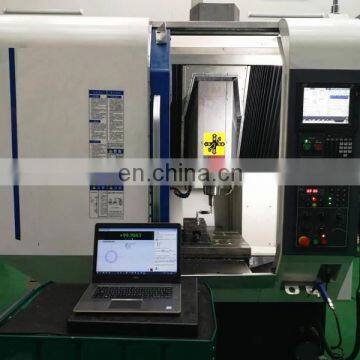

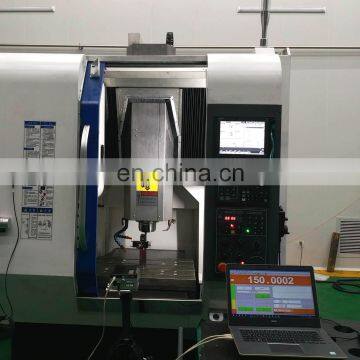

6) After laser triaxial testing machine tool, high positioning accuracy;

Certifications
Detailed Images




Machine Parts










Machine Parts







Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
280 (L) *220 (W) * 280 (D)
Weight
3.2 T

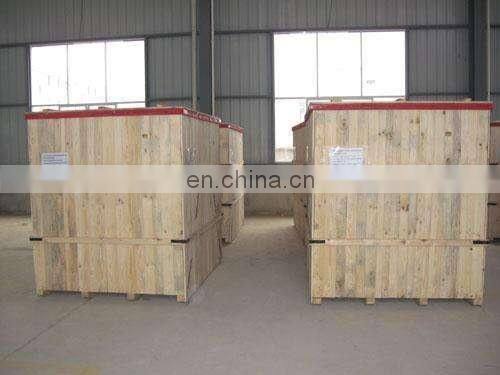

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

Electrical spindle

91.8% Response Rate

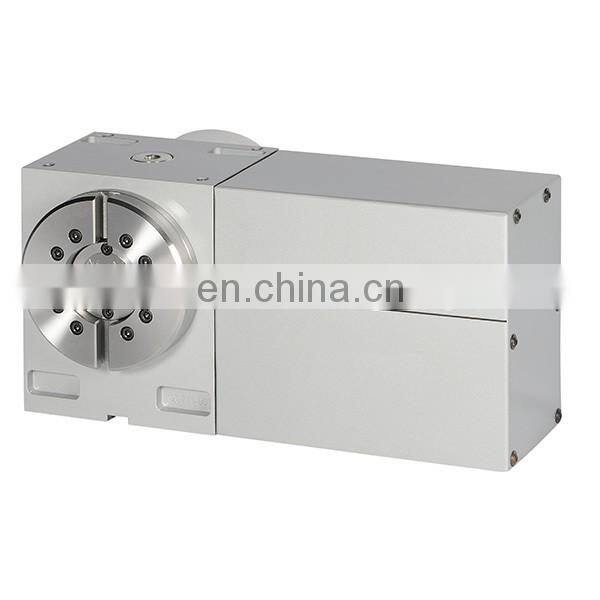

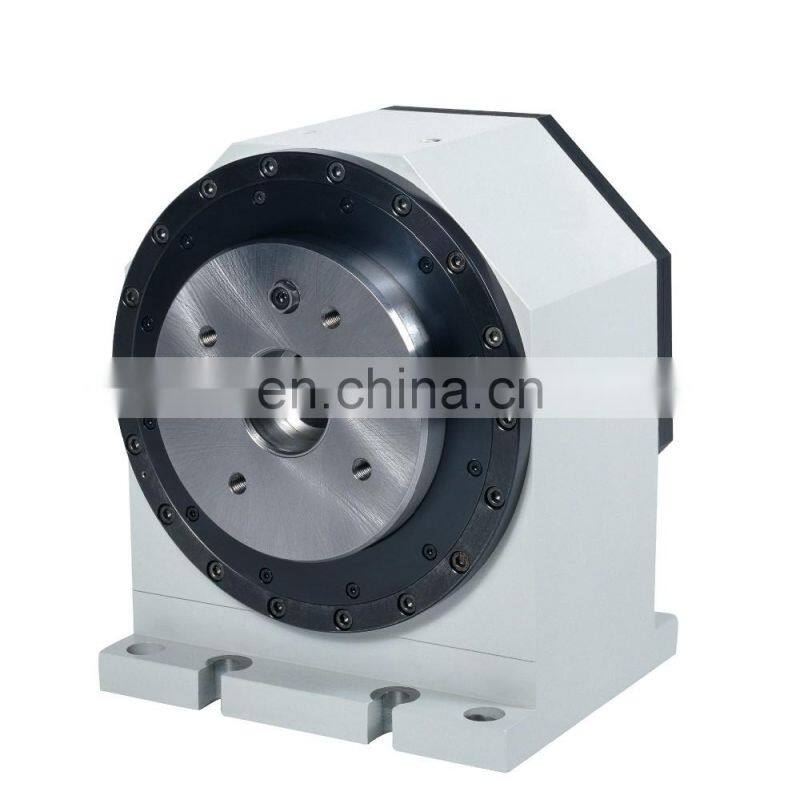

Rotary table
