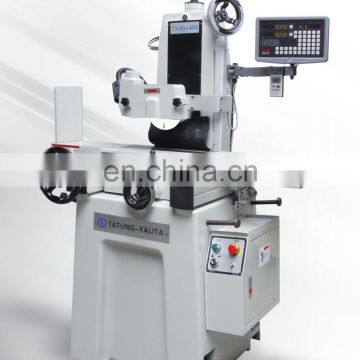

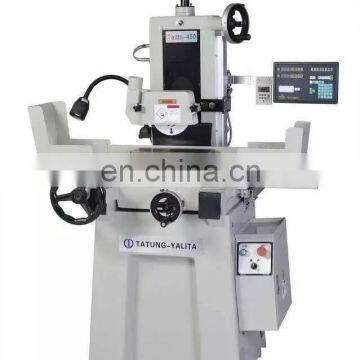

Vertical Spindle Surface Grinder

Features precision surface grinding machine

1.      Material and mechanical structure

The main casting parts, such as base,cradle,worktable,column are made of FC30 amd FCD35 material. It is a high strength and wear resistant cast irom. Together with super strength reinforcing ribs inside the parts, enforcing tempering for relieving stress, no any deform occurs in the parts so that high mechanical precision is guaranted.

2.      High strength column

With oversize H shaped steel structurem,featured with high rigidity, wide span slide rails, and precise processing and grinding on rails, the spindle does not vibrate and the peicison of the final products can be guaranteed.

3.      High precise spindle

V3 level motor and spindle are designed as an integral assembly. Spindle is made of SCM-21.

After primary hardening and tempering and primary processing, the spindle undergoes high frequency hardening treatment. After prcise grinding, the spindle is equipped Euro series ultra precise P4 level bevel ball/ roller bearings. Spindle end play is lower than 0.002mm. plus the sealing type greasing used, and the features of long service life, low noise in high rotational speed , no vibration, high quality working perfor mance ,high torque resistance, the spindle is fit for high precise shaping grinding.

4.      Automatic lubrication system

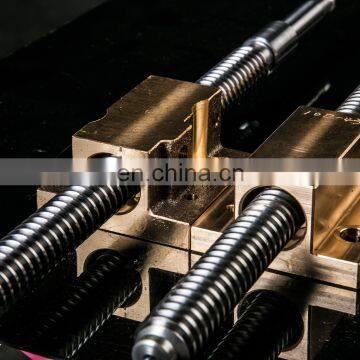

Electromagnetic pump is used to pump constantly the lubricating grease on all side rails, and up and down and back and forth screw rods. So as to improve wear resistance.

Grinding function

Unequal grinding   Step difference grinding   Split grinding   Molding grinding

Groove grinding    Blade grinding

Specifications

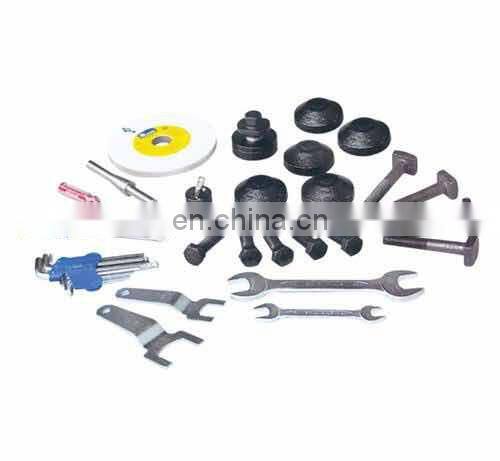

Standard Accessories

Optional Accessories

Standard package,wooden case.  We are located in Kunshan city, close to Shanghai port, it is very convenient to transport.

For the love of God we promise customers as follow:

1. Our product quality warranty is one year, except for man-made damage,and consumables such as grinding wheel and wire rope

except also.

2. We also have technical support and online service, If you have any problems with the use or technical problems above, we have a dedicated engineer to solve the problem or give professional advice in 24hours.

 MaAnShan Kuroda Intelligent Technology Co., Ltd.   is Taiwan Yalita set up a grinding machine manufacturing base in the mainland market. The factory area is 12,000 square meters. We can complete the entire production process from design, manufacture and assembly. Processing equipment includes six large machining centers and two imported horizontal boring and milling centers. It is one of the precision grinding machines and CNC machine tool manufacturing bases in mainland China. It has technology research and new product development. Jiangsu high-tech enterprises, private high-tech companies We have passed ISO9000 2008 quality management certification EU product safety CE certification We have obtained 34 national new patents. Our company has six large gantry machining centers and two imported horizontal boring and milling centers. Large-scale laser laser cutting machine 1, CNC bending machine, plate gold spray water lines. With an annual output of more than 1000 grinders, CNC milling machine more than 1,000 units of the scale, sheet metal processing 5000 sets of assembly processing capacity. Plant area of 12,000 square meters 30 years of grinding industry experience, to provide you with one-stop grinding solutions!

We mainly produce precision surface grinding machines, centelless grinding machines, machining centers, and engaving and milling
