Yashida-4080 surface grinding machine

Name: Yashida-4080 surface grinding machine
Brand: YASHIDA
Price: USD $17,800 - 25,700 / Unit

FOB Price

USD $17,800 - $25,700 / Unit

1 Unit(Min.Order)

Supply Ability 30 Unit / Units per Month
Port Shanghai port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	YASHIDA	Place of Origin:	Anhui, China	Type:	Surface Grinding Machine
Certification:	CE ISO	After-sales Service Provided:	No overseas service provided	Weight:	3600kg
Dimension(LWH):	360022802200	Voltage:	8KVA	Condition:	New
Power(W):	3.7kw	CNC or Not:	Normal	Max. Grinding Length:	800mm
Max. Grinding Diameter:	650mm

Product Description

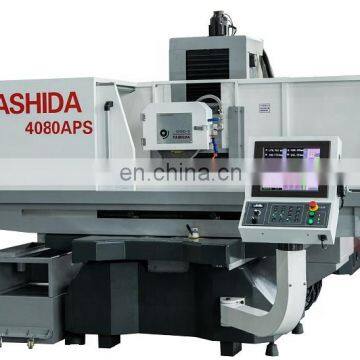

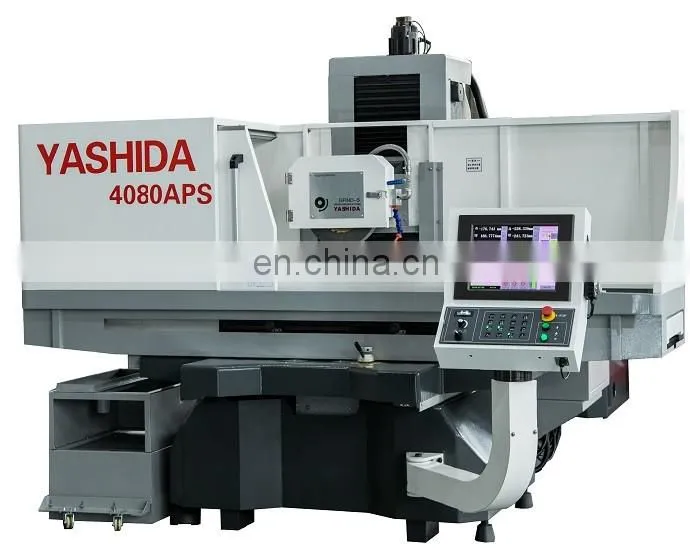

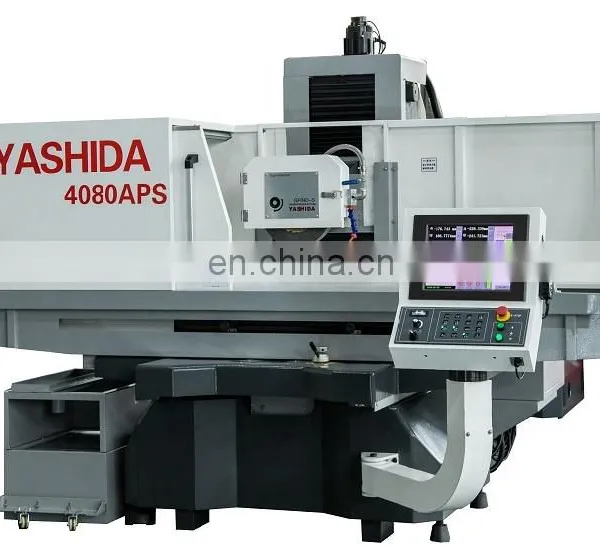

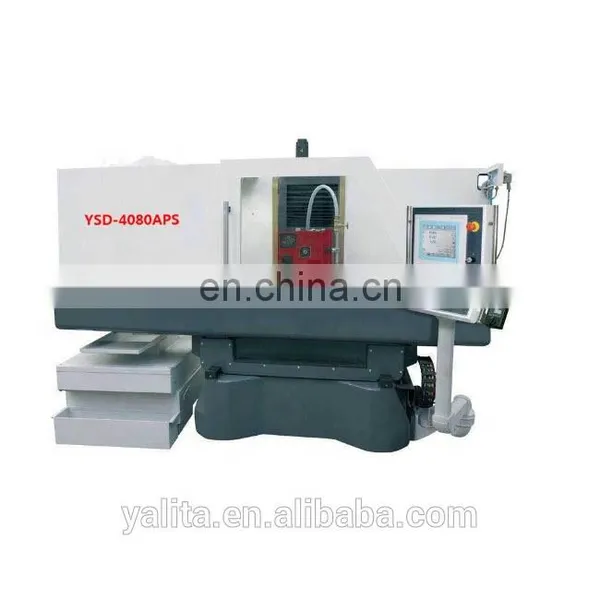

YASHIDA 4080APS AUTOMATIC GRINDER

The operating system combines more than 20 years' experience in production and tens of thousands of professional users, and conducts the second independent research and development, realizing multi-top automatic control, solving the mechanical movement of the early traditional automatic grinder only doing single rough machining, and realizing the operation of more than one person or no person. It improves the production efficiency and saves manpower while reducing production cost.

Item			unit	4080APS
Working range			mm	800x400x650
*Working maximum working surface (left and right front and rear)**			mm	850x450
Spindle to work table center			mm	650
Workbench carrying weight (including magnetic table)			KG	600
Workbench/left and right feed	T slot width (width * slot number)		MmxNO	3-18*80
	Hydraulic feed rate (average)		m/min	5-25
	MPG circle feed		mm	15
Saddle Feed forward and backward	MPG feed	Scale/division	mm	0.001/ 0.01/ 0.05
		Scale/circle	mm	0.1/ 1/ 5
	Automatic feed	Inching feed	mm	At will
		Continuous feed	mm/min	1000
	Fast forward speed		mm/min	50--1000
Column grinding head up and down	MPG feed	Scale/division	mm	0.001/ 0.01/ 0.1
		Scale/circle	mm	0.1/ 1/ 1
	Automatic feed rate	Rough grinding feed	mm	0.001---0.05
		Fine grinding feed	mm	0.001-0.01
	Fast feed up and down		mm/min	0--2000
Grinding wheel parameters	Dimensions (outer diameter x thickness x bore) standard		mm	350x35x127
	Spindle speed		r.p.m	200-1450
	Spindle diameter		mm	120
Motor	Spindle motor		KW	7.5HP
	Front and rear servo motor		KW	1.1
	Upper and down servo motor		KW	1.3

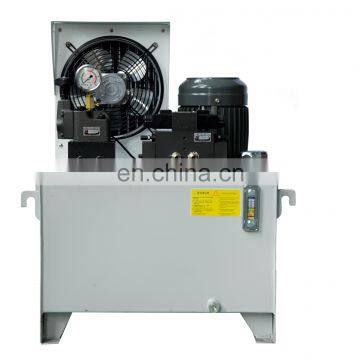

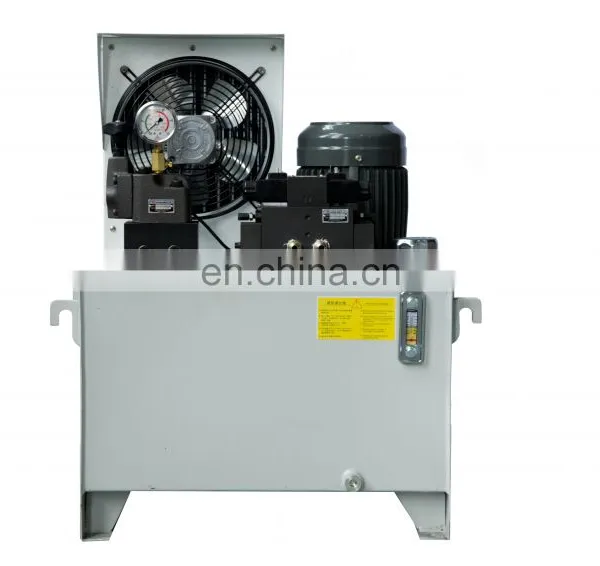

	Hydraulic motor		KW	2.2
	Flushing motor		KW	0.5
Machine work accuracy
Plane work accuracy 300:0.003mm		Surface roughness Ra:0.06
Power required by the power supply (accessories not include)			KVA	13
Shipping package size (length x width x height)			mm	2500x3700x2200
Machine net weight / gross weight (about)			KG	3800/4000

Main Features

1. Rich experience -- focusing on grinding field for 30 years, serving 10,000 customers nationwide.
2. High accuracy -- within 0.002mm of the equipment's spindle precision, and the grinding accuracy of the workpiece is stabilized at 0.003-0.004mm.
3. High capacity -- high capacity of single equipment, large number and complete types of equipment.
4. Long service life -- the special sheet metal protective cover can increase the service life of the guide rail of the grinder and protect the operator's physical and mental health.

Precision features

a. The flatness of the worktable 400*800 is within 3μ, the parallelism of the two grinding surfaces of the template can be up to 5μ, and the surface finish can reach 0.18μm.
b. Spindle rotation accuracy within 2μ.

Humanized design

Focus on customer,solve production process,reduce labor cost,realize one person and more machine operation.

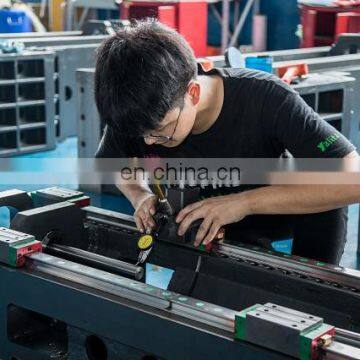

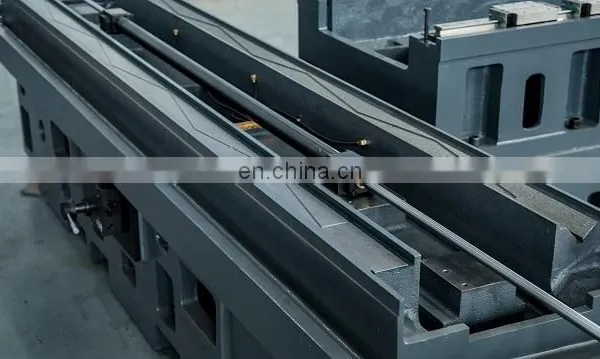

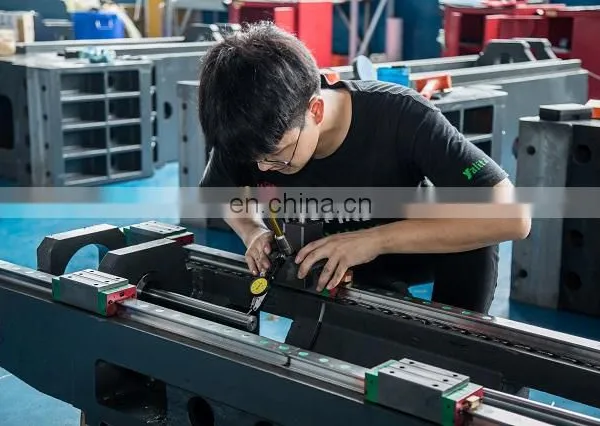

Complicated manual scraping and grinding

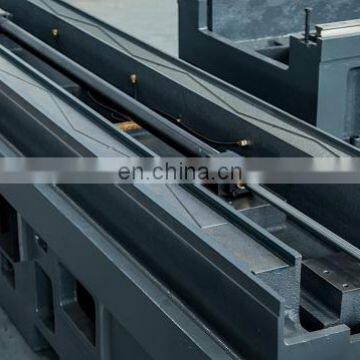

Precision shovel scrapes double V-axis guide rail and imported precise rooller wire rail.

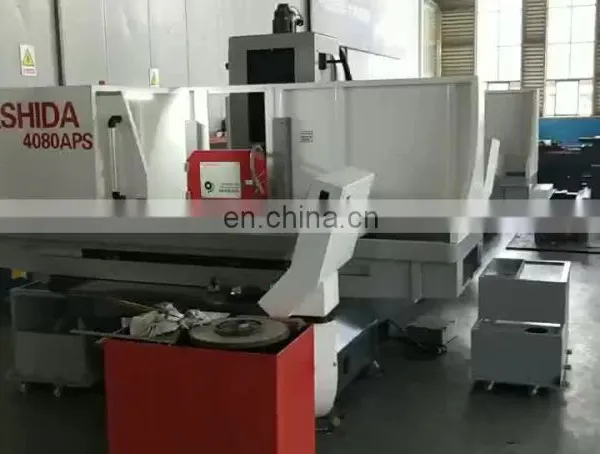

PRODUCT DISPLAY

Our Company

Company Profile

Established in January 2017, the registered capital is 10 million yuan. Its predecessor was Kunshan Risedian Precision Machinery Co., Ltd. Established a core parts R&D center in Taiwan, Kunshan Operation Center, and a standard manufacturing plant in Maanshan, Anhui. At present, the production base is in Maanshan, with a plant area of 12,000 square meters and a staff of 104.

Main business

The company is mainly engaged in the production, manufacture and sales of five major categories of manual grinding machines, centerless grinding machines, CNC grinding machines, high-speed washing machines and high-speed machining centers. The products are widely used in aerospace, automotive electronics, new energy and environmental protection. Equipment, military and other fields

Production capacity

After the project is put into production, the designed production capacity is 1000 grinding machines, 1000 CNC engraving and milling machines, and 5000 sets of sheet metal equipment processing capacity mainly cover East China .North China South China and overseas emerging markets. Currently serving more than 6,000 companies

Our company has six large gantry machining centers and two imported horizontal boring and milling centers. Large-scale laser laser cutting machine 1, CNC bending machine, plate gold spray water lines. With an annual output of more than 1000 grinders, CNC milling machine more than 1,000 units of the scale, sheet metal processing 5000 sets of assembly processing capacity. Plant area of 12,000 square meters 30 years of grinding industry experience, to provide you with one-stop grinding solutions!
We mainly produce precision surface grinding machines, centelless grinding machines, machining centers, and engaving and milling machine.

Our Service

Pre-Sales Service

For the love of God we promise customers as follow:
Our product quality warranty is one year, except for man-made damage,and consumables such as grinding wheel and wire rope except also.

After-Sales Service

We also have technical support and online service, If you have any problems with the use or technical problems above, we have a dedicated engineer to solve the problem or give professional advice in 24hours.

Packing & Delivery

PACKAGING
Size	250037002200mm
Weight	3800kg
Packaging Details	Standard package,wooden case. We are located in Kunshan city, close to Shanghai port, it is very convenient to transport.

FAQ

Q: Why choose Kuroda?

A: 1. In the field of grinding, CNC grinding is a leading position in China. In the field of forming grinding, we have been adhering to the past 29 years and serving more than 5,400 customers.

2.Products from the development, design, manufacture, assembly of the entire production process are carried out between plants, with a complete production chain. Is your most reliable guarantee.

Q: Does the standard accessories are included in the price?

A: Yes, all of our prices include standard accessories and also taxes include.

Q: Does 4080 has two axis auto?

A: NO,4080 only with three axes automatic, left and right hydraulic pressure, both front and rear servomotors.

If you have another question, pls feel free to contact us as below:

YASHIDA 525 Horizontal grinder

91.8% Response Rate

YASHIDA V8 machine center

91.8% Response Rate

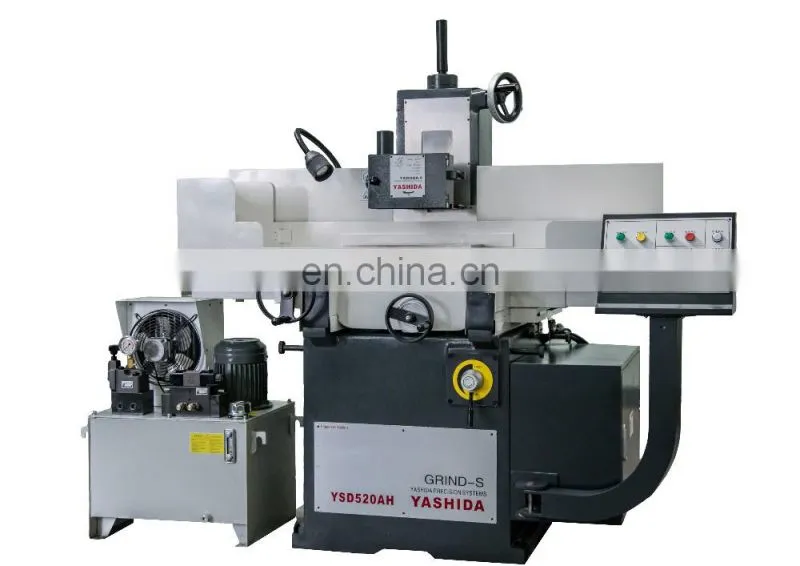

YASHIDA 520AH grinder
