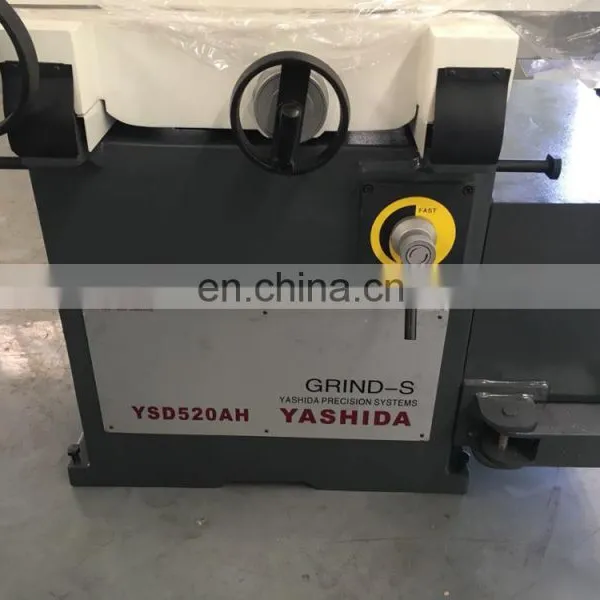

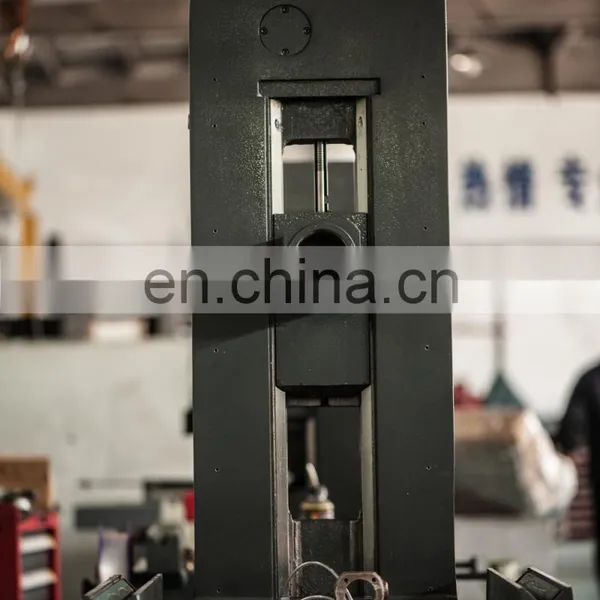

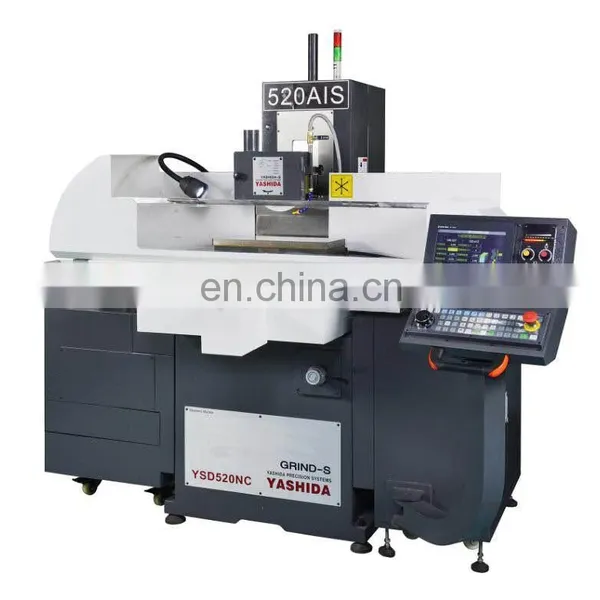

Help CenterYashida 520 Hydraulic Automatic Grinding Machine
Related Products
-
YASHIDA High Precision Auto GrinderUS$ 15,000 - 31,050MOQ: 1 Set -
Two Axis Surface Grinding MachineUS$ 6,700 - 13,034MOQ: 1 Set
-
3 Axis Automatic Surface GrinderUS$ 11,000 - 21,430MOQ: 1 Set
-
450AH Surface Grinding MachineUS$ 5,500 - 11,000MOQ: 1
-
YASHIDA 520AH Surface Two Axis Automatic GrinderUS$ 6,700 - 13,240MOQ: 1 Set
Specifications
| General Capacity | unit | 520AH | ||
| Workability | Working area of table(L*W) | mm | 500*200 | |
| Stroke of table(Transverse*Longitudinal) | mm | 530*210 | ||
| Maximum height | mm | 357.59 | ||
| Distance from table surface to spindle center | mm | 450*200 | ||
| Maximu, capacity of table | kg | 100 inluding weight of disc | ||
| Table | T-shaped groove | mm*no | 17*1 | |
| Transverse average feed speed | m/min | 0.1-20 | ||
| feed per rotation of handwheel | mm | 100 | ||
| Longitudinal feeding | Manual feeding | Handwheel per revolution | mm | 5.0 |
| dial on handwheel | mm | 0.02 | ||
| Automatic feeding | Intermittent feeding | mm | 0.1-5.0 | |
| Continuous feed rate | m/min | 0.15-0.4 | ||
| Vetrical feeding | Automatic Knife feed | mm | NA | |
| Manual micro feed | mm | 0.0001/0.001/0.005 | ||
| feed per rotation of handwheel | mm | 0.014/.01/1mm | ||
| Non-spaked grinding | N.A | |||
| Vertical rapid feeding | mm/mm | 600 | ||
| Motor | Wheel size(dia*width*bore) | mm/mm | Φ>205*6-20*Φ31.75 | |
| Spindle speeds(50/60HZ) | min-1 | 3000/3600 | ||
| Grinding wheel | Spindle motor | Kw/P | 1.5/2 | |
| Hydraulic pump | Kw/p | 1.5/2 | ||
| Power | Power capacity | KVA | 2.5/3 | |
| Packing size | Length*width*height | mm | 1800*1452*2100 | |
| Weight | Weight | kg | 1600 | |
Standard Accessories
| Grinding Wheel | 1pc |
| Flange | 1set |
| Balance bar | 1pc |
| Diamond Dresser with a base | each 1pc |
| Levelling screws with blocks | 5set |
| Eye ring | 4pc |
| Tool box with adjusting tools | 1set |
| Ubricating oil | 2.5L |
| Halogen lamp | 1pc |
| operation manual | 1copy |
Standard package,wooden case. We are located in Kunshan city, close to Shanghai port, it is very convenient to transport.
For the love of God we promise customers as follow:
1. Our product quality warranty is one year, except for man-made damage,and consumables such as grinding wheel and wire rope
except also.
2. We also have technical support and online service, If you have any problems with the use or technical problems above, we have a dedicated engineer to solve the problem or give professional advice in 24hours.
MaAnShan Kuroda Intelligent Technology Co., Ltd. is Taiwan Yalita set up a grinding machine manufacturing base in the mainland market. The factory area is 12,000 square meters. We can complete the entire production process from design, manufacture and assembly. Processing equipment includes six large machining centers and two imported horizontal boring and milling centers. It is one of the precision grinding machines and CNC machine tool manufacturing bases in mainland China. It has technology research and new product development. Jiangsu high-tech enterprises, private high-tech companies We have passed ISO9000 2008 quality management certification EU product safety CE certification We have obtained 34 national new patents. Our company has six large gantry machining centers and two imported horizontal boring and milling centers. Large-scale laser laser cutting machine 1, CNC bending machine, plate gold spray water lines. With an annual output of more than 1000 grinders, CNC milling machine more than 1,000 units of the scale, sheet metal processing 5000 sets of assembly processing capacity. Plant area of 12,000 square meters 30 years of grinding industry experience, to provide you with one-stop grinding solutions!
We mainly produce precision surface grinding machines, centelless grinding machines, machining centers, and engaving and milling
Why choose Kuroda?
1. In the field of grinding, CNC grinding is a leading position in China. In the field of forming grinding, we have been adhering to the past 29 years and serving more than 5,400 customers.
2.Products from the development, design, manufacture, assembly of the entire production process are carried out between plants, with a complete production chain. Is your most reliable guarantee.
Does Yalita has an manual grinder model as Well?
No, we do not have.
Does the standard accessories are included in the price?
Yes, all of our prices include standard accessories and also taxes include.
How does the product guarantee machining accuracy?
The concept of traditional scratching technology We have always insisted on the traditional processing technology, we do not pursue the quantity, strictly grasp the quality. Every machine is carefully designed. Today we spend an hour and the machine can serve you for more than a year.
