3 Axis Automatic Surface Grinder

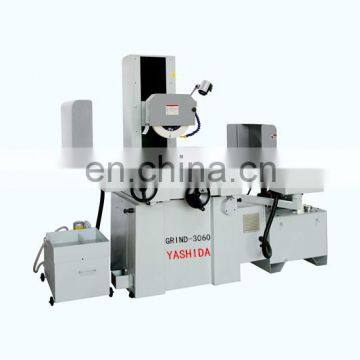

3 Axis Automatic Surface Grinder photo-1

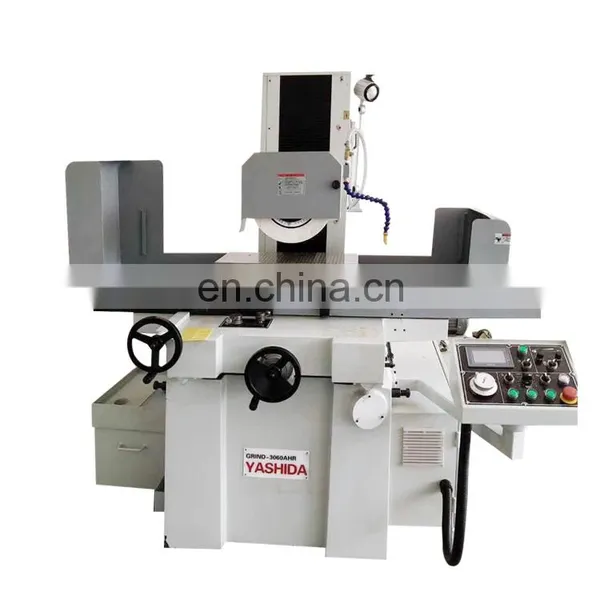

3 Axis Automatic Surface Grinder photo-2

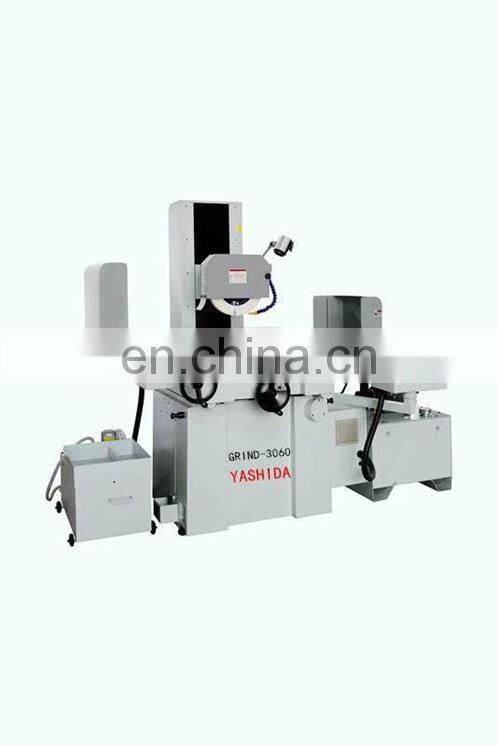

3 Axis Automatic Surface Grinder photo-3

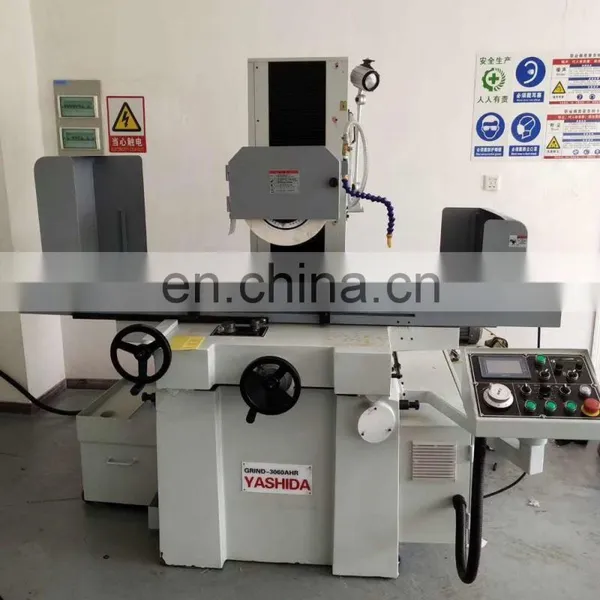

3 Axis Automatic Surface Grinder photo-4
US$ 11,000 - 21,430 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yashida
Place of Origin:
Anhui, China
Type:
Surface Grinding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Yashida
Place of Origin Anhui, China
Type Surface Grinding Machine
Certification CE ISO
After-sales Service Provided Overseas third-party support available
Weight 1950KG
Dimension(L*W*H) 3050*2200*1900 mm
Voltage 380V
Condition New
Power(W) 5.4HP
CNC or Not Normal
Max. Grinding Length 660 mm
Max. Grinding Diameter 540 mm







 Feature introduce:

1.     High rigidity casting body

The main castings such as the main base, worktable, slide, column and machine head are made of high-grade cast iron. Through finite element analysis and calculation, the engineering requirements for rigidity multiplication and quality are achieved. Each casting is subjected to internal stress elimination treatment. To ensure long-term deformation, and excellent bending and torsional stress, to ensure long-term machine tool grinding accuracy.

2.     Independent hydraulic system

Single-cylinder drive, with independent hydraulic system design, make the workbench with 7-25m/min multi-stage adjustable speed and low vibration characteristics, suitable for multi-purpose processing, use high quality oil seal made in Japan to ensure sliding Smooth and long life

3.     High-precision ballistic spindle

Each grinding machine of our company adopts the design of Taiwan's original imported ballistic spindle, with CP4 Japanese original NSK precision angled ball bearing, V3 low vibration motor and dynamic balance, installed on the headstock to ensure the spindle The yaw control is within 0.002mm.

4.     Automatic lubrication system

The use of a circulating central lubrication device provides optimum lubrication of the X, Y, and Z axis drive screws and sliding surfaces, and can recycle some of the non-recyclable waste oil, filter, and recycle lubrication. This is not only environmentally friendly, but also saves lubrication. The unnecessary expenditure of oil.

5.     PLC electrical control system

LCD touch screen, soft key panel, various grinding conditions set at a glance, touch screen set a variety of grinding methods, simple and convenient operation. Easy to learn and understand, without professional training, its parameters are stored in flash memory, and there is no problem of data loss due to blackout.

6.     Graphical operation panel

The operation panel box is fixed in design, the control is completely centralized on the operation panel, and it is ergonomic; the operation panel is of a graphic design, the function is clear at a glance, and the operation is easy to learn.





 Parameter table

specifictions

describe

unit

YSD-306AHD

Work abality

Working range

mm

600*300

Max movement

mm

660

Before and after the maximum amount of movement

Without Wallboard

mm

370

With Wallboard

mm

340

Working table

The maximum distance from the work surface to the spindle center

mm

540

maximum capacity of table

kg

420

Work Table T shape slot

Mm*n

14*1

Work table speed

M/min

5-23

Table guide



V- Smooth rail

 Feed before and after

Front and rear handwheels

One frame

mm

0.02

One circle

mm

4

Grinding wheel

Gringding wheel size

mm

355*(20-40)*127

Spindle speed

50HZ

R.p.m

1450

60HZ

R.p.m

1740

Feed up and down

Upper and lower handwheels

One frame

mm

0.01

1turn

mm

2

Automatic feed

mm

0.001-0.04

motor

Spindle motor

HP*P

5*4

Hydraulic motor

HP*P

2*4

Vacuum cleaner motor

HP*P

1/2*2

Flush motor

HP*P

1/8*2

Up and down drive motor

W

400

Front and rear drive motors

W

40

Size

Machine height

mm

1900

Floor area

mm

2200*3050

Machine weight

net weight

kg

1750

Gross weight

kg

1950







 Standard accessories



Grinding wheel

1 piece

Wheel flange and dial nut

1set

Wheel balancer

1piece

Diamond Dresser and Diamond Pen

Each one piece

Horizontal adjustment screw and base seat

5sets

Eye ring

4sets

Tool box and tool

1unit

lubricating oil

2.5L

Halogen       lamp



1set

Operation    manual

1paper

Packaging & Shipping

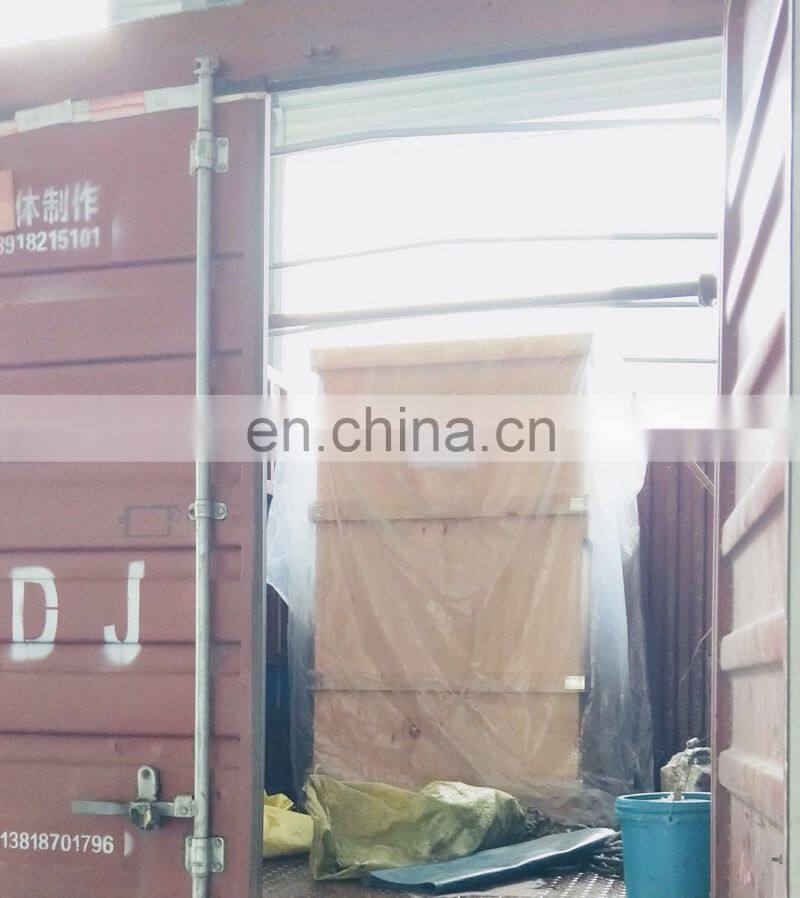

Standard package,wooden case.  We are located in Kunshan city, close to Shanghai port, it is very convenient to transport.

3 axis automatic surface grinder3 axis automatic surface grinder

Our Services

 For the love of God we promise customers as follow:

1. Our product quality warranty is one year, except for man-made damage,and consumables such as grinding wheel and wire rope

except also.

2. We also have technical support and online service, If you have any problems with the use or technical problems above, we have a dedicated engineer to solve the problem or give professional advice in 24hours.


3 axis automatic surface grinder
