US$ 11,400 - 22,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Stute
Place of Origin:
Anhui, China
Type:
Cylindrical Grinding Machine
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Stute
Place of Origin Anhui, China
Type Cylindrical Grinding Machine
Certification CE ISO
After-sales Service Provided Overseas third-party support available
Weight 1750KG
Dimension(L*W*H) 1800*1400*1450mm
Voltage 380V
Condition New
Power(W) 7.5kw
CNC or Not Normal
Max. Grinding Length 1000mm
Max. Grinding Diameter 1mm-40mm
Product Description

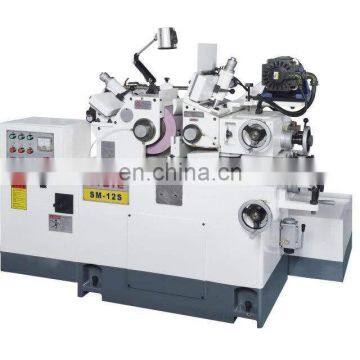

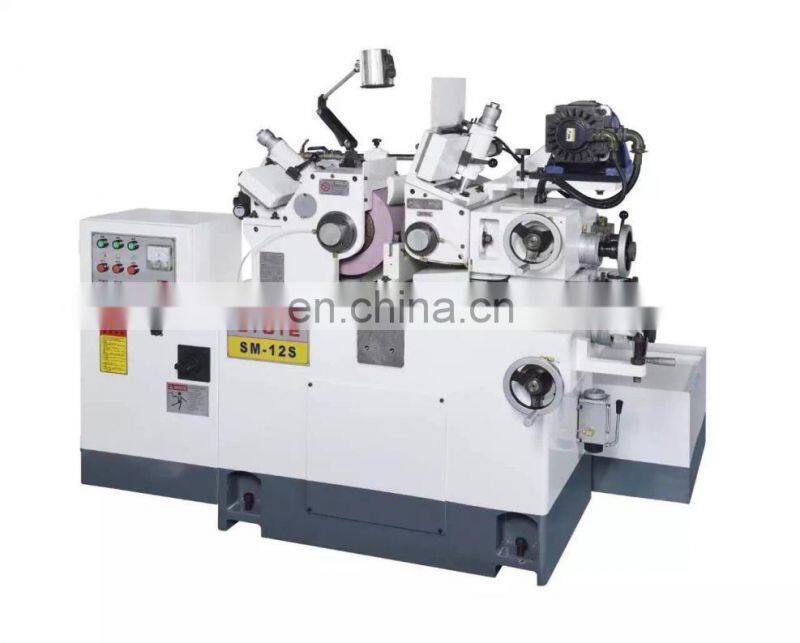

SM-12S PRECISION CENTERLESS GRINDER


Vibrate to send to workpiece in the machine,and pull out the workpiece form machine front by mechanical device.
Automaticall unloader for machine tool can be designed according to the workpiece diameter and lenght.
Small diameter automatically workpiece unplader.

Ltems
SM-12
Grinding range(diameter)
Φ1mm-Φ40mm
Grinding wheel size
Φ305*150*120mm
Regulating wheel size
Φ205*150*90mm
Grinding wheel speed
1950RPM
Regulating wheel motor
0-320RPM
Grinding wheel motor
7.5HP
Regualting wheel motor
2.0KW
Hydraulic pump motor
1HP
Coolant pump motor
1/8HP
Upper slide feed graduation
3.5 mm per revolution      0.02mm/scale
Upper silde micro feed graduation
0.1mm per revolution         0.001mm/scale
Lower silder feed graduation
7mm per revolution            0.05mm/scale
lower slider micro feed graduation
0.2mm per revolution          0.001mm/scale
Dressing device graduation
1.5mm per revoltion          0.01mm/scale
Regulating wheel title angle
±5°--- -3°
Regulating wheel swivel angle
±5°

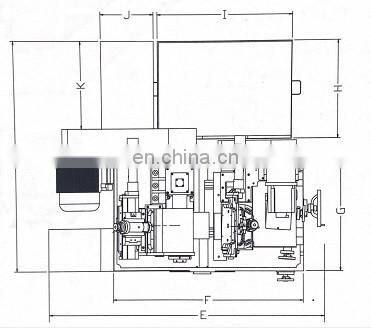

Machine dimensions
1800*1400*1450mm
Package dimensions
2350*1650*1770mm
Net weight
1750kg
Gross Weight
1900kg
Standard accessories
Optional accessories
1. Grinding wheel flange
2. Regulation wheel flange
3. Diamond tool
4. Work lamp
5. Blades wheel template
6. Flange extractor
7. Thrufeed standard work rest and blade
8. Infeed standard work rest and blande
9. Tool box and tools
10. Hydraulic tank
11. Coolant tank with pump
12. Standar electrical equipmen
1. Vibratory parts feeder
2. Wheel balancing base
3. Manual parts feeder for infeed grinding
4. Work gigctor device
5. Hydrocyclone coolant filtering unit
6.Paper filter
7. Magnetic coolant separator
8. Feed-through device(plunge)
9. Feed-through device(belt)
10. Long workpieces received feeding device
11. Oil mist separator device
12. Precision oil temperature cooling device

MACHINE CHARACTERISTICS

1,Operation human setting,manipulation easy
2,Servo motor drive and can fine-tune the feed
3,Can be programmed control,precision grinding feed set
4,Effectively adjust the time savings,increased productivity
5,Can be appended automatically trimmed and correction
function(optional)
6,Can install cantilever gantry robots,unmanned grinding

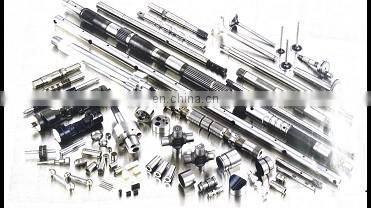

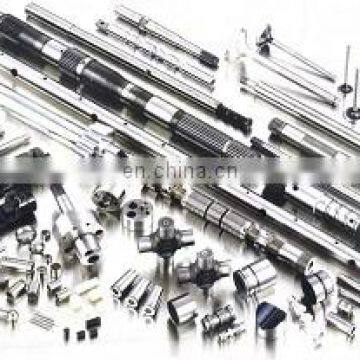

WORKPIECE EXAMPLE

1,Automatic shock absorber

2,Fax & photocopy machine axes

3,Mini motor sindie

4,Punch,thimble,ejector sleeve and mould dccesory

5,Measuring precision grinding of the plug gauge pump crank

6,Precision grinding of bearing outside diameter cross universal joint.

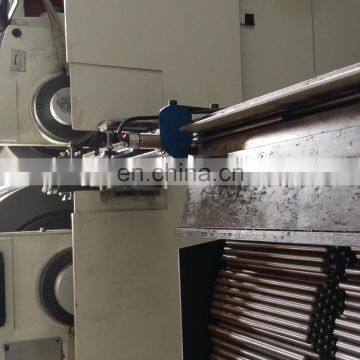

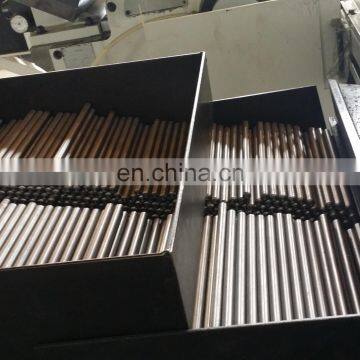

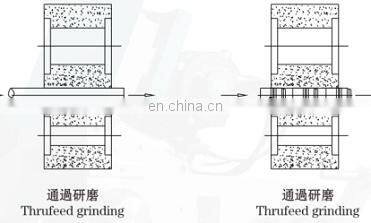

THRUFEED  GRIANDING

Pass through grinding automaticly unload workpiece device is designed for pipe,pole and pass through grinding,which is sutied to do a great deal of workpiece to grin.Full-automatic device decraese manufacturing cist but increase productivity ratio.

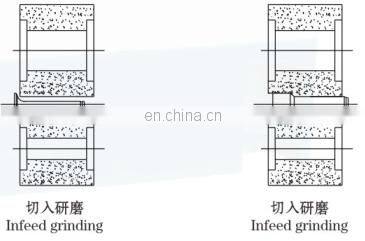

INDEED GRINDING

The supporting plate is provided with axial positioning fulcrum, the workpiece is supported on the supporting plate at a certain position, and the grinding wheel or the guide wheel is used for grinding. Used for grinding workpiece with shaft shoulder or convex table as well as cone, ball or other rotating workpiece.

Our Company

Company Profile

Established in January 2017, the registered capital is 10 million yuan. Its predecessor was Kunshan Risedian Precision Machinery Co., Ltd. Established a core parts R&D center in Taiwan, Kunshan Operation Center, and a standard manufacturing plant in Maanshan, Anhui. At present, the production base is in Maanshan, with a plant area of 12,000 square meters and a staff of 104.

Main business

The company is mainly engaged in the production, manufacture and sales of five major categories of manual grinding machines, centerless grinding machines, CNC grinding machines, high-speed washing machines and high-speed machining centers. The products are widely used in aerospace, automotive electronics, new energy and environmental protection. Equipment, military and other fields

Production capacity

After the project is put into production, the designed production capacity is 1000 grinding machines, 1000 CNC engraving and milling machines, and 5000 sets of sheet metal equipment processing capacity mainly cover East China .North China South China and overseas emerging markets. Currently serving more than 6,000 companies

Our company has six large gantry machining centers and two imported horizontal boring and milling centers. Large-scale laser laser cutting machine 1, CNC bending machine, plate gold spray water lines. With an annual output of more than 1000 grinders, CNC milling machine more than 1,000 units of the scale, sheet metal processing 5000 sets of assembly processing capacity. Plant area of 12,000 square meters 30 years of grinding industry experience, to provide you with one-stop grinding solutions!
We mainly produce precision surface grinding machines, centelless grinding machines, machining centers, and engaving and milling machine.


Our Service

Pre-Sales Service

For the love of God we promise customers as follow:
Our product quality warranty is one year, except for man-made damage,and consumables such as grinding wheel and wire rope except also.

After-Sales Service

We also have technical support and online service, If you have any problems with the use or technical problems above, we have a dedicated engineer to solve the problem or give professional advice in 24hours.

Packing & Delivery

PACKAGING
Size
2350*1650*1770mm
Weight
1900KG

Packaging Details
Standard package,wooden case. We are located in Kunshan city, close to Shanghai port, it is very convenient to transport.
Customer Photo


CUSTOMER VISIT

Customers come to our processing base to know products and negotiate with us.

SALES NETWORK

Our company has more than 50 distributor in China, covering 13 provinces,the foreign business covers the whole world.It involves 16 countries and regions,including Southeast Asia market,European and American markets.

Related Products

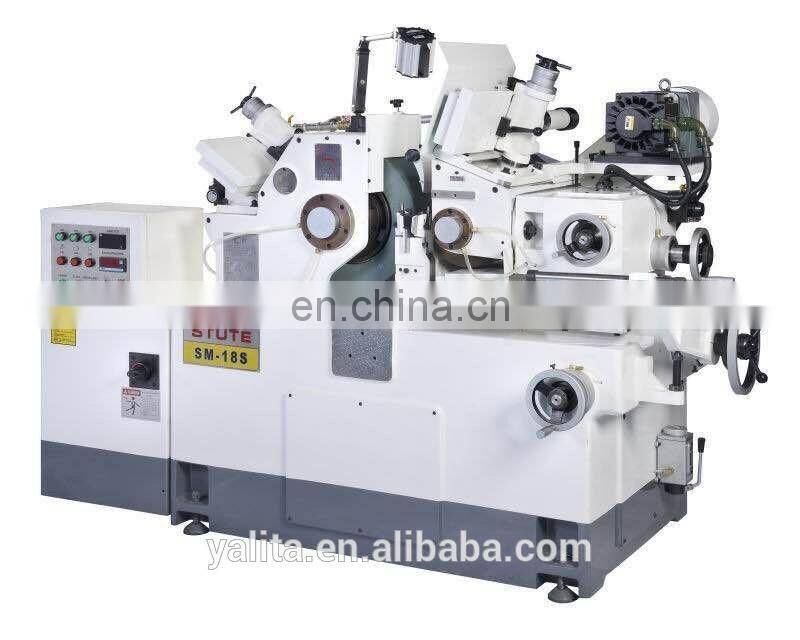

SM18S Centerless grinder
