YASHIDA V8 Machine Center

YASHIDA V8 Machine Center photo-1
YASHIDA V8 Machine Center photo-2
YASHIDA V8 Machine Center photo-3
YASHIDA V8 Machine Center photo-4

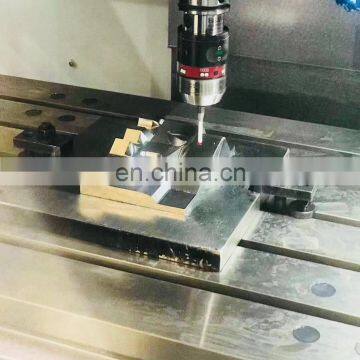

YASHIDA V8 Machine Center photo-5

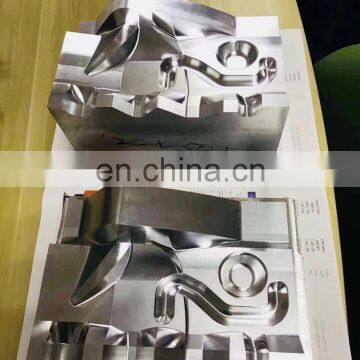

YASHIDA V8 Machine Center photo-6

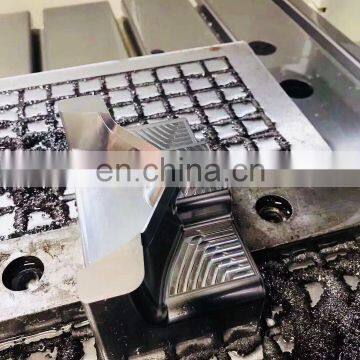

YASHIDA V8 Machine Center photo-7
US$ 23,000 - 46,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
YASHIDA
Place of Origin:
Jiangsu, China
Type:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name YASHIDA
Place of Origin Jiangsu, China
Type Vertical
Certification ISO CE
Warranty 1 Year
Weight 7000kg
Dimension(L*W*H) 2700*2300*2600mm
Voltage 380V
Condition New
Power(W) 7.5kw
Products Show

YASHIDA V8 VERTICAL MACHINE CENTER

Machine features

1.Fully cover protection
2. X/Y/Z roller track
3.Cutting coolant system
4.Automatic centralized lubrication system
5.Spindle blowing device
Product Description
SPECIFICATIONS
UNIT
YASHIDA V8


Worktable
Table size
mm
800x500
T slot(number/width/distance of T-slot)
mm
5-18-80
Max. load of worktable
kg
600

Machining range
Longitudinal travel
mm
850
Cross travel
mm
500
Vertical travel
mm
550


          Spindle
Spindle nose to table surface
mm
150-650
Spidle axis to column surface
mm
545
Spindle taper
--
BT40
Speed Range
rpm
OPT12000

Feed
Cuttiing feed X/Y/Z
mm / min
1-10000
Rapid feed X/Y/Z
m / min
40/40/30

Tool magazine
Tool magazine capacity
piece
24
Tool magazine type
--
Carousel
Tool changing time (tip to tip)
s
3

Accuracy
Positioning accuracy
mm
±0.004
Repeat positioning accuracy
mm
±0.004

       Others
Air pressure
Mpa
5---6
Overall dimension
mm
2700x2300x2600
Machine weight
kg
4800kg
Standard Accessories
1. Milling chuck group of BT40 handle                       1set
5.6-inch flat nose pliers                                                         1pc
2. Combined pressure plate                                         1set
6. The oil cooler                                                                       1pc
3. The unloading knife holder                                         1pc
7.24 BD knife library                                                             1set
4. Tools and toolbox                                                       1set
8.Back row spiral chip removal                                            1pc

Attention to precision and stability of the production concept

X, Z axis integral design VS separate design --- precision more stable.

High - rigidity 6 slider VS4 slider - more contact surface

Imported advanced equipment manufacturing quality, the whole process can be traced back to a few advanced manufacturing plants in east China!

Related Products
YASHIDA V8 machine center



          91.2% Response Rate

YASHIDA525 horizontal grinder


           95.8% Response Rate

            YASHIDA 650 CNC

              milling machine

                92.8% Response Rate

Our Company

Company Profile

Established in January 2017, the registered capital is 10 million yuan. Its predecessor was Kunshan Risedian Precision Machinery Co., Ltd. Established a core parts R&D center in Taiwan, Kunshan Operation Center, and a standard manufacturing plant in Maanshan, Anhui. At present, the production base is in Maanshan, with a plant area of 12,000 square meters and a staff of 104.

Main business

The company is mainly engaged in the production, manufacture and sales of five major categories of manual grinding machines, centerless grinding machines, CNC grinding machines, high-speed washing machines and high-speed machining centers. The products are widely used in aerospace, automotive electronics, new energy and environmental protection. Equipment, military and other fields

Production capacity

After the project is put into production, the designed production capacity is 1000 grinding machines, 1000 CNC engraving and milling machines, and 5000 sets of sheet metal equipment processing capacity mainly cover East China .North China South China and overseas emerging markets. Currently serving more than 6,000 companies

Our company has six large gantry machining centers and two imported horizontal boring and milling centers. Large-scale laser laser cutting machine 1, CNC bending machine, plate gold spray water lines. With an annual output of more than 1000 grinders, CNC milling machine more than 1,000 units of the scale, sheet metal processing 5000 sets of assembly processing capacity. Plant area of 12,000 square meters 30 years of grinding industry experience, to provide you with one-stop grinding solutions!
We mainly produce precision surface grinding machines, centelless grinding machines, machining centers, and engaving and milling machine.


Packing & Delivery

PACKAGING
Size
2700(L) * 2300(W) * 2600 (H)
Weight
4800kg

Packaging Details
Standard package,wooden case. We are located in Kunshan city, close to Shanghai port, it is very convenient to transport.
FAQ

Q1:  Why choose Kuroda?

A: 1. In the field of grinding, CNC grinding is a leading position in China. In the field of forming grinding, we have been adhering to the past 29 years and serving more than 5,400 customers.

     2.Products from the development, design, manufacture, assembly of the entire production process are carried out between plants, with a complete production chain. Is your most reliable guarantee.

Q2: Does Yalita has an automatic grinder model as Well?

A :  Yes, in order to ensure high precision, most of our small-size grinders are manual grinders, but they can also be changed to automatic or even CNC grinders according to the needs of customers, but the price is not the same.

Q3: Does the standard accessories are included in the price?

A:  Yes, all of our prices include standard accessories and also taxes include.

Q4: How does the product guarantee machining accuracy?

A: The concept of traditional scratching technology We have always insisted on the traditional processing technology, we do not pursue the quantity, strictly grasp the quality. Every machine is carefully designed. Today we spend an hour and the machine can serve you for more than a year.
