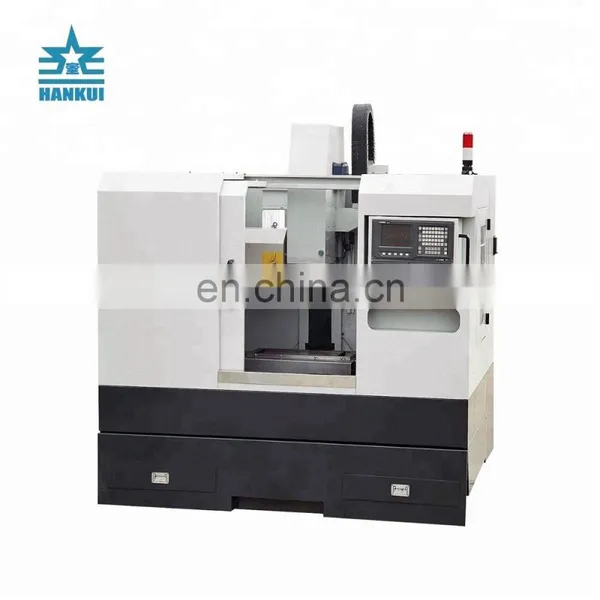

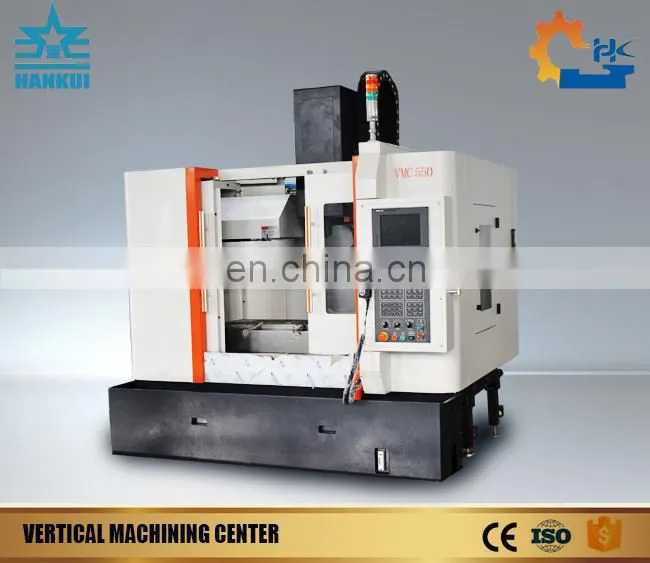

Good Stable Working 3 Axis Vertical CNC Milling Machine Price
1. Parameter
Item |
Unit |

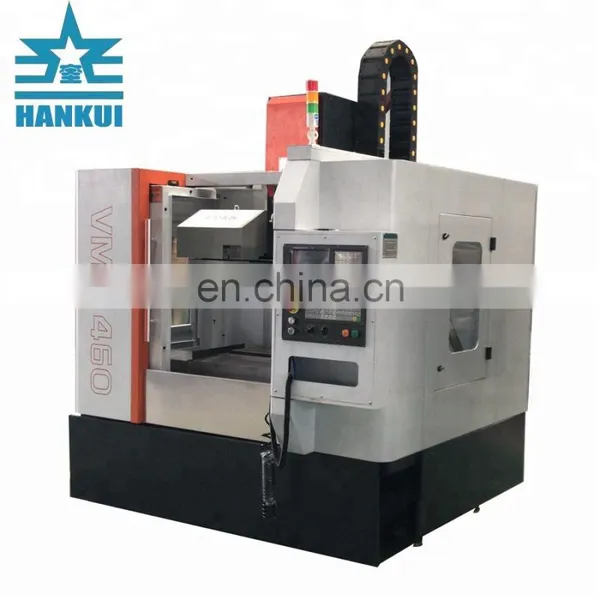

VMC460L |
Table Size |
mm |
800×300 |
Load Capacity |
kg |
200 |
T Slot |
|
3-14×80 |
X-axis Travel |
mm |
460 |
Y-axis Travel |
mm |
320 |
Z-axis Travel |
mm |
460 |
Distance from Spindle Center to Table |
mm |
90-550 |
Distance from Spindle Center to Column Slide Way |
mm |
395 |
Tool Shank |
|
BT30/BT40 |
Spindle Speed |
rpm |
10000 |
Spindle Motor Power |
kw |
3.7 |
Max. Diameter of Tool |
mm |
Φ80/φ120 |
Max.Length of Tool |
mm |
200 |
Max. Weight of Tool |
kg |
6 |
X/Y -axis Rapid Moving Speed |
mm |
20000 |
Z-axis Rapid Moving Speed |
mm |
20000 |
Feed Rate |
mm/min |
1-4000 |
Positioning Accuracy |
mm |
±0.012 |
Repeated Positioning Accuracy |
mm |
±0.007 |
Out Dimension |
mm |
1800×1750×2000 |
Machine Weight |
Kg |
1900 |

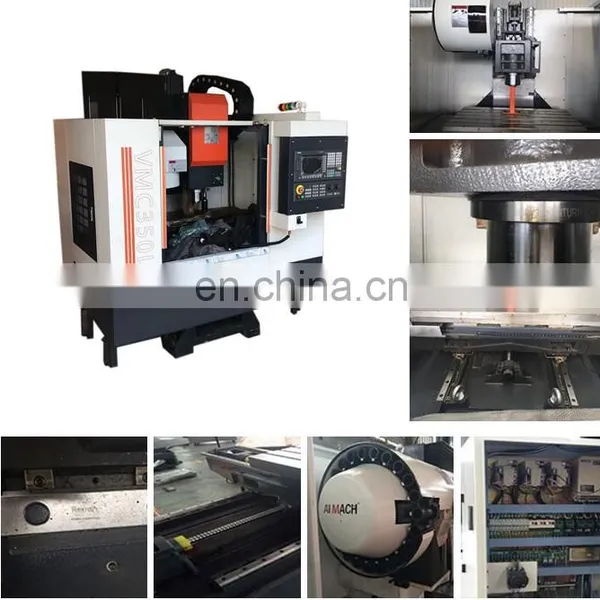

2. Standard configuration
(1). Taiwan spindle
(2). Taiwan ball screw
(3). Taiwan/Germany linear guide way
(4). Three color warning light

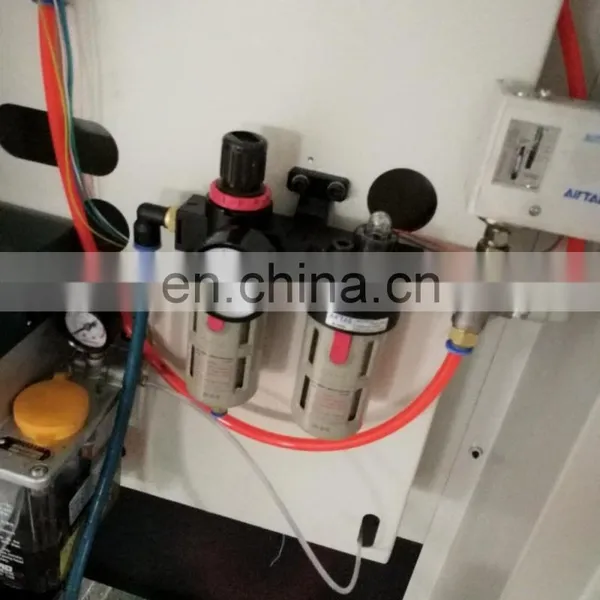

(5). Automatic lubrication
(6). Full enclosed cover
3.Optional configuration
(1). CNC 4th/5th axis
(2). Hydraulic indexing head
(3). Automatic chip conveyor
(4). Full colsed loop control
(5).CNC controller: SIEMENS/GSK/FANUC/MITSUBISHI/KND/SYNTEC
Packed by wooden box or depend on request

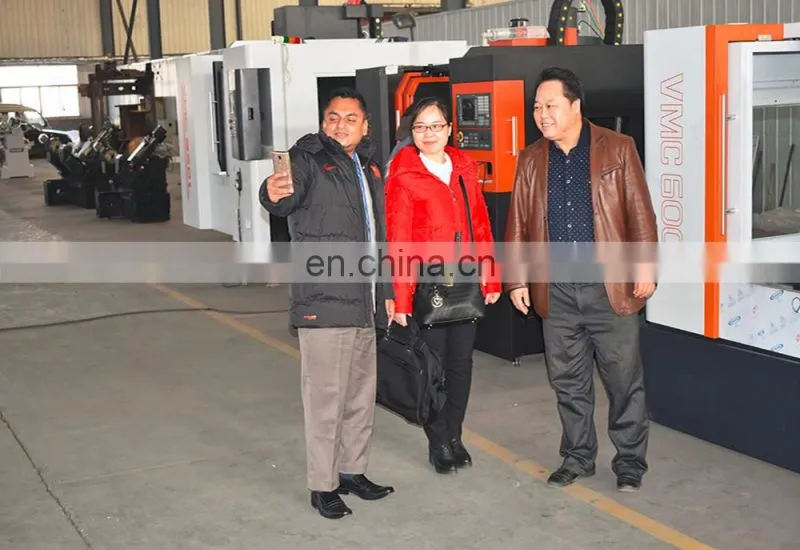

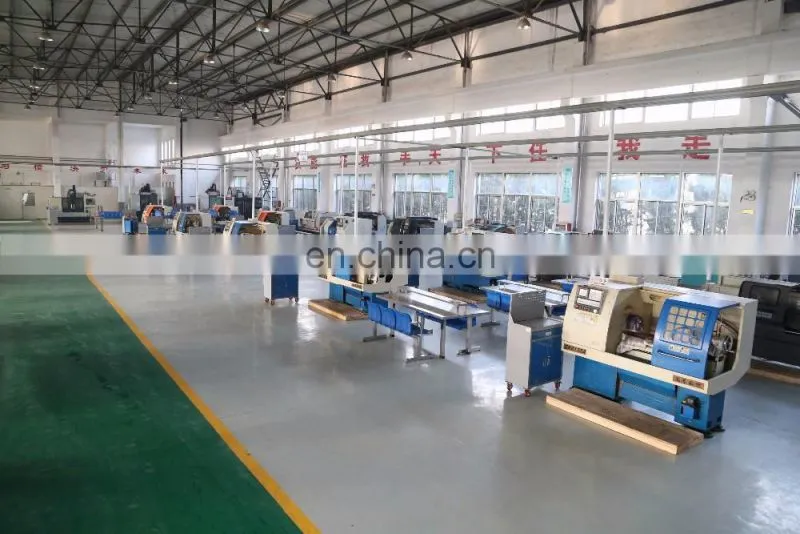

With 20 years produce experience, we have many customers from the wide world
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
2. Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
3. Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
4. Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
5. Q: What sales terms do you have?
A: T/T, L/C,West Union.
6. Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
