The VMC is suitable for the mechanical processing and mold making.And it can adapt to the processing requirement from rough machining to finish machining.it can also finish many working procedures like milling,drilling,tapping,boring.etc.
1)Base, sliding block, working bench, vertical column , spindle box and other main basic parts adopt HT250 cast iron; base is box type structure with symmetric compact and reasonable structure which ensures the basic parts of the high rigidity and bending resistance performance; the column is of A shape bridge span, together with bed inside grid reinforced, effectively ensure the rigidity and accuracy of the Z axis strong cutting force; the basic parts are polished by resin sand and aging treatment, so it ensure machine’s long-term stability when working.
2)The guide rail of X, Z, Y axis are plastic rectangular guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on. Using automatic forced lubrication, it can improve the accuracy of machine tools.
3)Z axis matched with counterweight to keep balance, which ensure the spindle box running smoothly and stable; Z axis drive motor matched with electric brake device.
4)The feed of X, Y, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling. The feed servo motor passes power to the high precision ball screw directly . It is no gap, and it ensures the accuracy of positioning and synchronization for the lathe
5)The spindle unit of the machine tool is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial, and the maximum speed of up to 8000rpm
6) Spindle is of central blowing structure. When the spindle releases tool , the high pressure gas is used to clean the main shaft, so ensure the precision and service life of the tool .
7) Guide rail and ball screw of X, Y, Z direction are all use protection device to ensure that the screw and the guide is clean and the accuracy and life of machine tool's transmission and movement.
8) The machine tool external protection of machine tool uses the full protection structure. It is convenient operation, safe and reliable, and nice shape.
9)It uses a reliable device which is automatic and centralized to lubricate. It can lubricate automatically and intermittently to all lubrication points of CNC lathe. And it can settle lubricating time according to operating conditions.
10)The machine matched with 12 hats (standard) or 16 disc knife library (optional) supplied by Taiwan professional manufacturers. The tool changes accurately , using short time and high

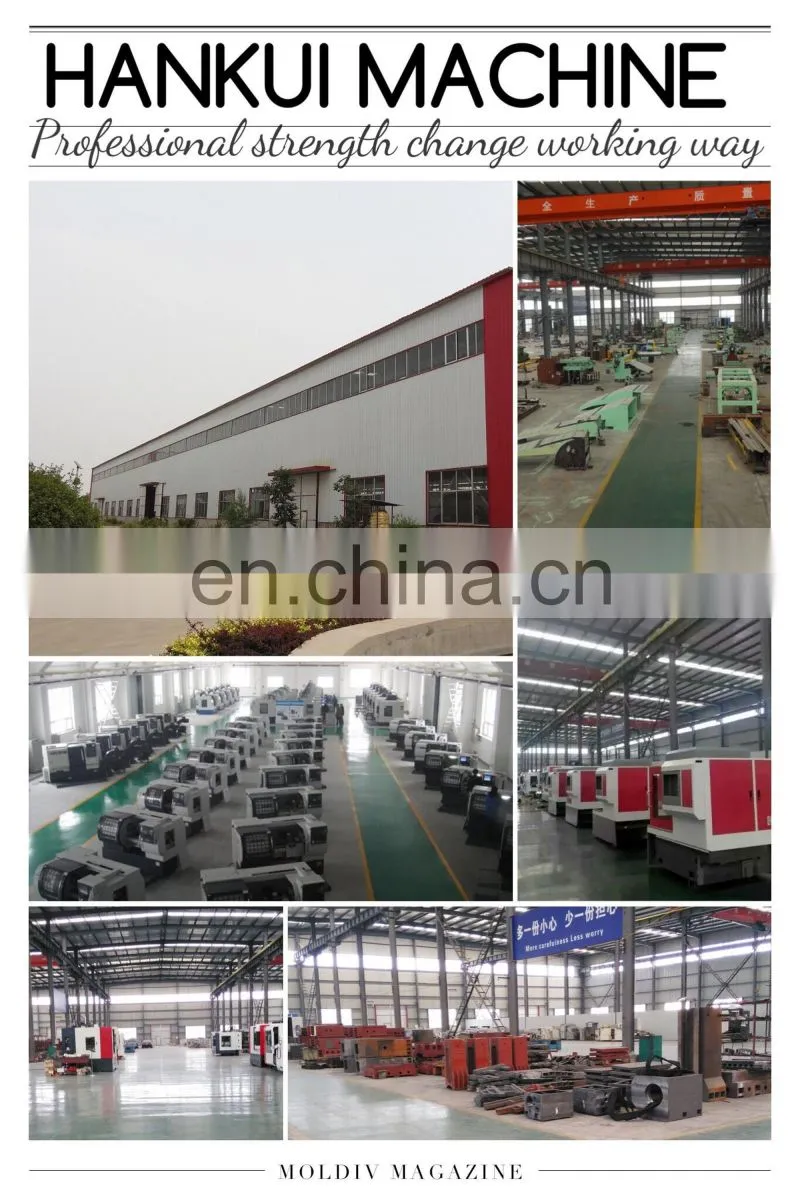

Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.
Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.
We have passed the ISO9001:2008 international quality management system authentication. “Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
Packing Details : Packing by woodenbox or depend on request
Delivery Details : 7-45 days
