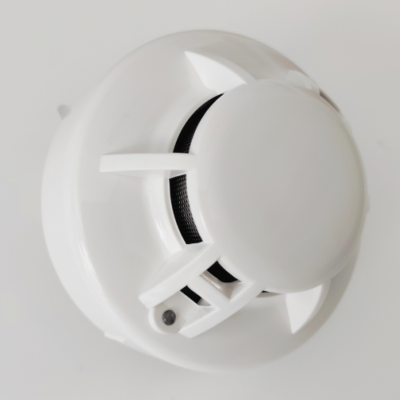

Network Smoke Detector Fire Alarm 4 wired Smoke Sensor probe with Relay output DC9-28V fire detector

Network Smoke Detector Fire Alarm 4 wired Smoke Sensor probe with Relay output DC9-28V

General Description

The detectors are photo-electronic detector uses a

state of-the-art optical sensing chamber. This detector

is designed to provide open area protection and to be

used with most security alarm control panel.

Two LEDs on each detector provide local 360° visible

alarm indication. They flash every six seconds

indicating that power is applied and the detector is

working properly. The LEDs latch on in alarm. The

detector can be reset only by a momentary power

interruption.

The detector that initiated the alarm condition will

have its red LED and relays latched until reset by

panel.

Features and Benefits

Compatible with all the security alarm system

Alarm Relay Output(NO/NC can be adjustable)

Unpolarized wire input

Wide range of operating voltages(9V~28VDC)

Unique optical sensing chamber

Built in microprocessor intelligent software

Two LEDs blink standby, provide 360° visibility

Insect-resistant screening

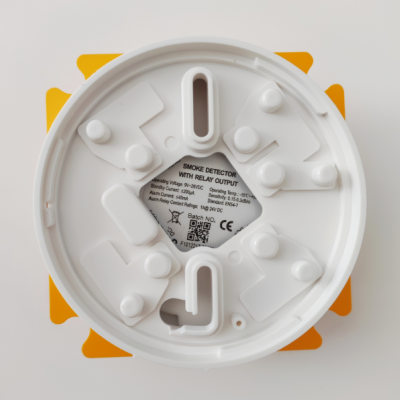

Twist-on mounting base with tamper lock

Drift compensation and smoothing algorithms

Technical Specifications

Diameter: 103mm

Height (including mounting base): 55 mm

Weight: 155 g

Operating Temperature Range: -10°C to 50°C

Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing

Latching Alarm: Reset by momentary power interruption

Power Supply Voltage: 12 VDC (9V~ 28VDC)

Standby Current: 200 μA

Alarm Current: 45 mA @ 12VDC

Alarm Relay Contacts Rating: 2A@24VDC

Smoke Alarm Sensitivity: 1.06±.26%FT
