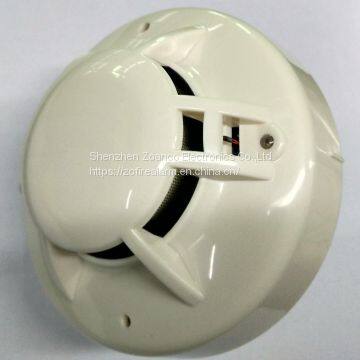

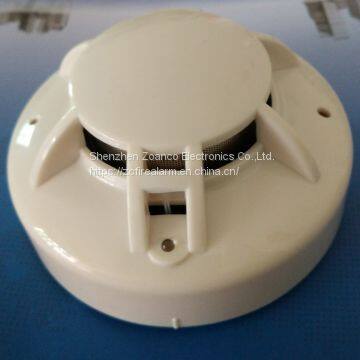

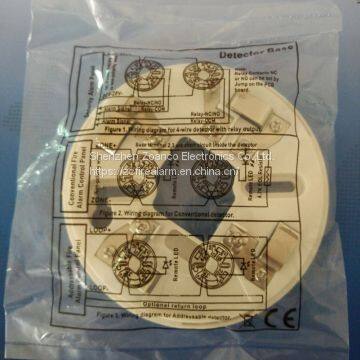

4 Wire Heat Detector With Relay Output NO/NC Network Temperature Sensor Fire Alarm System DC9-28V

4 wire heat detector with relay output NO/NC network Temperature sensor Fire Alarm system DC9-28V

General Description

The device is intelligent sensors that utilize a state-ofthe-

art thermistor sensing circuit for fast response.

These sensors are designed to provide open area

protection with 50 foot spacing capability. The device

is a rate-of-rise temperature sensor with 135°F fixed

temperature alarm.

The device is a rate-of-rise with fixed temperature

alarm thermal detector utilizing a state-of-the-art dual

thermistor sensing circuit. These detectors are

designed to provide open area protection with 50-foot

spacing capability, and are to be used with

compatible control panels only.

Two LEDs on each detector light to provide 360°

visibility of the detector indication.

Features and Benefits

Compatible with all the security alarm system

Alarm Relay Output(NO/NC can be adjustable)

Unpolarized wire input

Wide range of operating voltages(9V~28VDC)

High precision electronic thermistor

Built in microprocessor intelligent software

Two LEDs blink standby, provide 360° visibility

Insect-resistant screening

Twist-on mounting base with tamper lock

Technical Specification

Diameter: 103mm

Height (including mounting base): 55 mm

Weight: 155 g

Operating Temperature Range: -10°C to 50°C

Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing

Latching Alarm: Reset by momentary power interruption

Top Side Base

Figure 1. Dimension of detector:

Electrical Ratings

Power Supply Voltage: 12 VDC (9V~ 28VDC)

Standby Current: 200 μA

Alarm Current: 45 mA @ 12VDC

Alarm Relay Contacts Rating: 2A@24VDC

Temperature Alarm Sensitivity: 57°C (135°F) A1R
