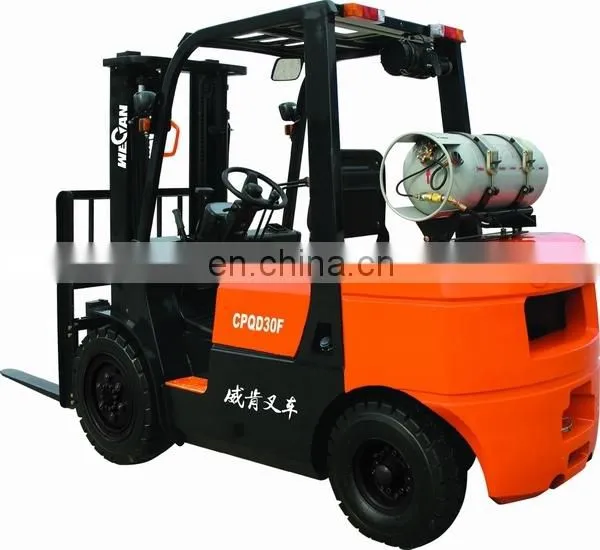

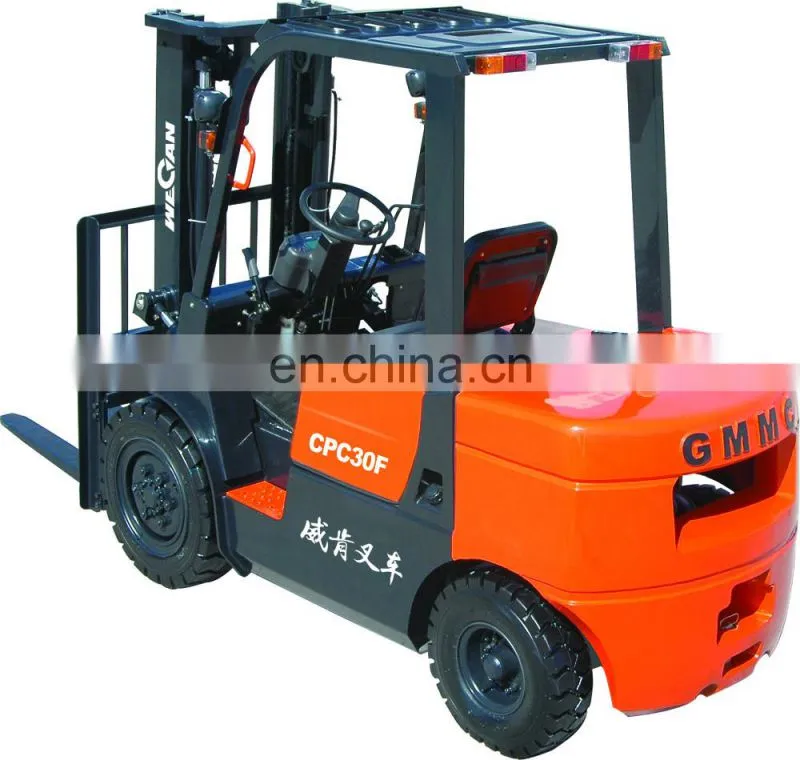

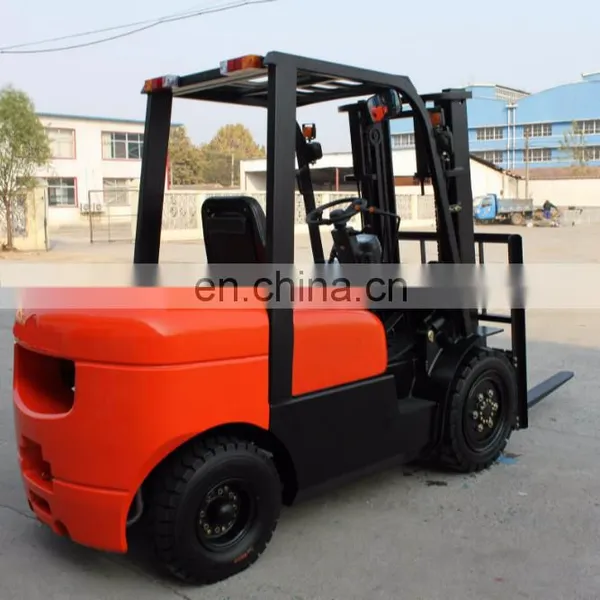

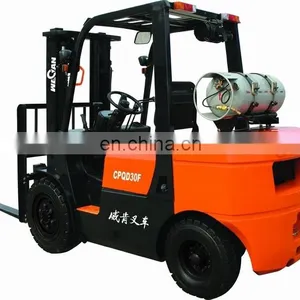

3T small forklifts for sale
- 150 Unit / Units per Month
- Qingdao
- T/T Credit Card
- wholesale New condition 5ton site dumper with CE
- 90hp 4WD farm garden tractor multifunction tractor
- 4 wheel drive tractors, 120 hp tractor factory price
- 90hp 4WD multi function farm garden tractor
- Chinese cheap tire crane truck, wheeled tire crane truck
- disc mower, hay mower, DRM disc mower for tractor
Product Details
Brand Name: | MAP | Place of Origin: | Shandong, China | Model Number: | CPCD30 |
Certification: | CE | Type: | Powered Pallet Truck | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New | Rated Loading Capacity: | 3000 kg | Overall Dimensions: | L3790*W1228*H2110 MM |
Fork Width: | 125 MM | Fork Length: | 1200 MM | Min. Lifting Height: | 135 MM |
Max. Lifting Height: | 4250 mm | Power Souce: | Diesel Engine |
Product Description
3T small forklifts for sale, 4x4 froklift, cheap forklit
Product Description
1.Widely view mast assembly new design of new type,the operator field of vision,less blind spots at the same time,the clear view of the operator.
2.Using full hydraulic steering system,make a turn more smoothly and quickly positioning,ensuring the driving safety.
3.Innovative design and configuration,make the hydraulic system work more efficient,at the same time greatly improve the loading speed significantly prolong the working time.
4.Through the vehicle layout optimization and enhance its operating space,driving more comfortable,more convenient operation.
More intelligent equipment and function more intelligent vehicle,not only protect the safety of drivers and vehicles,but also improve the work efficiency,reduce the energy consumption.
The specification of forklift
Load capacity(KG) | 3000 | ||
Load center(MM) | 500 | ||
Power type | Diesel | ||
Max.lifting speeds(with load)MM/S | 400 | ||
Max.Driving speeds(with without load) KM/H | 18/20 | ||
Max.Towing(with without load)KN | 14.5/9.8 | ||
Gradeability(with/without load) % | 15/20 | ||
Lifting height(MM) | 3000 | ||
Free lift(MM) | 80 | ||
Tilting angles(forward-backward) | 6/12 | ||
Min.turning radius(MM) | 2450 | ||
Min.right angle aisle width(MM) | 2110 | ||
Min.under-clearance(MM) | 135 | ||
Dimensions | Overall length(MM) | 3790 | |
Overall width(MM) | 1228 | ||
Overall height(mast lowered)(MM) | 2110 | ||
Overall height(mast extend) MM | 4250 | ||
Overall height to overhead guard(MM) | 2090 | ||
Fork overhang(MM) | 494 | ||
Wheel base(MM) | 1700 | ||
Tread Tyre | Front tread(MM) | 1000 | |
Front tread(MM) | 970 | ||
Front tread | 28×9-15 | ||
Front tread | 6.50-10 | ||
Total weight(KG) | 4320 | ||
Fork width(MM) | 125 | ||
Fork thickness(MM) | 45 | ||
Backrest height(MM) | 1195 | ||
Fork length(MM) | 1200 | ||
Engine | Engine model | A490BPG | |
Rate power(KW) | 37 | ||
Ratate Speed At Rate Power(RPM) | 2650 | ||
Max.torque N.M | 148 | ||
Rotate speed at max torque(RPM) | 1800-1900 |
Company infromation
Weifang MAP Import and Export Co,Ltd . is a professional manufacture of froklift truck,woodchipper(self-power or PTO),wheel loder ,dumper,tractor,tractor attachments,implements and whole sale supplier,specializing in construction machinery and agricultural equipments.
We can alsodesign new products according to customer and market demand.
1.A professional international sales team,which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers.
2.A well managed quality control system to customize on clients requirements.We can design according to the customers usage requirement.
3.Unparalleled after sales service skilled,professional repair services can significantly improve customer satisfaction during the warranty period,we provide free parts and free cost to delivery the parts to customers ware house at first time .
If you have any question,please feel free to contact me .
