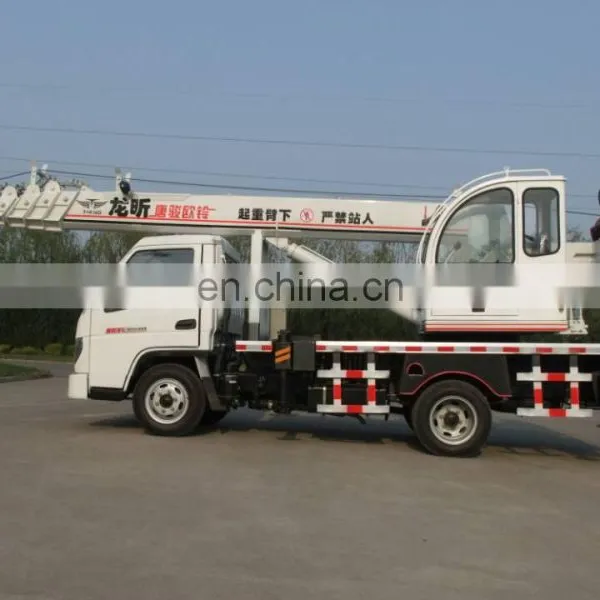

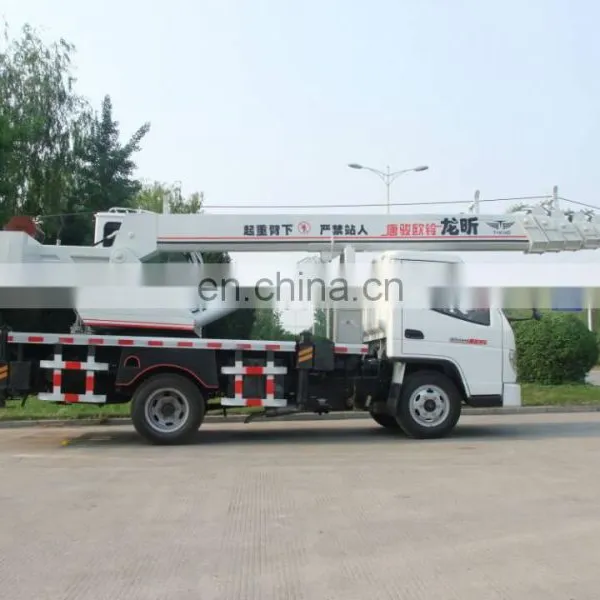

Chinese cheap tire crane truck, wheeled tire crane truck
1. work range means the actual range under lifting weight, Lifting weight is the actual hanging weight of the rear direction of the truck crane, the side of it, the weight should be reduced 30%.
2. above the thick line lifting weight is decided by lazy arm strength, overload will lead to folding arm, lifting weight below the thick line is decided by the stability of whole truck crane, overload will lead to overturn.
3. the lifting weight of the table include hooks, lifting appliance (hook weight 78Kg).
Performance parameter:
Performance parameter
Product model |
MAP6T |
Total mass kg |
6500 |
Overall dimension mm |
8250*2100*3150 |
Rated elevating capacity kg |
6000 |
Rated Lifting torque kn*m |
120 |
Max. Lifting Height m |
24 |
Main hook single load kg |
1000 |
Main hook single elevating speed m/min |
50 |
Auxiliary hook single load kg |
500 |
Auxiliary hook single elevating speed m/min |
100 |
Engine model |
SIDA485#(4DW83-73E3) |
Derailleur model |
LG5-38 With high and low speed auxiliary box |
Tires |
6.50-16 with spare tires |
Braking form |
Vacuum booster |
Steering form |
The steering wheel circulation ball type |
Crane jib structure |
Category five hexagon box-type, hydro cylinder telescopic boom |
Main Lifting Mechanism |
Category two planet wheel with a brake inside |
Auxiliary Lifting Mechanism |
Category one gear brake motor |
Swing Bearing |
GB Φ1000 Tooth, material 50Mn intermediate frequency |
Vertical hydraulic leg |
Double-acting engineering oil cylinder |
Horizontal hydraulic leg |
Double-acting engineering oil cylinder |
Platform |
Anti-skidding and big |
Protective Screening |
Two-way |
Night light |
3 lamps control |
Dynamic Motor |
GB 11KW-4 pole |
Crane Cab |
Tailor-made |
The central axially symmetrical |
Four oil ways |
Crane Start |
Tailor-made |
Throttle |
Hydraulic |
Warning Horn |
Mono snail |
Pressure gage and switch |
Shockproof component |
Power Takeoff |
Driving indoor operation zip type |
