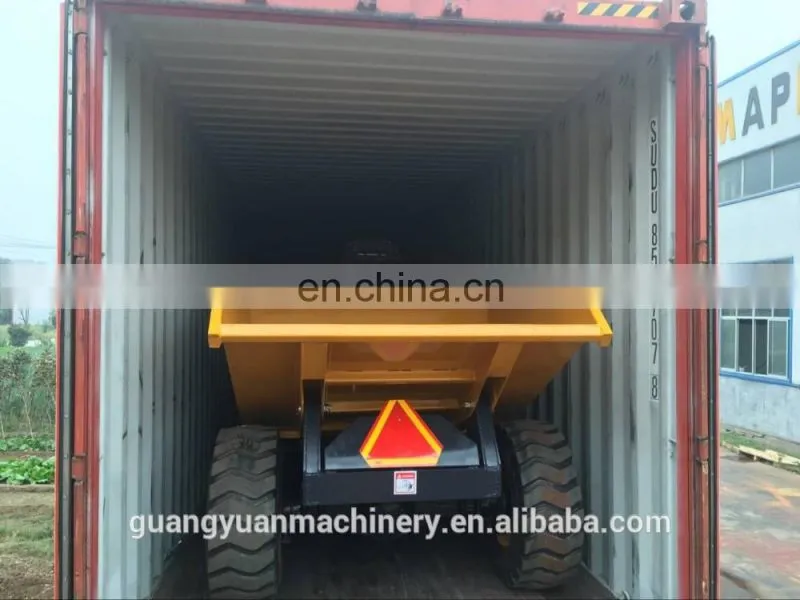

wholesale New condition 5ton site dumper with CE

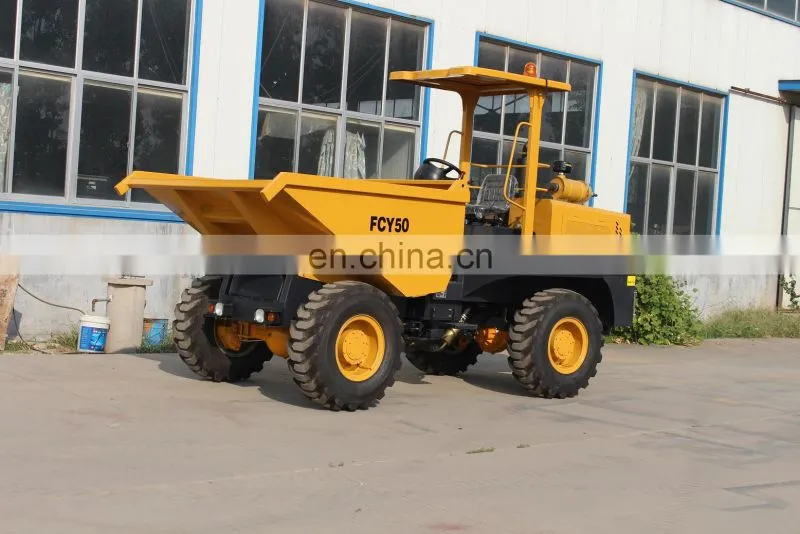

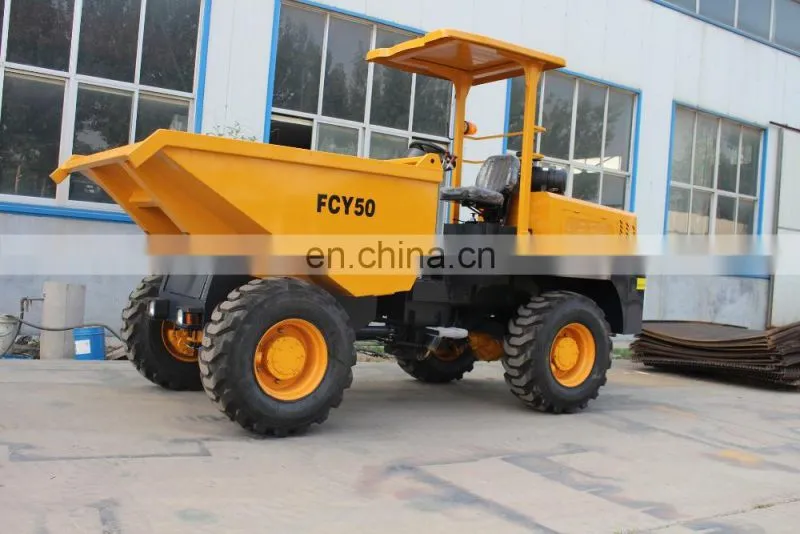

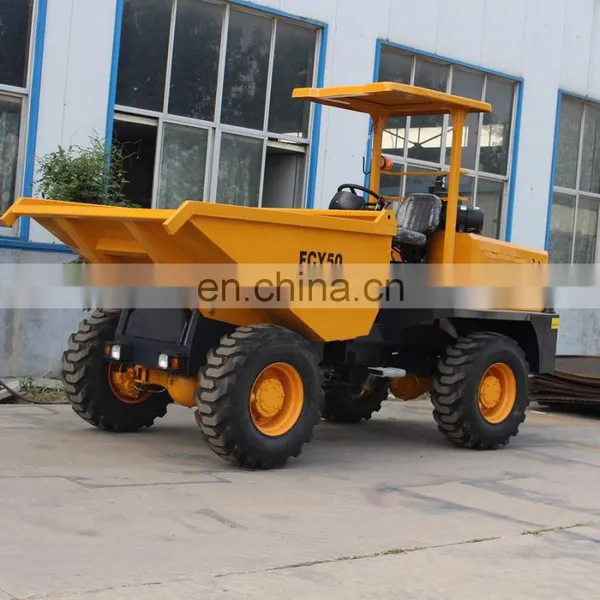

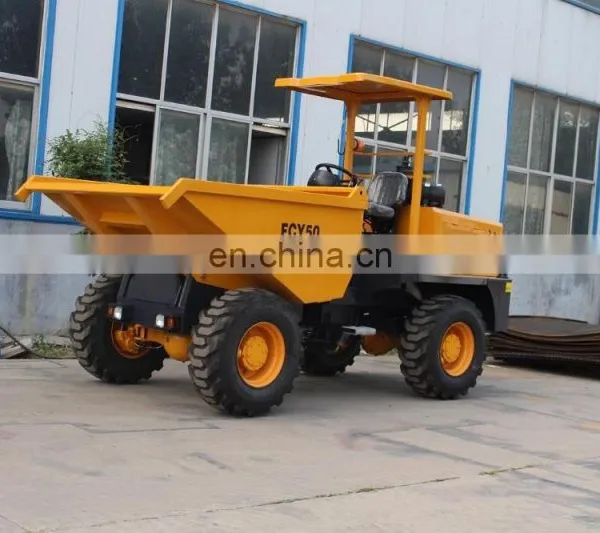

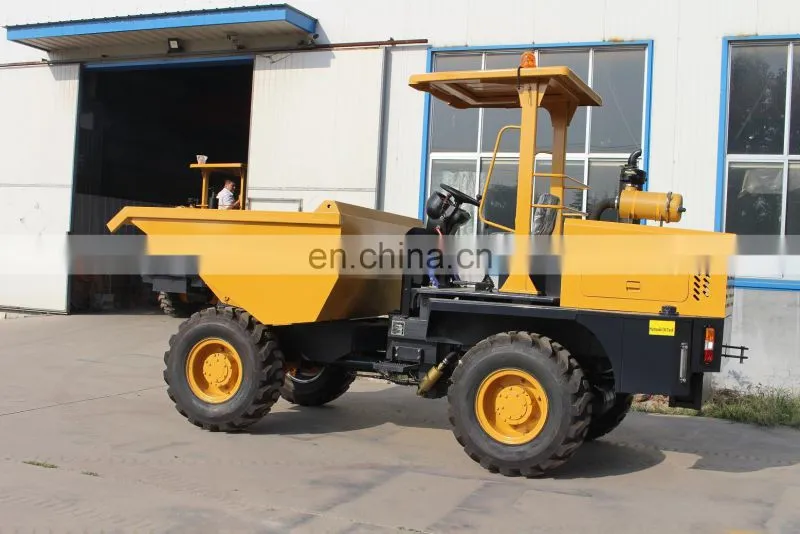

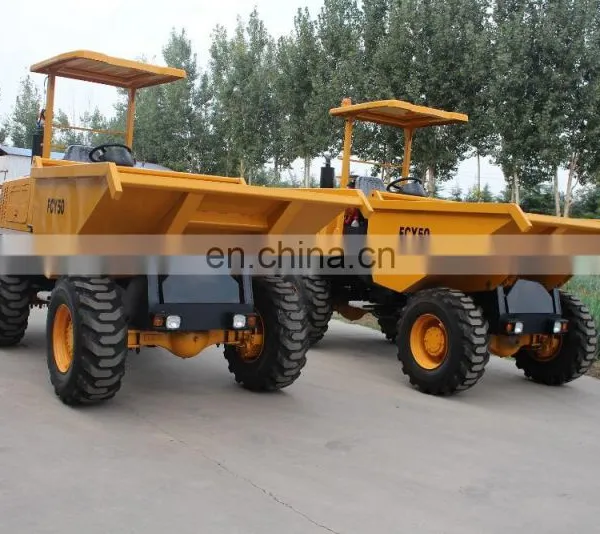

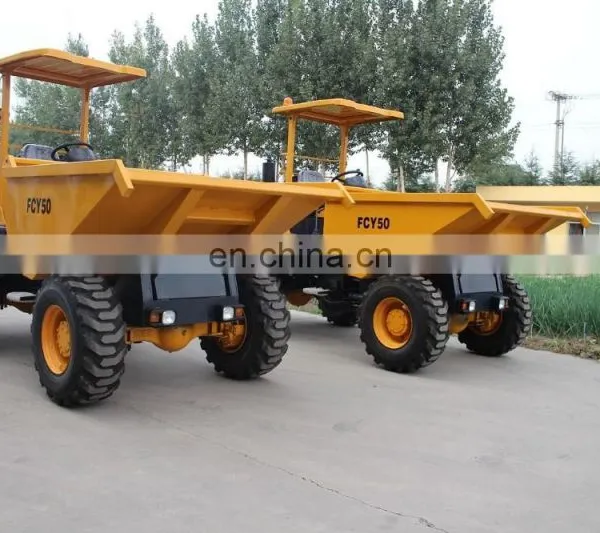

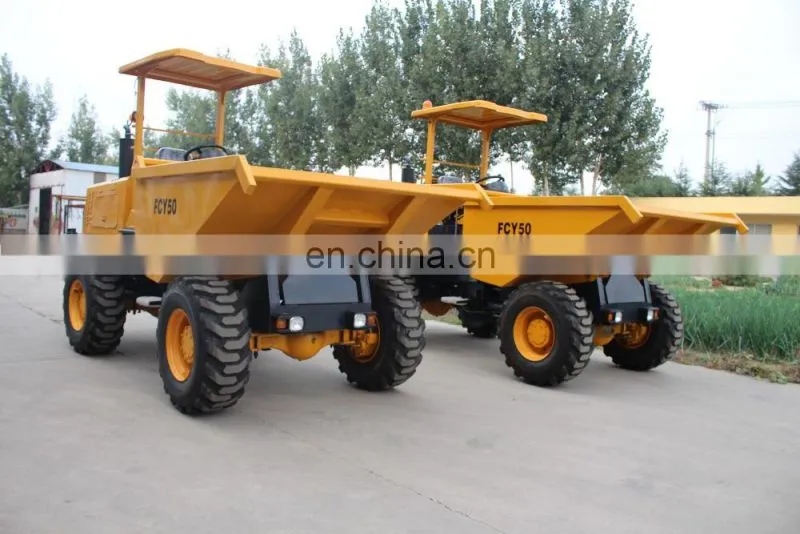

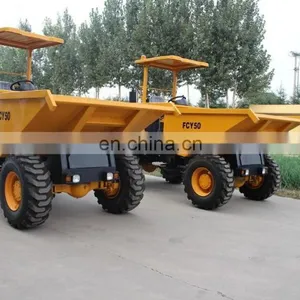

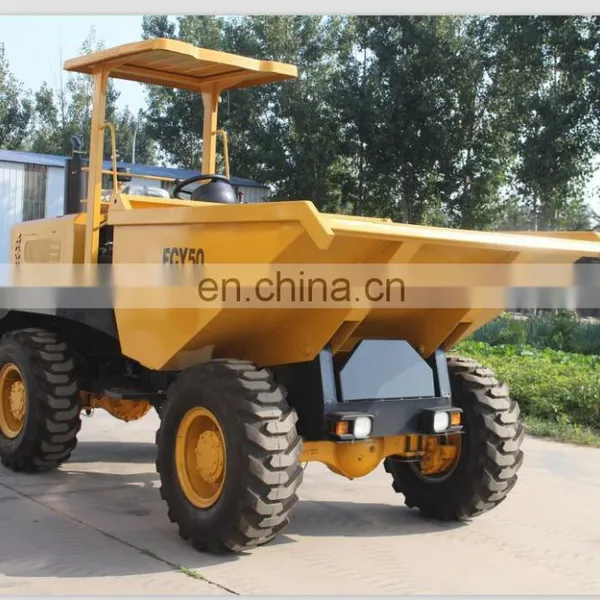

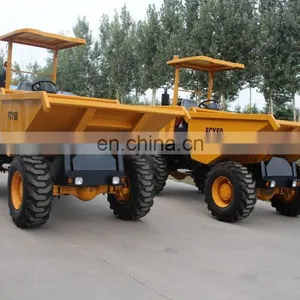

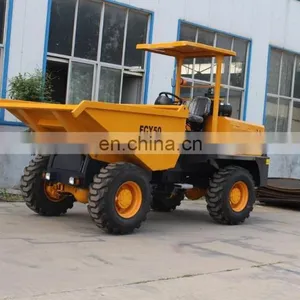

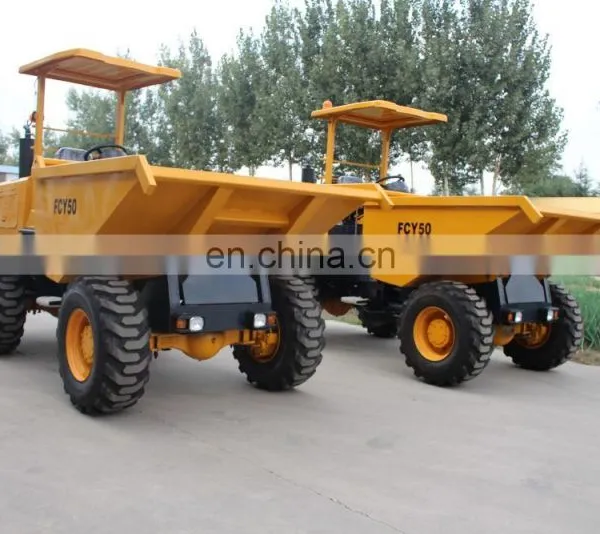

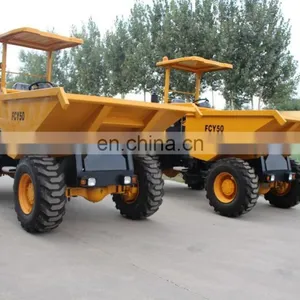

FCY50 4WD site dumper
Hot selling in Uganda ,Tanzania, Kenya, South Africa Peru,Ecuador
SPECIFICATIONS OF MINI DUMPER FCY50
1.Drive model: 4*4 Payload: 5000Kg
2.Skip capacity: 1.9CBM
3Articular frame with hydraulic steering
4. ROPS protection
5. OTR tires
6.Hydraulic transmission.
1. |
Payload |
5000kg |
||||
2. |
Operating weight |
3550 kg |
||||
3. |
Hopper capacity |
1.9m3 |
||||
4. |
Maximum speed |
25.2 km/h |
||||
5. |
Handbrake available on grade |
18% |
||||
6. |
Max grade ability |
25% |
||||
7. |
Distance of road after brake |
≤2.5m with load and speed 10km/h |
||||
8. |
Minimum turn radius |
4 m |
||||
9. |
Ground clearance |
248 mm |
||||
10. |
Noise level |
≤108 db(A) |
||||
11. |
Loading discharge angle |
48.40 |
||||
12. |
Time of discharge |
6s |
||||
13. |
Hydraulic pressure |
16 Mpa |
||||
14. |
Wheel base |
2200 mm |
||||
15. |
Wheel tread |
1580 mm |
||||
16. |
Dimensions (LxWxH) |
4400x2100x2700 mm |
||||
|
B. Engine
|
||||||
1. |
Model/Maker |
4102 |
||||
2. |
Type |
Diesel 4 stroke engine, 4 cylinder incline, direct fuel injection, Water cooled |
||||
3. |
Bore x stroke piston |
100 x 102 mm |
||||
4. |
Power |
47KW |
||||
5. |
Speed |
2400 R/Min |
||||
6. |
Max t |
|
120@2100v/p |
|||
7. |
Weight |
350 kg |
||||
8. |
Fuel consumption |
|
248 g/kWh |
|||
