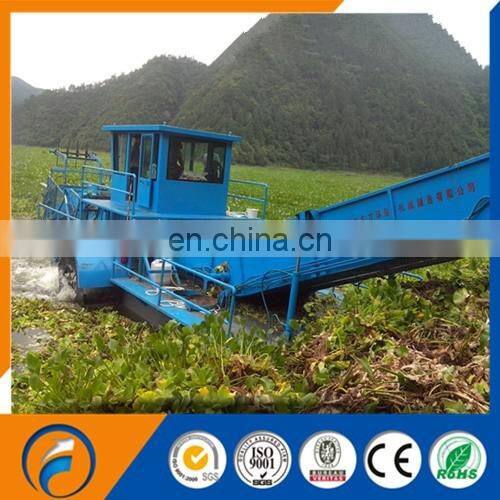

DFSHL-85 Water Hyacinth Harvester

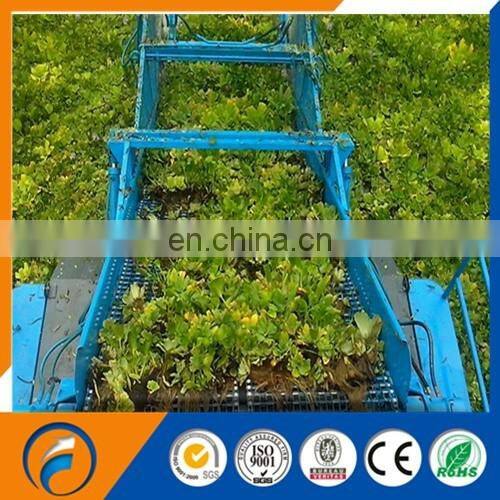

Like an underwater lawn mower, a hot selling DFSHL-85 water hyacinth harvester cuts the vegetation, collecting and storing the weeds on board. Water hyacinth harvesters are fitted with a pick up conveyor at the forward end of the machine, which can be lowered up to six feet deep to cut weeds. One horizontal and two vertical cutter bars sever the vegetation as the machine moves forward through the water, and, when the storage hold becomes full, the water hyacinth harvester returns to shore to unload.

Depending on the size of your lake, the type of your weeds, the percentage of weeds you would like to remove, and how quickly you would like to harvest them, we will work with you to design a fully customizable weed harvester to meet your exact needs.

DFSHL-85 Water Hyacinth Harvester

Item

Parameter

Notes

Length Overall

12.2m

Hull Length

6.8m

Hull Width

3m

Hull Depth

1m

Draft Designed

0.45m

Draft Loaded

0.5m

Max.Collecting Depth

2m

Max.Collecting Width

3.4m

Load Capacity

6-7.2m³

Traveling Speed

4-5km/hr

Working Speed

2-3km/hr

Endurance

24hr

Drive Mode

Bilateral Paddle Wheel

Max.Discharge Height

2.8m

Working Capacity

2000-3000m²/hr

1.Customized design and pre-sale service.
