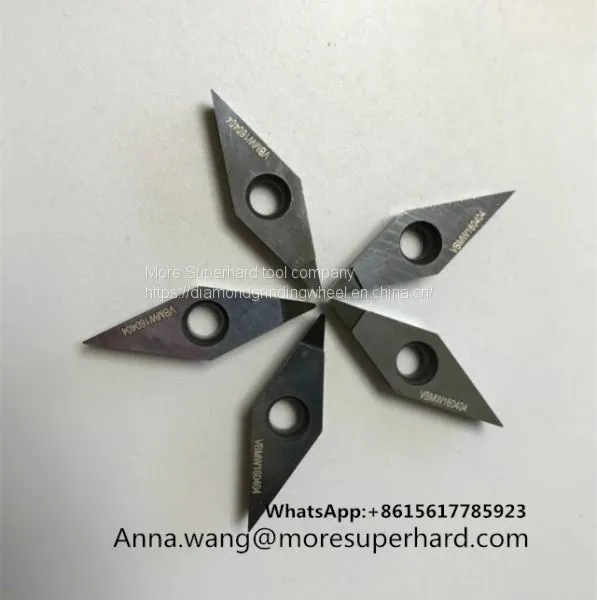

PCD Diamond Compact Tools,CBN Compact Tools
US$ 0.1 - 0.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MORE SUPER HARD
Model Number:
1A1
Size:
all
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
PCD Straight Shank Reamer,PCD Diamond Tools Marble Stone CNC Carving Tools 0.4mmUS$ 0.1 - 0.5MOQ: 1 Piece -
Diamond Insert,PCD,35 Deg, POLY-TECH DIAMOND,Turning Insert,Material PCD,Grade DA1000 SUMITOMO 16HQBZCUS$ 0.1 - 0.5MOQ: 1 Piece
-
Pcd Tip Grooving Insert Grooving Carbide Insert MRMN200/MRMN300/MRMN400 GroovingUS$ 0.1 - 30MOQ: 1 Piece
-
PCD Diamond Grooving Inserts,PCD Tipped Grooving Cutters,PCD Veränderbar Interne Carbide Grooving TippsUS$ 0.1 - 30MOQ: 1 Piece
-
PDC Cutter Insert,pdc Cutters,synthenic PDC Cutter Inserts,pdc Button InsertUS$ 0.1 - 30MOQ: 1 Piece
Brand Name
MORE SUPER HARD
Model Number
1A1
Size
all
Type
Abrasive Disc
PCD Diamond /CBN Compact tools
Tool application and case historiesDiamond compact and natural diamond tools
Diamond Compact is sintered polycrystalline diamond composit known as PCD. CBN Compact is sintered polycrystalline CBN composit known as PCBN.
The Physical properties of tool materials| Tool materials | Knoop hardness |
|---|---|
| Natural diamond | 8000～12000 |
| Diamond compact | 6000～8000 |
| CBN | 4700 |
| CBN compact | 3400～4000 |
| Tungsten carbide (K10) | 1800～2200 |
Tool application and case historiesDiamond compact and natural diamond tools| non-ferrous materials | aluminium alloys copper・copper-alloy［brass ・bronze］ zinc-alloy titanium-alloy manganin magnesium alloy tungsten carbide cermet precious stones［gold・silver・pratinum］ |
|---|---|
| non-metal | plastics FRP hard-rubber hard-paper graphite ceramics ferrites asbestos |
If you need any products, do not hesitate to contact
Skype:Annawng
WhatsApp:+8615617785923
@moresuperhard.com
CBN Compact tools| Hardened alloy steel | Carbon steel（SK） High carbon chrome bearing steel（SUJ） steinless steel（SUS） Chrome molydebynum steel（SCM） Nickel chrome molybdebynum steel（SNCM） |
|---|---|
| Tool steel | High speed tool steel（SKH） Alloy tool steel（SKS, SKD, SKT) Carbon tool steel（SK） |
| Chilled iron | Chilled cast iron Meehanite cast iron |
| Heat-resistant alloy | Nickel base alloy：Inconel、Rune、Monel、Incoloy、Waspaloy Cobalt base alloy：Stellite、Colmonoy、Warrex |
