Weco Wing Figure 207 Hammer Unions

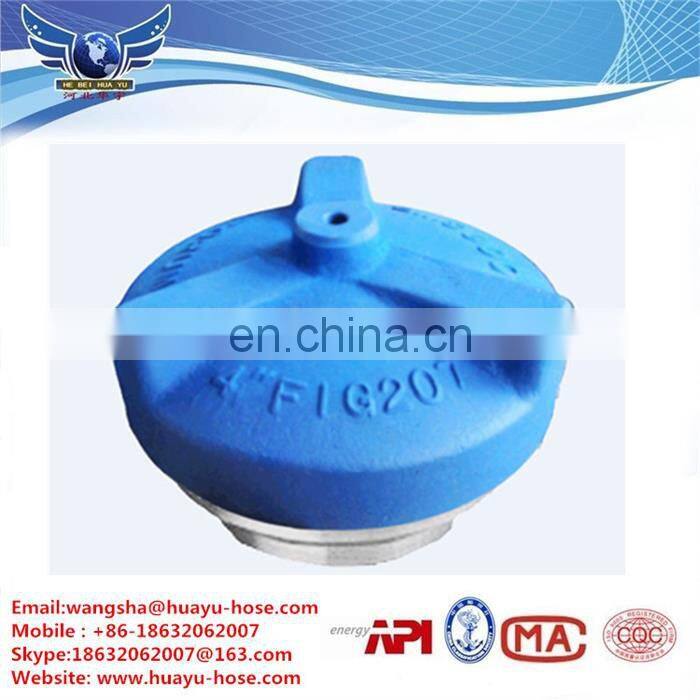

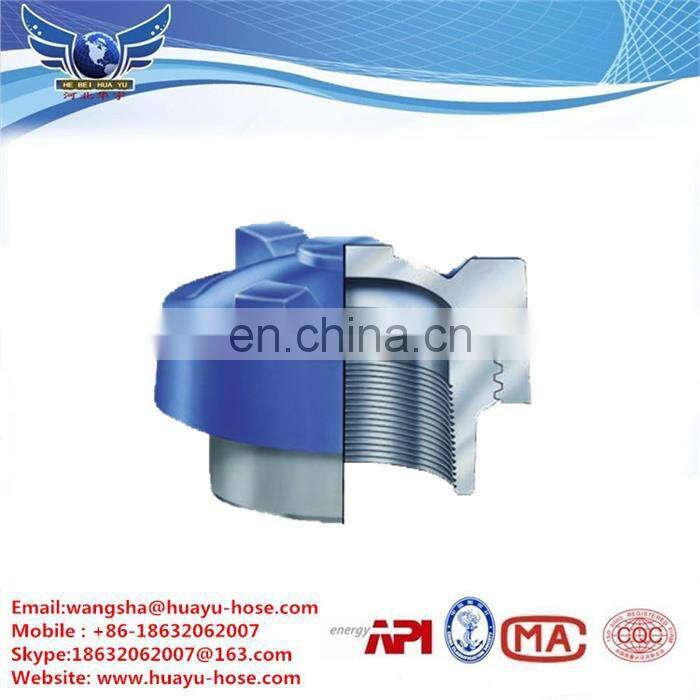

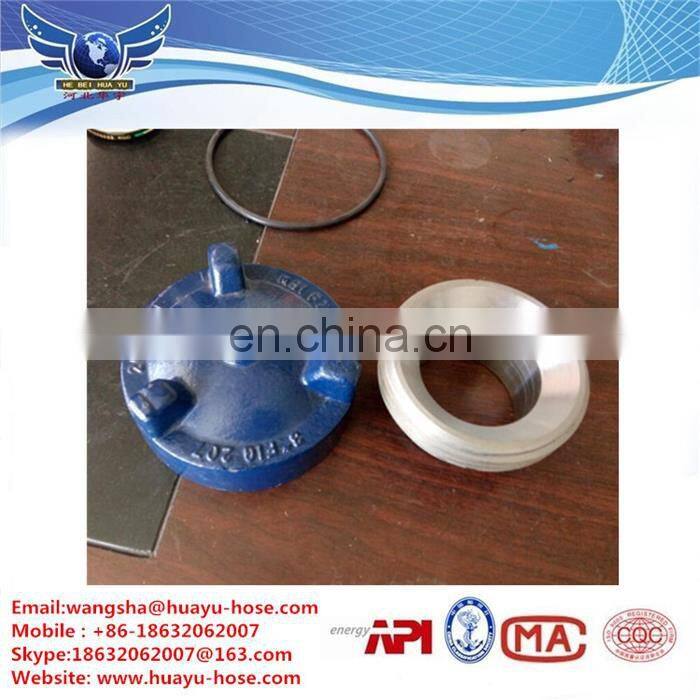

Figure 207 hammer union is blue cap , gray subs . The union have O-ring on the blanking cap ensures a leak-free seal, the union parts can interchangeable with Figure 200 and Figure 206. These hammer union are recommended for air , water , oil and gas and service seals manifold connections and protects union threads . Fig 207 hammer union working pressure not more than 2000PSI , test pressure is 3000PSI .
The details of Fig 207 hammer union :
u Cold working pressure : 2000PSI
u Size : 3’’ and 4’’
u Cap can be tapped for pressure gauge
u Available in Butt-weld
Products Specifications :
Nominal pipe size |
Total length |
Nut radius |
Material |
Weight |
|||||
in |
mm |
in |
mm |
in |
mm |
nut |
subs |
lbs |
kgs |
3 |
76.2 |
33/4 |
95.25 |
27/8 |
73.03 |
SC |
SF |
9.8 |
4.45 |
4 |
101.6 |
45/16 |
109.54 |
319/32 |
91.28 |
SC |
SF |
16.25 |
7.37 |

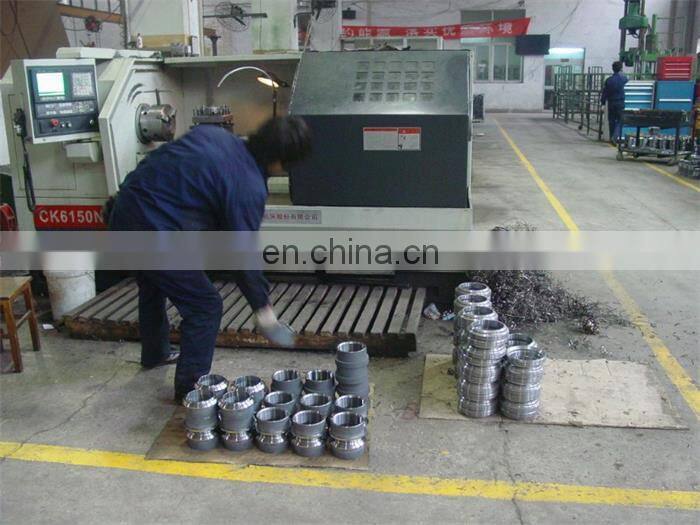

Hebei Huayu Special Rubber Co., Ltd. We have many years experience to produce the unions also have advanced equipment and skilled workers to control the product quality and we have been focusing on research and development the best products in recent years . With our best service attitude and the good products ,we have established long term cooperation relationship with many large companies and we have exported our union products to many countries.
We are the leading manufacturer of complete union products, such as fig 100 hammer union , fig 200 hammer union ,fig 206 hammer union ,fig 207hammer union , fig 400 hammer union , fig602 hammer union ,fig 1002 hammer union , fig 1003 hammer union , fig 1502 hammer union . They are used pipe line and high pressure equipment connection ,they have different cold working pressure and structure but our union are easy installation and uninstall .
