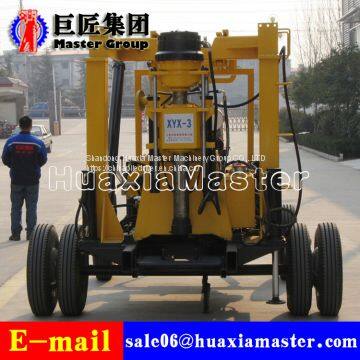

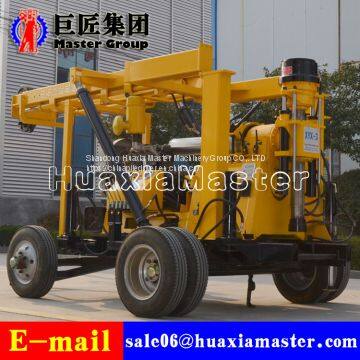

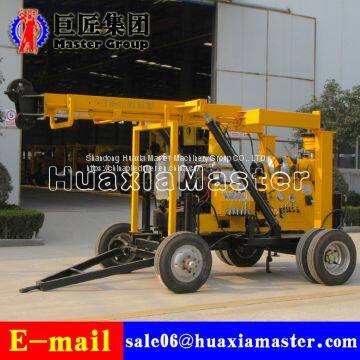

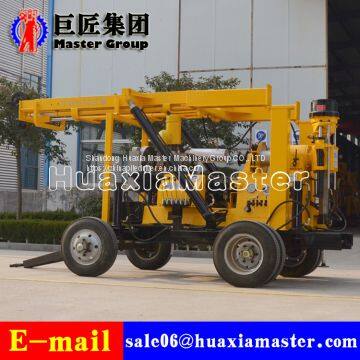

1. The features of XYX-3 water well drilling machine
l The rig is equipped with wheeled walking mechanism and hydraulic cylinder support, which is convenient for the whole machine to be relocated and easy to adjust the level of the drilling rig.
l Using the ball card holding mechanism to replace chuck,can implement non-stop down rod,convenient operation,safe and reliable.
l With oil pressure feeding mechanism to improve drilling efficiency.
l The pressure gauge is provided with the pressure gauge of the bottom of the hole, easy to grasp the situation in the hole.
l The lifting and falling tower is hydraulic operation, which is convenient and reliable.
l The diesel engine uses electric start to reduce the labor intensity of the workers.
2. The specifications of XYX-3 water well drilling machine
Drilling hole depth |
100/250/300/600 m |
Opening hole diameter |
300/200/150/75mm |
Maximum opening hole diameter |
300mm |
End hole diameter |
75mm |
Drilling pipe |
60mm |
Drilling angel |
90°-65° |
Vertical shaft | |
Shaft |
|
Forward speed |
30-1050r/min |
Reverse speed |
29-137r/min |
Stroke |
560mm |
Inner hole diameter |
96mm |
Lifting force |
60kn |
Winch | |
Lifting speed (single rope) |
0-45m/min |
Wire rope diameter |
14mm |
Roll capacity |
30m |
Lifting force (single force) |
40kn |
Mud pump | |
Mud pump |
BW-250 Horizontal three cylinder |
Flow rate |
250l/min |
Working pressure |
7mpa |
Inlet hose diameter |
75mm |
Outlet hose diameter |
50mm |
Gear pump | |
Dual gear pump |
CBF-F63/25 |
Front flow pressure |
63l/min 20Mpa |
Back end flow pressure |
25l/min 20Mpa |
Rig power | |
Diesel engine |
FAW Xichai 4 cylinder |
Electric motor |
Y180L-4 22KW |
Wheeled chassis | |
Capacity |
3.5T |
Length |
2.6m |
Width |
2m |
Height |
0.6m |
