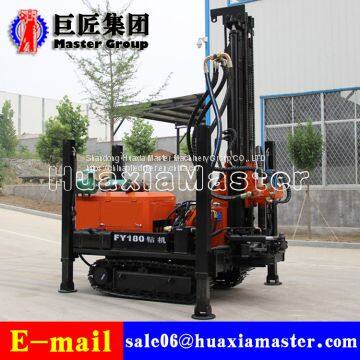

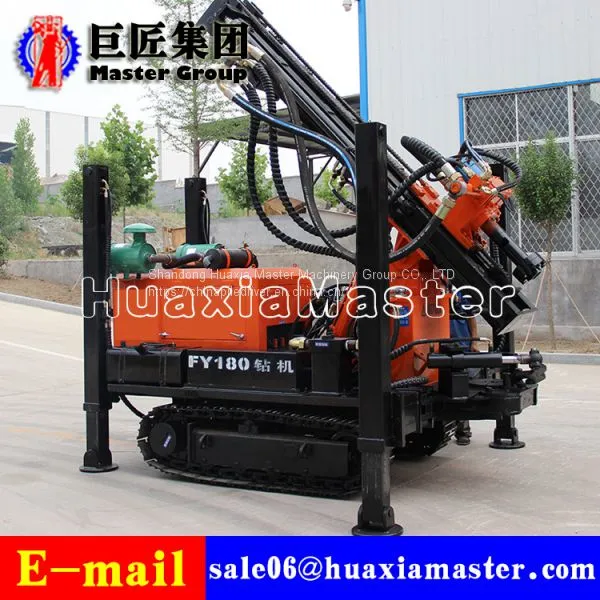

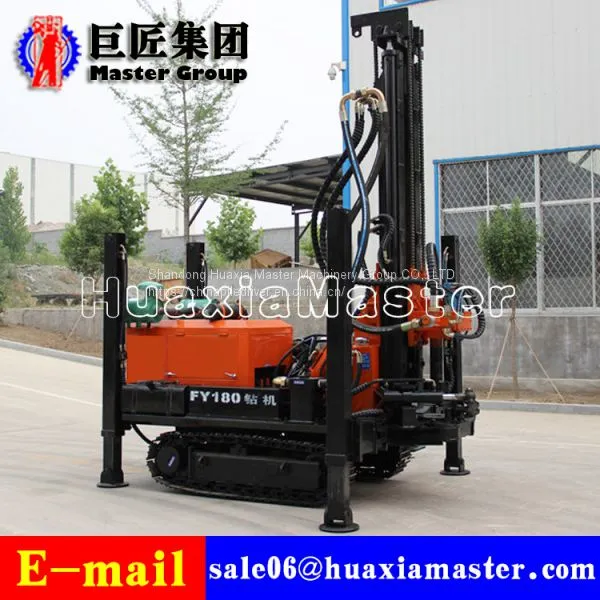

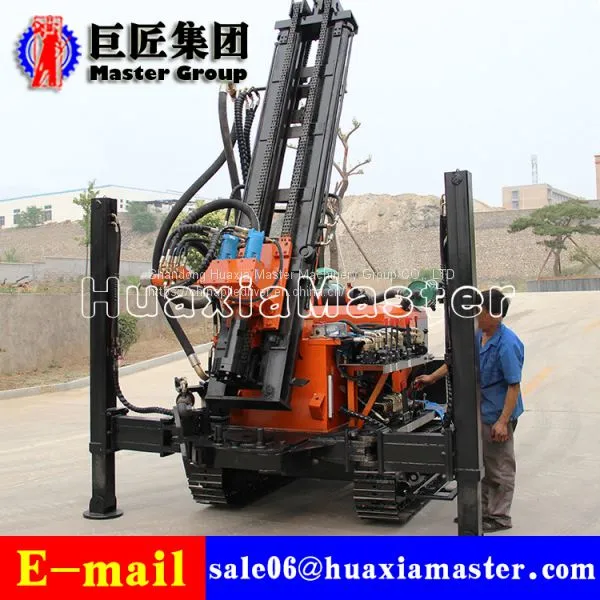

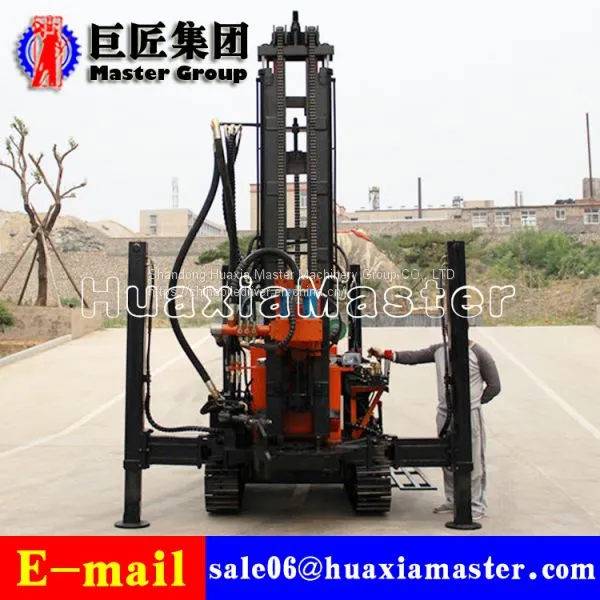

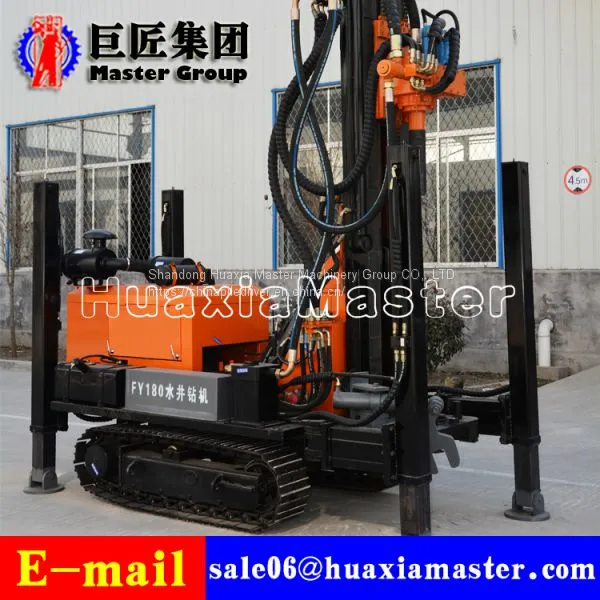

FY200 Pneumatic Rock Core Drilling Rig Water Borehole Drilling Machine With Fast Speed
US$ 3000 - 3500
/ Set
1 Set(Min. Order)
- Qingdao
- T/T L/C D/P D/A
- 7 days
You May Like
-
FY260 260 m Large Diameter Water Well Drilling Rig Can Drill Rock Like a Wofe
-
FY300 Huaxia Master Supply Crawler Air Water Well Drilling Rig Machine
-
FY400 Crawler Mounted Mining Dth Drilling Rig Water Well Drilling Rig For Sale
-
FY600 High Power Diesel Engine Water Well Drilling Rig Air Water Machine
-
KY-150 Mine Tunnel Drilling Rig Hydraulic Metal Mine Prospecting Drilling Rig
-
KY-250 Cheap Price Hydraulic Tunnel Drilling Rig Metal Mine Drilling Equipment
Product Details
| Brand Name | Huaxia Master | Place of Origin | China | |
| Model Number | FY200 | Type | Rotary Drilling Rig | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 6 month | Weight | 4.6T | |
| Dimension(L*W*H) | 3800*1600*2450 MM | Power Type | Diesel | |
| Voltage | 380V | Usage | Water Well | |
| Condition | New | Power(W) | 65KW |
Product Description
1. The applications of FY200 crawler type gas drilling rig
l civil engineering drilling
l geothermal drilling
l drilling with large diameter
l deep drilling footage
l fast, flexible and efficient.
2.The specifications of FY200 crawler type gas drilling rig
Model | FY200 | |
Gross weight | t | 4.6 |
Dimension | mm | 3800*1600*2450 |
Aperture | mm | 140-325 |
Drilling depth | m | 200 |
Feed stroke | mm | 3000 |
Travel speed | km/h | 2.5 |
Grade ability | max. | 30° |
Rising height from ground | mm | 250 |
Wind pressure | mpa | 1.7-3.0 |
Air consumption | m³/min | 17-35 |
Engine power | kw | 65 |
Rotary speed | rpm | 50-70 |
Rotation torque | n.m | 5000-6500 |
