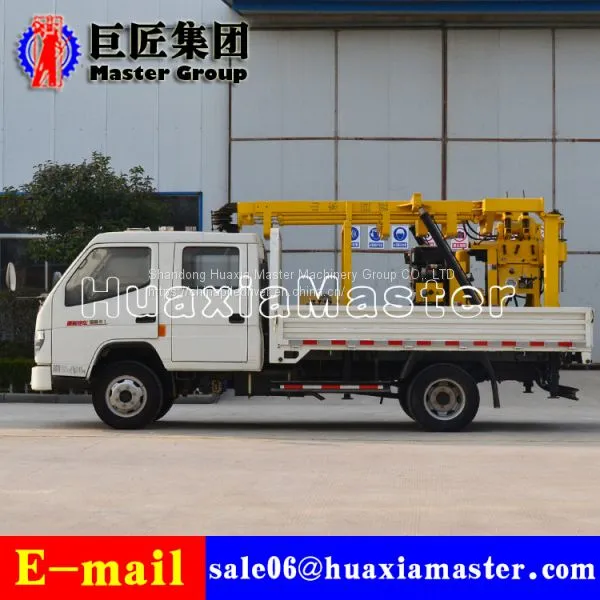

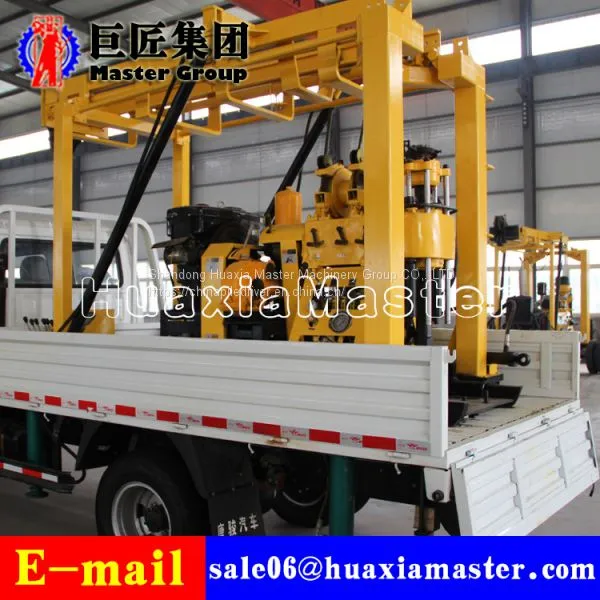

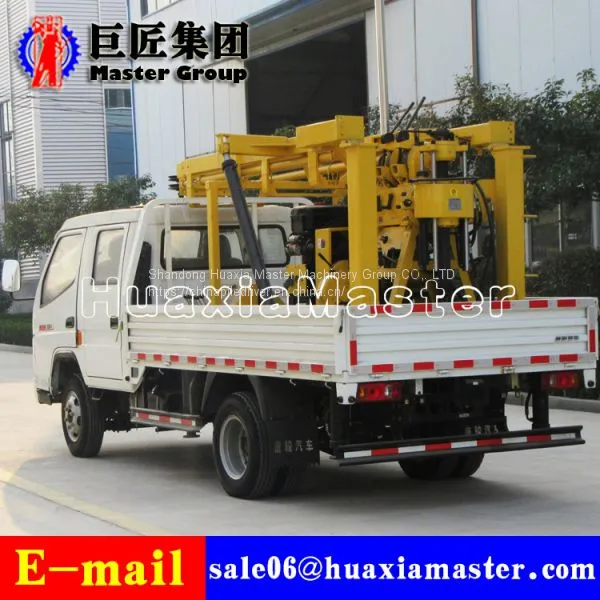

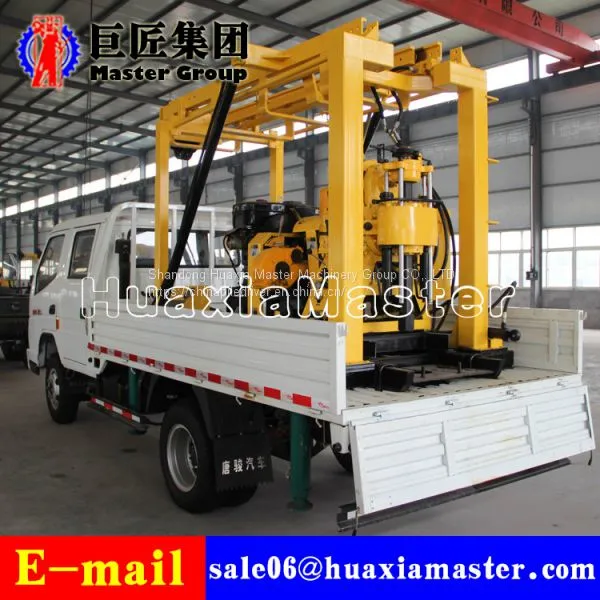

Help CenterXYC-200 Truck Mounted Water Well Drilling Rig Rock Core Borehole Drilling Machine For Sale
Related Products
-
XYC-200A High Quality Diesel Engine Tricycle Mountain Water Well Drilling RigUS$ 3000 - 3500MOQ: 1 Set -
XY-100 Small Portable Hydraulic Rotary Water Well Drilling Rig For SaleUS$ 1800 - 2100MOQ: 1 Set
-
XY-3 High Power Deep Depth Water Well Borehole Drilling Rig For SaleUS$ 3000 - 3500MOQ: 1 Set
-
KQZ-180D Wheel Gas-electric Linkage Drill Jack Hammer Dth Drilling Rig for Water Well for SaleUS$ 1800 - 2000MOQ: 1 Set
-
KQZ-200D Wheel Dth Drilling Rig Water Well Jack Hammer With Gas-electric Linkage DrillUS$ 2000 - 2200MOQ: 1 Set
1. The features of XYC-200 truck mountain water well drilling rig
l XYC-200 is a multi-function hydraulic vehicle mounted rotary spindel drilling rig.
l The Tang Jun goldlika automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis, the layout is reasonable and compact, it’s easy to operate.
l It configures BW160 mud pump, high pressure and big flow, which can ensure drilling depth and diameter.
l The rig has shifting device, it can move on the vehicle, convenient to operate while drilling.
l Hydraulic lifting and landing type automatic Telescopic drilling tower is safe and convenient to operate.
2. The applications of XYC-200 vehicle drilling rig
Water well,field irrigation well, engineering water well,precipitation well and so on; geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting.
3.The specifications of XYC-200 water well drilling rig
XYC-200 vehicle drilling rig | ||||
Drilling depth(m) |
30-200 |
|||
Drilling hole diameter(mm) |
300-75 |
|||
Drilling angel(mm) |
90 |
|||
Spindle rotating speed(r/min) |
64/128/287/557 |
|||
Spindle stroke(mm) |
450 |
|||
Windlass lifting power (single line)(Kg) |
1600 |
|||
Windlass capacity In terms of rope length |
35 |
|||
Windlass lifting speed(r/s) |
17/35/75/151 |
|||
Wire-rope diameter(mm) |
12.5 |
|||
Drilling tower height(mm) |
7000 |
|||
Drilling tower effective height(mm) |
6500 |
|||
Active drilling Pipe |
59*53*4200mm |
|||
Drilling pipe (mm) |
42/50/60 |
|||
Drilling rig weight(kg) |
1150 |
|||
Engine |
model |
ZS1115 diesel engine |
||
rated power |
14.7kw/2200rpm |
|||
|
BW-160 mud pump |
rated flow(l/min) |
160 |
||
rated pressure(mpa) |
1.3 |
|||
driven power(kw) |
5.15 |
|||
main engine weight(kg) |
190 |
|||
|
External dimension(mm) |
1110*725*965 |
|||
|
Chassis
|
model |
95hp light truckdual row column plate light card 3.3 meterdual row column plate light card |
||
driven-type |
4*2 |
|||
|
Engine
|
model |
quanchai 4B2-95C40 |
||
|
emission standard |
GB3847-2005,GB17691-2005 |
|||
|
rated power (kw) |
70 |
|||
|
rotating speed (r/min) |
3200 |
|||
