Home > Products > water well drilling rig > FY260 crawler type pneumatic rock core drilling rig water well drilling machine

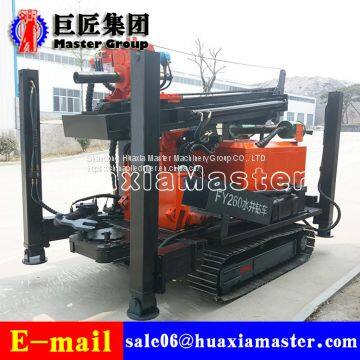

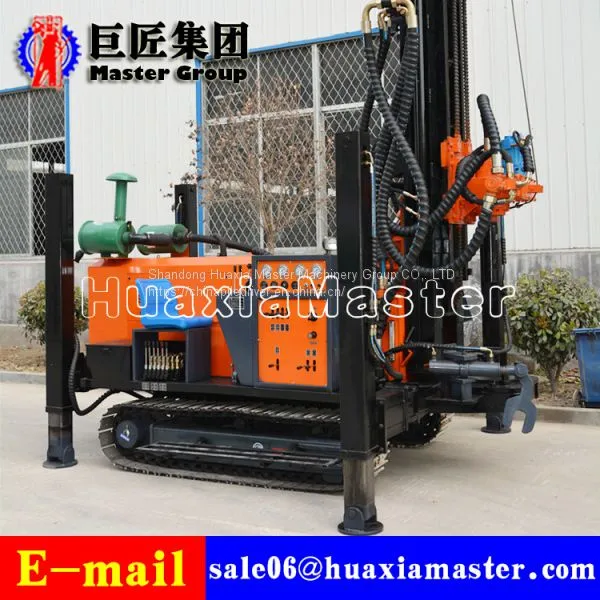

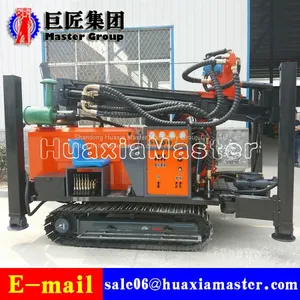

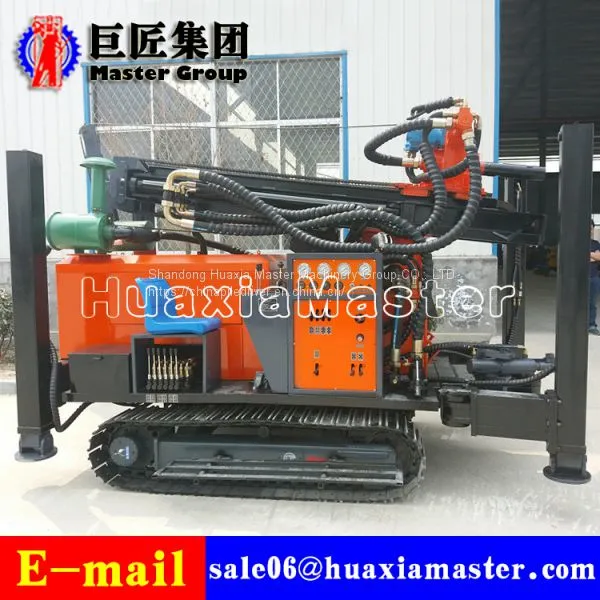

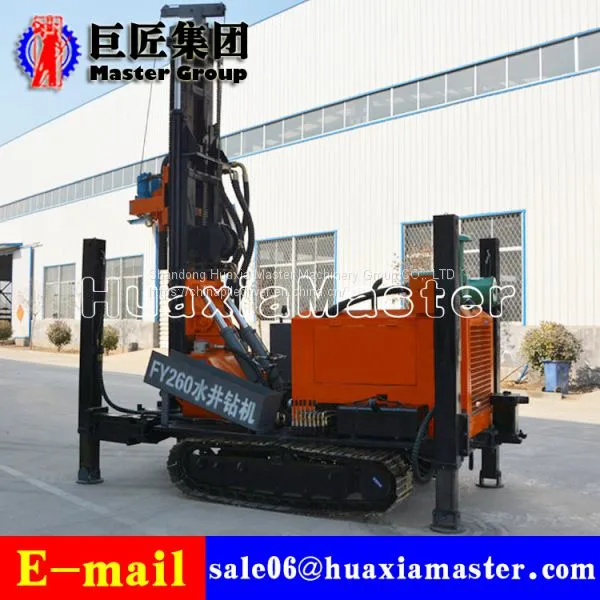

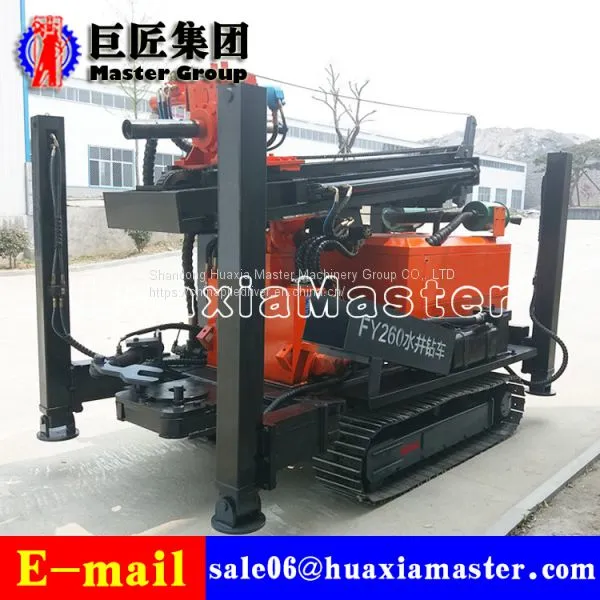

FY260 crawler type pneumatic rock core drilling rig water well drilling machine
USD $3200 - $3500
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A
- 7 days
You May Like
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | Huaxia Master | Place of Origin: | China | Model Number: | FY260 |
| Type: | Rotary Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 6 months | Weight: | 6.2T | Dimension(L*W*H): | 3900*1950*2550 MM |
| Power Type: | Diesel | Voltage: | 380V | Usage: | Water Well |
| Condition: | New | Power(W): | 85KW |
Product Description
1. The applications of FY260 crawler type water well drilling rig
l civil engineering drilling,
l geothermal drilling,
l drilling with large diameter
l deep drilling footage
l fast, flexible and efficient.
2. The specifications of FY260 crawler type water well drilling rig
Model | FY260 | |
Gross weight | t | 6.2 |
External dimension | mm | 3900*1950*2550 |
Aperture | mm | 140-325 |
Drilling depth | m | 260 |
Feed stroke | mm | 3000 |
Travel speed | km/h | 2.5 |
Grade ability | max. | 30° |
Rising height from ground | mm | 250 |
Wind pressure | mpa | 1.7-3.0 |
Air consumption | m³/min | 17-35 |
Engine power | kw | 85 |
Rotary speed | rpm | 40-70 |
Rotation torque | n.m | 7000-9000 |
