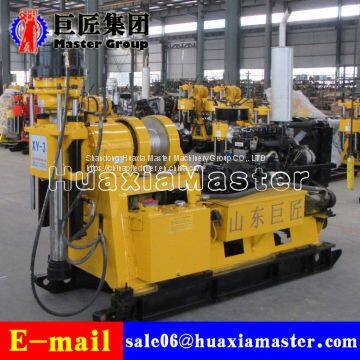

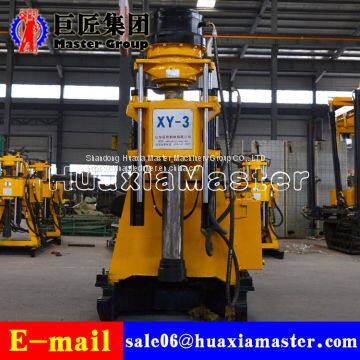

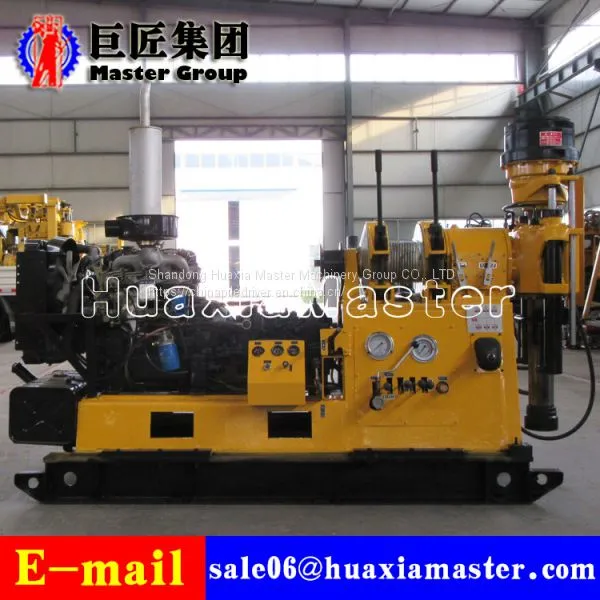

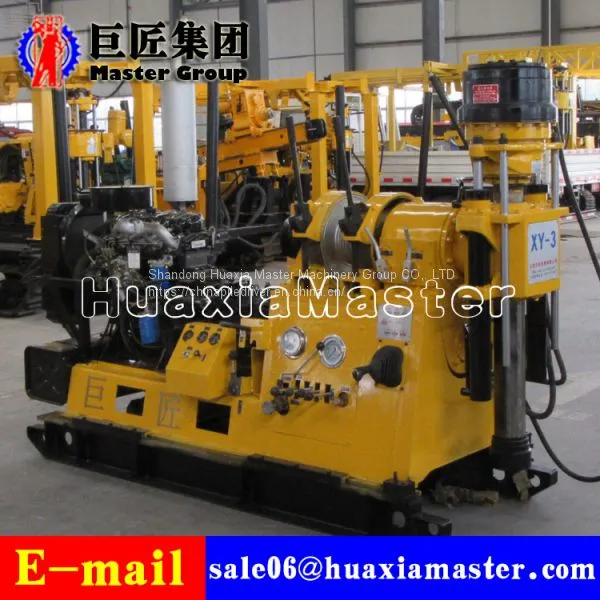

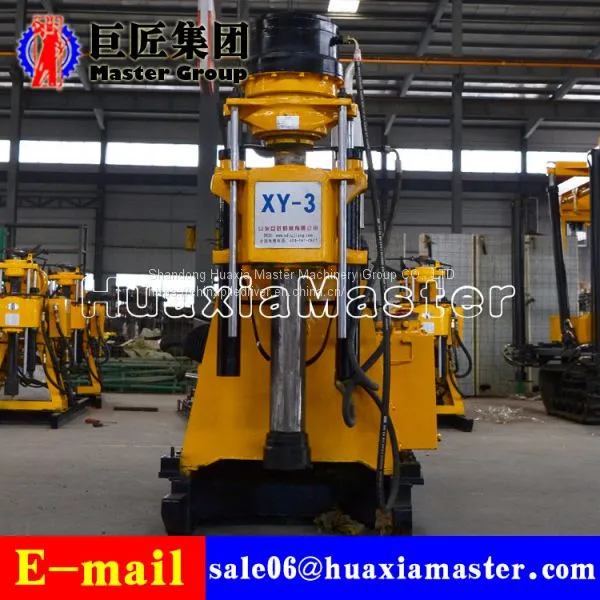

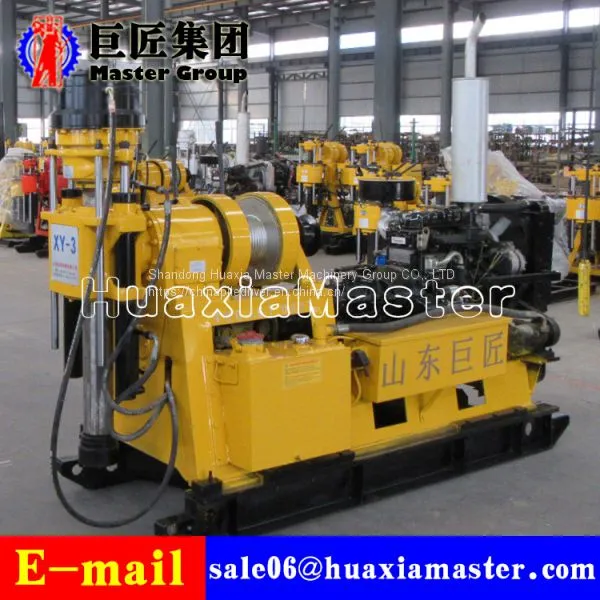

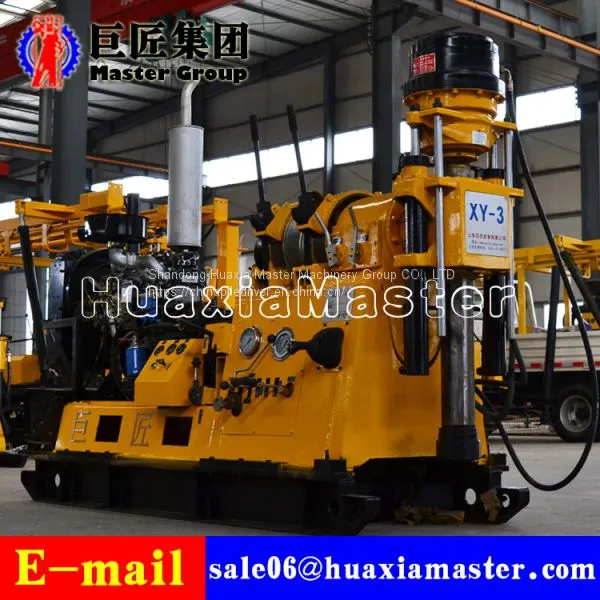

Help CenterXY-3 High Power Deep Depth Water Well Borehole Drilling Rig For Sale
Related Products
-
KQZ-180D Wheel Gas-electric Linkage Drill Jack Hammer Dth Drilling Rig for Water Well for SaleUS$ 1800 - 2000MOQ: 1 Set -
KQZ-200D Wheel Dth Drilling Rig Water Well Jack Hammer With Gas-electric Linkage DrillUS$ 2000 - 2200MOQ: 1 Set
-
FY200 Crawler Pneumatic Rock Drilling Rig Bore Well Drilling Machine For SaleUS$ 2200 - 2300MOQ: 1 Set
-
FY260 Crawler Type Pneumatic Rock Core Drilling Rig Water Well Drilling MachineUS$ 3200 - 3500MOQ: 1 Set
-
FY300 Fast Rock Core Drilling Rig Air Water Well Drilling Machine for SaleUS$ 3000 - 3500MOQ: 1 Set
1. The features of XY-3 bore well drilling machine
l XY-3 water well drilling machine adopts CG140 model auto transmission, with 10 rotation speed series and reasonable speed range, with eight forward rotation gears and two reverse rotation gears, it’s high speed, strong stroke and wide scope of application.
l With large torque, strong bearing capacity, it can realize long distance control speed change,and convenient operation.
l The power of the installation is large, with two reverse speed, which is convenient to deal with accidents.
l Equipped with normally closed hydraulic chuck, operation is flexible and reliable
l It can realized the independent operation of the vertical shaft and the hoist
l The diameter of the vertical shaft through the hole is large and can be replaced with a large six party active drill rod
2. The specifications of XY-3 bore well drilling machine
Drilling depth |
600m |
Borehole diameter |
300-75mm |
Maximum open hole diameter |
300mm |
End hole diameter |
75mm |
Drilling pipe diameter |
60mm |
Drilling angle |
90°-65° |
Spindle | |
Rotating speed |
30-1050r/min |
Rotating stroke |
29-137r/min |
Stroke |
600mm |
Inner diameter |
96mm |
Lifting force |
6000kg |
Winch | |
Max.single line lifting speed |
0.5-1.9m/s |
Wire rope diameter |
12.5mm |
Max.single line lifting force |
4000kg |
Roll length |
50m |
Mud pump | |
Type |
horizontal three cylinder BW-250 |
Displacement |
250L/min |
Work pressure |
80kgcm² |
Water inlet pipe diameter |
75mm |
Water outlet pipe diameter |
50mm |
Gear Oil pump | |
Duplex gear oil pump |
CBF-F63/25 |
Displacement&pressure |
63l/min&20mpa |
Water outlet pipe diameter |
25l/min 20mpa |
Power | |
Diesel engine |
39kw |
Electric motor |
22kw |
Weight size | |
Weight |
1800kg |
Dimension |
2500*900*1800mm |
