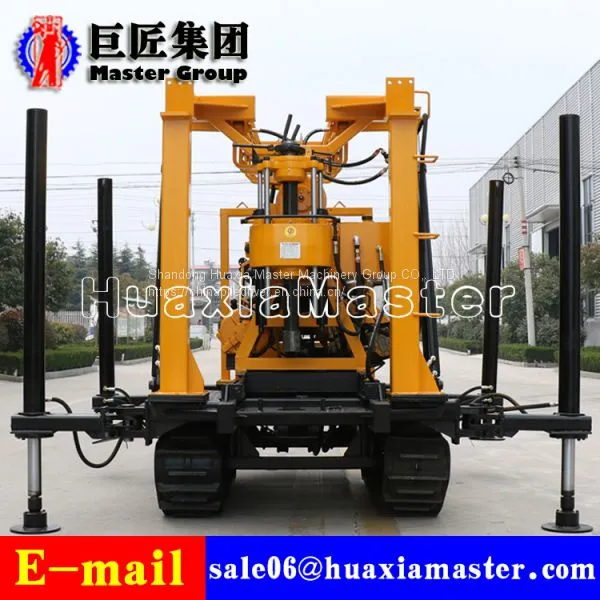

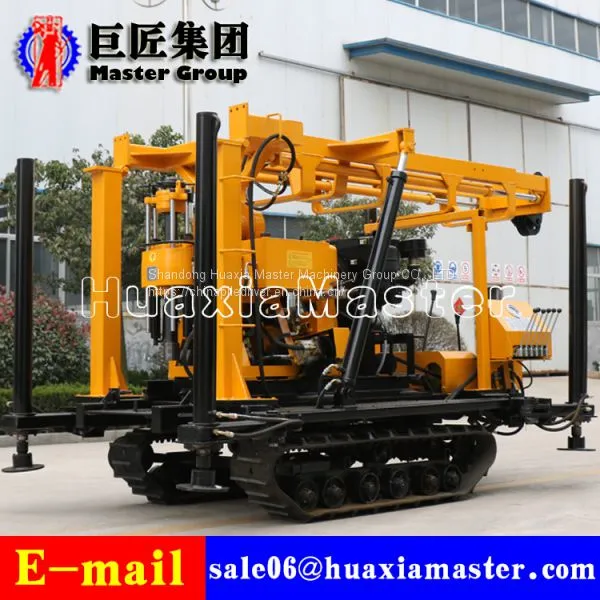

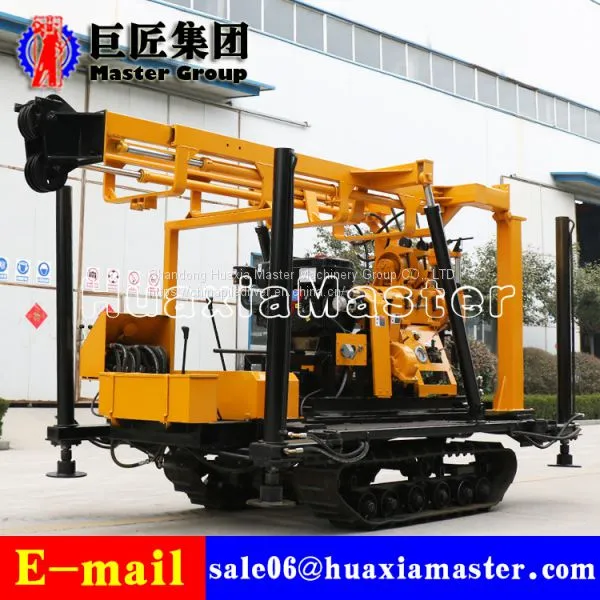

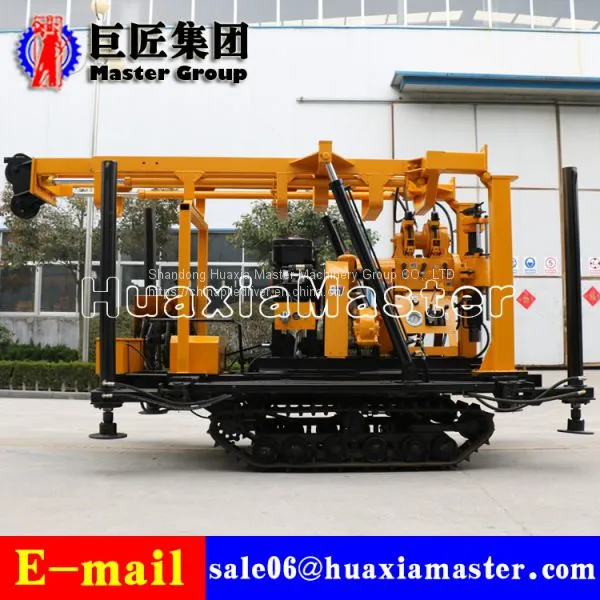

Help CenterXYD-200 Portable Rotary Rock Core And Soil Drilling Rig Water Well Drilling Machine With Crawler
Related Products
-
XYC-200 Truck Mounted Water Well Drilling Rig Rock Core Borehole Drilling Machine For SaleUS$ 3000 - 3500MOQ: 1 Set -
XYC-200A High Quality Diesel Engine Tricycle Mountain Water Well Drilling RigUS$ 3000 - 3500MOQ: 1 Set
-
XY-100 Small Portable Hydraulic Rotary Water Well Drilling Rig For SaleUS$ 1800 - 2100MOQ: 1 Set
-
XY-3 High Power Deep Depth Water Well Borehole Drilling Rig For SaleUS$ 3000 - 3500MOQ: 1 Set
-
KQZ-180D Wheel Gas-electric Linkage Drill Jack Hammer Dth Drilling Rig for Water Well for SaleUS$ 1800 - 2000MOQ: 1 Set
1.The features of XYD-200 water well drilling rig

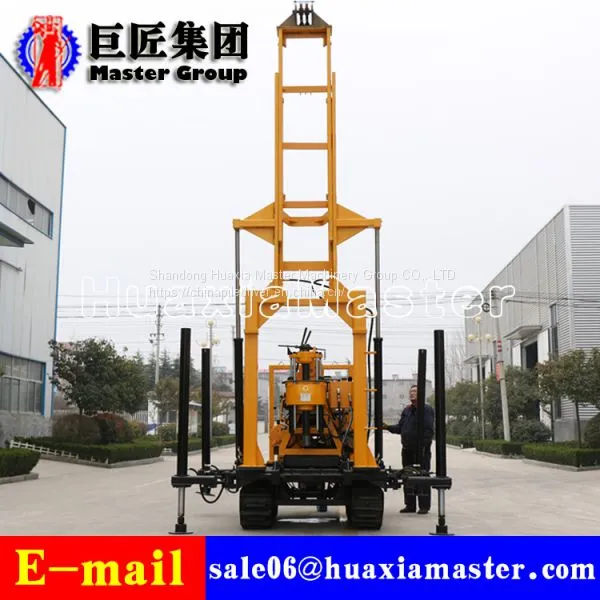

l Drilling rig uses automatic Telescopic drilling rig,it uses two high-strength cylinders to support.There is a group of hydraulic valves to control supination of drill tower so that it saves time and effort, safe and reliable when user operates, the maximum for the user to create benefits.
l The chassis uses a rubber belt track so that the weight is light,the cost of life cycle is lower.It can reduce noise of the vehicle walking mechanism,reduce car body’s shake,reduce the oil consumption.It can walk on the pavement of city and not hurt the pavement.
l The chassis comes with four high-strength threaded legs(or Hydraulic high leg) the threaded legs installate and adjust is fast and convenient, can be used for work plane leveling.It can make loading and unloading reduce the cost of to improve efficiency.It also can be used as auxiliary support when the track drilling rig is working.
l Using 48V electric starting diesel engine reduced the operate's labour intensity greatly.Especially in cold season,when diesel engine start hardly,it will show superiority vastly.
l The machine is equipped with BW-160 independent mud pump,the pump flow and pressure are big,the maintenance is convenient,the parts of the machine are convenient to buy all over the country.
1. The specifications of XYD-200 water well drilling rig
XYD-200 drilling rig | |
Drilling depth |
200m |
Maximum opening hole diameter |
300mm |
End hole diameter |
75mm |
Active drilling pipe |
53*59*4200mm |
Drilling pipe diameter |
50/60mm |
Drilling angle |
90°-75° |
Matched power (diesel engine) |
16.2kw 2200r/min |
Weight/dimension |
2400kg, 3800*1950*2700 |
Spindle | |
Spindle speed |
64/128/287/557r/min |
Spindle stroke |
450mm |
Windlass | |
Single rope lifting force |
24kn |
Single rope lifting speed |
0.12/0.22/0.49/0.95m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Windlass capacity in terms of rope length |
35m |
Drilling Tower | |
Rated load |
5t |
Effective height |
6m |
Tower leg diameter |
89mm |
Mud pump | |
Model |
BW160 |
Flow |
160l/min |
Maximum pressure |
1.3mpa |
Reciprocating frequency |
165r/min |
Water inlet pipe diameter |
51mm*4.5m |
High pressure water outlet pipe diameter |
32mm*6m |
