Ultra High Pressure Water Jet Stone and Metal Cutting Machine With 410 MPa Pump and 1500*2000 Cutting Table
US$ 35,000 - 87,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
APW
Place of Origin:
Liaoning, China
Model Number:
APW41037Z-A12-1520BA
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Price but Good Performance High Pressure Waterjet CutterUS$ 35,000 - 87,000MOQ: 1 Set -
Five-axis Waterjet Cutting MachineUS$ 30,000 - 90,000MOQ: 1 Set
-
Water Jet Cutting Machine With KMT Jetline PumpUS$ 35,000 - 87,000MOQ: 1 Set
-
APW41037Z-A12-3020BA Water Jet Cutting Machines PricesUS$ 20,000 - 40,000MOQ: 1 Set
-
CNC Glass Cutter KMT PumpUS$ 35,000 - 87,000MOQ: 1 Set
Brand Name
APW
Place of Origin
Liaoning, China
Model Number
APW41037Z-A12-1520BA
Condition
New
| Technical Information - APW Waterjet System Components | |||||||||||
| APW41037Z-A12 Intensifier Pump | |
||||||||||
| Max discharge of SERVO oil pump: | 90L/min | ||||||||||
| Max water discharge: | 3.7L/min | ||||||||||
| Max available orifice diameter: | 0.33mm | ||||||||||
| Max pressure: | 410Mpa | ||||||||||
| Continuous working pressure: | 360 ~ 380MPa | ||||||||||
| Main motor power: | 37KW(50HP) | ||||||||||
| Power supply: | 380V/50HZ/3PH | ||||||||||
| Max.oil pressure: | 20Mpa | ||||||||||
| Length/width/height: | 1745/1045/1350 | ||||||||||
| Weight: | 1200kg | ||||||||||
| Specification |
|
||||||||||
| Intensifier | A&V(made in USA) | ||||||||||
| Main Motor | Siemens | ||||||||||
| Hydraulic Pump | Rexroth servo hydraulic pump | ||||||||||
| PLC | Omron | ||||||||||
| Heat Exchanger | Water/Oil panel cooler | ||||||||||
| Control System | LP/HP auto control | ||||||||||
| Temperature Display | Digital Temperature Display | ||||||||||
| Shock Absorber | Four corners of the motor | ||||||||||
| Directional Valve | Taiwan YUKEN | ||||||||||
| Accumulator Volume | 1.2L | ||||||||||
| Low Pressure Filter | 10um | ||||||||||
| Cutting Water Inlet Pressure | 0.3Mpa | ||||||||||
| Cooling Water Inlet Pressure | 0.3Mpa | ||||||||||
| High Pressure Outlet Connections | M16 x1.5 | ||||||||||
| Oil level and oil temperature sensor | Standard Components | ||||||||||
| |
APW1520BA Cutting Table | ||||||||||
| Structural style | Bridge style | ||||||||||
| X and Y axis Travel | 1500mm×2000mm | ||||||||||
| Z-axis Travel | 150mm | ||||||||||
| Control accuracy | ±0.01mm | ||||||||||
| Cutting accuracy | ±0.1mm | ||||||||||
| Servo motor specification | 0.75KW 1.0KM 1.5KW | ||||||||||
| X-axis and Y-axis Max. moving speed | 6000mm/min | ||||||||||
| Z-axis Max. moving speed | 1000mm/min | ||||||||||
|
|
Specification | ||||||||||
| Cutting Head | 3-Axis | ||||||||||
| Way of Drive | AC Servo | ||||||||||
| Servo System | Yaskawa Servo Motor | ||||||||||
| Linear guide | SKF (America) | ||||||||||
| Ball Screw | Ipiranga (Spain) | ||||||||||
| Nozzle and Orifice | America | ||||||||||
| Environmental Temp. | 2-40 °C | ||||||||||
| Atmosphere Pressure | 86Kpa~106Kpa | ||||||||||
| Dust Concentration | Not More than 10mg/m3 | ||||||||||
| X, Y-Axis Structure | Aluminium Structure | ||||||||||
| Water Tank | Coated Stainless Steel | ||||||||||
| Main Characteristics of CNC System | |
||||||||||
| EVOC Industrial PC | |||||||||||
| 19 Inch LCD Monitor | |||||||||||
| Support DXF and NC code file | |||||||||||
| Forward and backward processing function | |||||||||||
| Even pace control function | |||||||||||
| Partial and smooth processing modes | |||||||||||
| Small arcs speed auto processing function | |||||||||||
| Circle processing function | |||||||||||
| Coordinate memory retention function | |||||||||||
| Double increase and decrease speed data function | |||||||||||
| Auto Abrasive Delivery System | |
||||||||||
| Max. Inlet Air Pressure | 0.6Mpa | ||||||||||
| Min. Inlet Air Pressure | 0.2Mpa | ||||||||||
| Abrasive Capacity | 225Kg | ||||||||||
| Min. Inlet Air Flow | 0.028 m3/min | ||||||||||
| Operating Air Flow | 0.005 m3/min | ||||||||||
| Self-feeding Control | |||||||||||
| Air Valve to prevent jams and breakages | |||||||||||
| Self sealing | |||||||||||
| Options | |
||||||||||
| 4-Axis Cutting Head | Cutting angle 0° - 4° | ||||||||||
| 5-Axis Cutting Head | Cutting angle ±45° | ||||||||||
| Multiple Cutting Head | |||||||||||
| Multiple Beams | |||||||||||
| Auto Height Adjustment System | |||||||||||

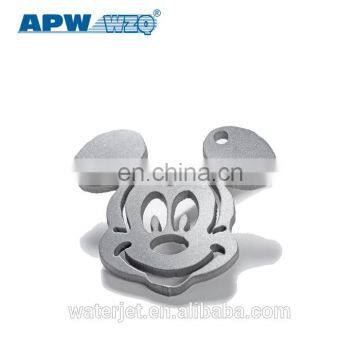

This waterjet machine is able to be used in METAL cutting.
CNC ultra-high pressure cutting machine is to use intensifier pump to pressurize normal tap water to 100-300Mpa in a split second. Then convert water pressure to dynamic energy through diamond orifice mount assembly. This creates a very high velocity beam of waterjet to generate high speed friction to make cutting. It is suitable for cutting almost all the materials, such as glass, marble, metal,rubber and wood , and many advantages of it will be greatly found during different materials cutting.
