Standard specification
The pump
Max discharge of SERVO oil pump: 90L/min
Max water discharge: 3.7L/min
Max available orifice diameter: 0.33mm
Max pressure: 410MPa
Continuous working pressure: 360~380MPa
Main motor power: 37KW(50Hp)
Power supply: 380V/50HZ
Max.oil pressure: 20Mpa
Length/width/height 1745/1045/1350
Weight 1200kg

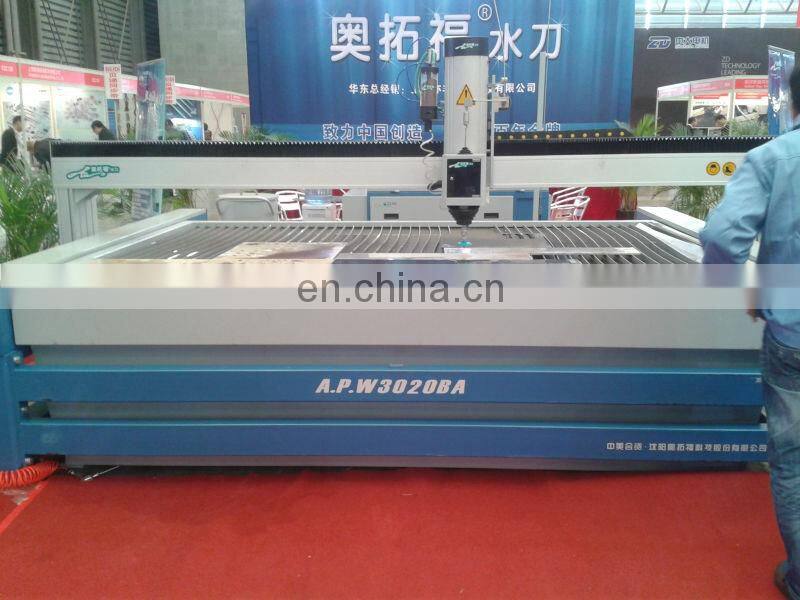

The cutting table
Structural style: Bridge style
X and Y axis Travel: 3000mm×2000mm
Z-axis Travel: 150mm
Control accuracy: ±0.01mm
Cutting accuracy: ±0.1-0.2mm
X-axis and Y-axis servomotor 0.75KW 1.0KM 1.5KW
Z-axis stepper motor 0.9N.m
X-axis and Y-axis Max. moving speed 6000mm/min
Z-axis Max. moving speed 1000mm/min
(Water tank: Powder coated stainless steel tank
Z-axis and sidestays: Extrudedaluminium profile)

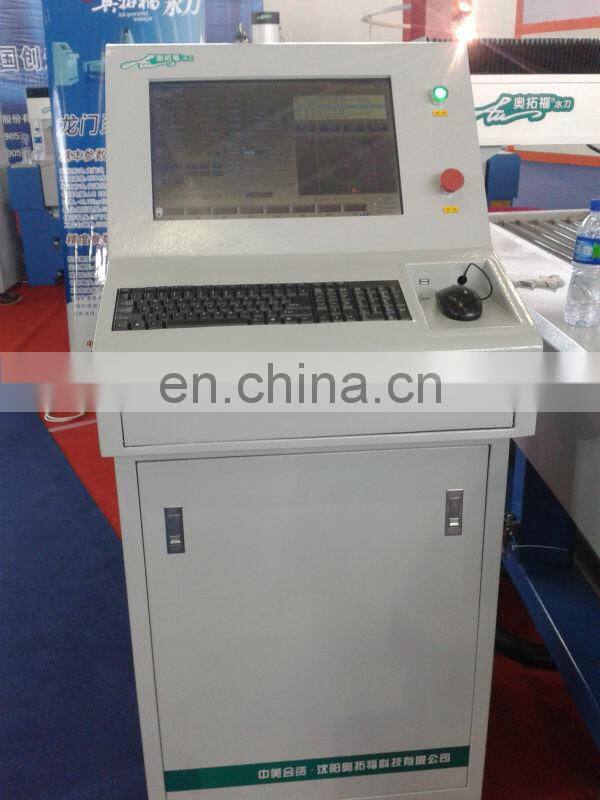

Controller
Main characteristics:
CNC control
IPC
19 Inch LCD
Using PLC instead of relay
Support DXF file and any auto programming software to produce NC code
Forward and backward processing function
Even pace control function
Partial and smooth processing modes
Small arcs speed auto processing function
Circle processing function
Coordinate memory retention function after outage of power supply
Double increase and decrease speed data function
It allows pause, stop and continue at any point during operation of the machine
It allows to program dwell time
