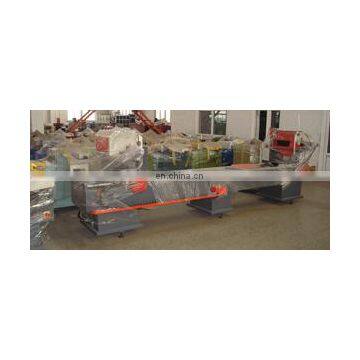

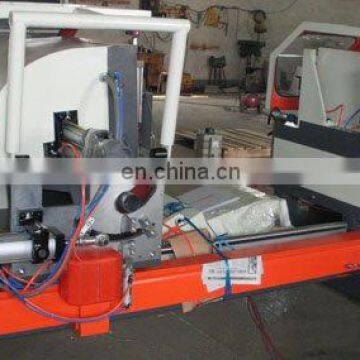

Aluminium Alloy Profile Double-head Cutting Saw
1.Main Features
The main axle of the saw is made precisely highly, and is specialized for the hard ally saw. The go and back of the cutting can synchronous with the left and right moving of the head of the machine, is made by the bearing pair. The moving of the saw is motivates by the hydraulic damper cylinder. The range of the production is very large , and the length of cutting can arrive 4200mm, the cutting angles are 90º,45º and 22.5º. They can change into another automatically. The frame can go and back automatically with the head of the machine.The safety precaution can up and down with the saw safely.The air valves control the corner cylinder, and save the electricity of the machine.
2.Technique Parameter
Model | LJZ2 -500x4200 |
Power Supply | 380V 50Hz |
Input Power | 2.2KWx2 |
Air pressure | 0.5-0.8Mpa |
Blade rotational speed | 3100r/min |
Saw blade specification | D=500mm d=30mm |
Cutting length | Min380mm Max4200mm |
Cutting angles | 90º,45º(22.5º) |
Outside dimension | 5685*1750*1990mm |
Weight(about) | 1800Kg |
3.Other Related Machines for Aluminum Profile
Product | Specification |
Aluminum Cutting Machine | LJZ2 -500x4200 Double Miter Precision Saw for Aluminum Profile |
LJZ2S -500x4200 CNC Double Miter Precision Saw for Aluminum Profile | |
LJZ2 -500x4200 Digital Double Miter Precision Saw for Aluminum Profile | |
Aluminum Milling Machine | LFX2-300x100 Double-head Copy Milling Machine for Aluminum Door & Window |
LDX2-250 End-milling Machine for Aluminum Door and Window | |
Aluminum Corner Crimping Machine | LZJ02-120 Aluminum Corner Crimping Machine |
LJJZ2-100×1800 Aluminum Two-head Corner Crimping Machine | |
LJJZ4-100x1800x3000 Aluminum Four-head Corner Crimping Machine | |
Other Aluminum Machine U May Use | LWJ-100 Aluminum Curve Machine |
LTA6-50 Multi-functional Punching Machine for Aluminum Alloy Sections | |
LDZZ4-13 Drill Combination for Aluminum-plastic Doors and Windows |
