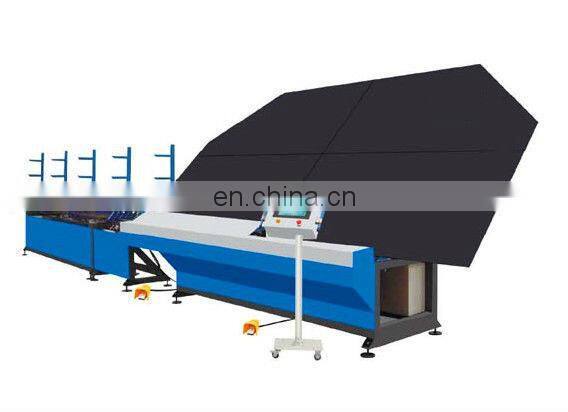

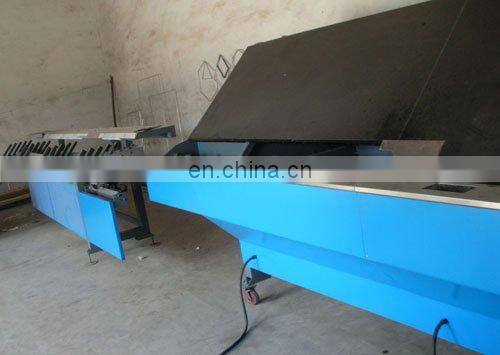

Automatic aluminum bar bending machine for insulating glass
1. Features
a. It is special equipment for insulating glass aluminum spacing frame rectangle bending
b. PLC control, exact orientation, moving smoothly, and big range
1.Advanced PLC automatically control system.
2.Can make out quadrilateral and polygon.
3.Accurate position,automatically baiting.
2. Technical Data
Voltage | AC 220V |
Air pressure | 0.5--0.8Mpa |
aluminum bar specification | 5.5-20mm |
processing profile dimension: | Min250*250mm Max 2000*2000mm |
Max feeding speed | 120m/min |
Contour dimension | 1000*2200*2600MM |
weight | 350kg |
3. Related Machiens
A. Pkg: for long time transportation
B. Terms: Freight On Board (FOB Qingdao)
C. From Qingdao, China
D. Delivery Time: During 20 Days After We Receive Your First Payment.
E. Payment: Telex Transfer (T/T), 30% be Paid as deposit, and the rest 70% is paid before delivery the
machine.
F. Guarantee period: 1 year from the date of customer receiving the machines
