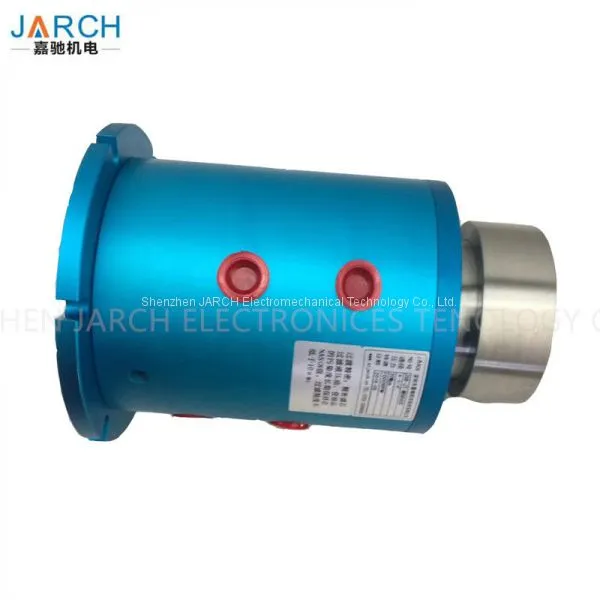

High pressure high speed rotary union water 2 4 6 multi channel hot oil rotary joint
MT Serial Low Speed Threaded Connection Single / Double Passages rotary union with ss304 rotor
Rotary Joints, also known as rotary couplings or Swivels, are a mechanical device used to transfer fluid (usually hydraulic oil) from a stationary system, to a rotary system.
Rotary Joints are used in wind turbines to deliver hydraulic fluid to the blade pitch actuators. Rotary Joints are
High pressure high speed rotary union water 2 4 6 multi channel hot oil rotary joint
Feature:
1.small sizes
2.light weight
3.small friction torque
4.balanced seal
5.stainless steel 304 rotor
High pressure high speed rotary union water 2 4 6 multi channel hot oil rotary joint
Quick Details:
| Material: Stainless Steel | Technics: Casting | Type: Coupling |
| Place of Origin: Shenzhen, China | Model Number: JSR-JT-MT |
Brand Name: JARCH |
| Connection: threaded connection | Shape: round | Head Code: round |
| Size: 3/8'' TO 4'' | Medium: water,oil,air | Rotor material: ss304 |
| Max speed: 400RPM | Max pressure: 7Mpa | Max temperature: 120℃ |
Applications:
• Paper Machinery
• steel, corrugating, textiles,
• Dyeing, Rubber, Plastics, Chemical,Machine tool
About Rotary Union
A rotary joint, also referred to as a rotary joint or rotating joint, provides a mechanical seal between a stationary supply pipe and a rotating drum or cylinder to permit the flow of heat transfer media into and/or out of the rotating roll. Heat transfer media typically used with rotary joints and rotating joints includesteam,water,hermal oil,coolant,airhydraulic oil.
G series rotary joint consists of two large precision bearings and seals principles of design using smooth, sealed bearing and wear to a minimum, extend the service life.
JARCH’s high-speed rotary unions are capable of containing very high pressure while rotating at high speeds. The materials used in the making of the high-speed rotary unions are aluminum, carbon steel, and, upon request, stainless steel, which provides outstanding corrosive resistance. We offer a variety of sizes in both American and Metric. We specialize in custom design that provides our customers with the exact specifications that they require. Speak to our knowledgeable and personable sales staff and they will be happy to assist in the creation of the prototype that will meet your needs.
Typical industrial uses for JARCH’s high-speed rotary unions include steam dryers, rubber mills, extruders, calendar rolls, air clutches, laminators, press rolls, manufacturing of machines, hydraulics, Machining Centers and related applications.
JARCH Company is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time:15 days after got the payment |
A:
If you want to costomize the special slip ring model, you need provide details as below:
a. Operatring speed(RPM)
b. The type of installation
c. Outline size
d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings
f. The signal type and related parameters(very important)
g. Operating temperature h.IP(sealing requirements)
2.How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
If you have any questions, pls contact us without any hesitation.
