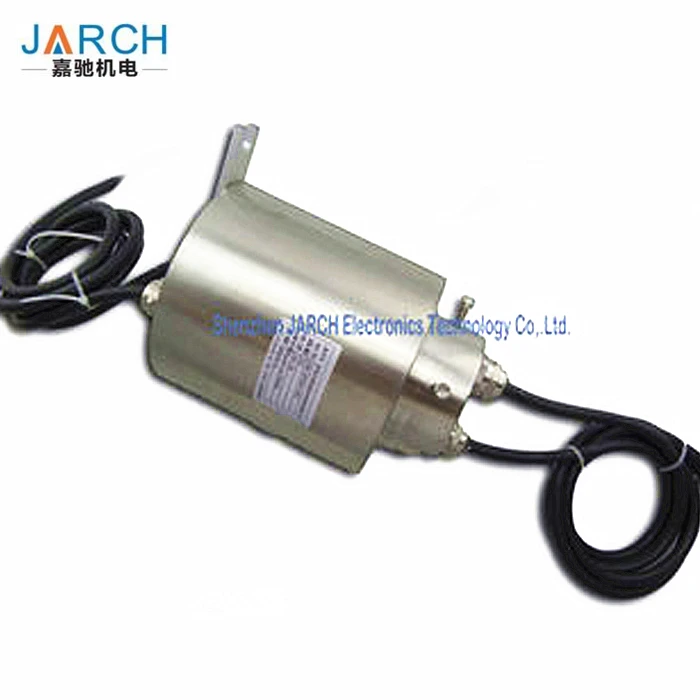

JARCH 4 circuits 15KW IP66 Protection Explosion Proof Slip Ring with Rotary Union
4 circuits Explosion Proof Slip Ring 15KW IP66 Protection Certified ID 50mm
Feature:
****ID/OD:50mm/170mm
****360.degree rotation axisJARCH
****Anti-rotation tab
****Working condition: -30℃~60℃
****Explosion proof up to GB
****Custom modifications to our stock products significantly reducing lead times and costs

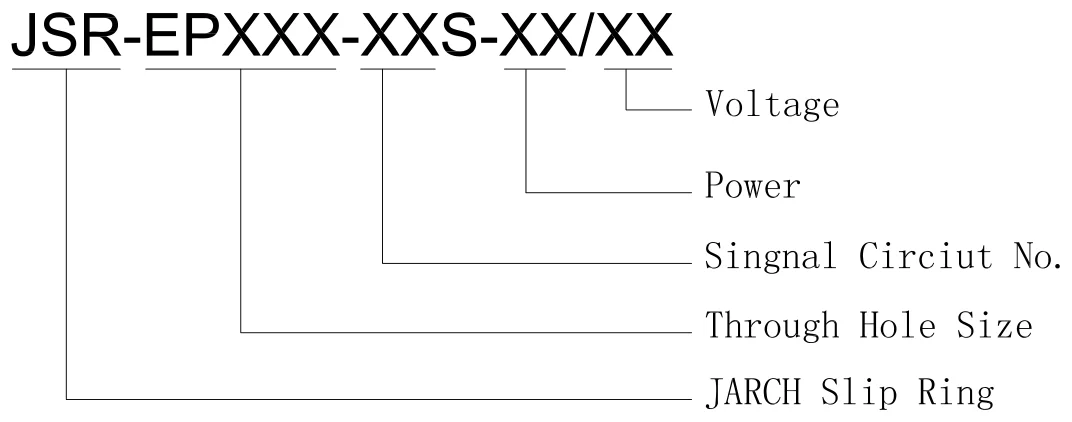

Model Explanation----JSR-EP050
Specifications:
| Rings | 2~24 | Current | 2A/5A/50A |
| Voltage | mV~400 VDC/VAC | Max speed | 100RPM |
| Through bore size | 50mm | Overall diameter | 170mm |
| Housing Material | Stainless Steel | Torque | 0.05N.m;+0.03N.m/6rings |
| Working life | 50million | Contact material | Gold-Gold |
| Electrical noise | Contact Resistance | ||
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® Awg26,Awg22 |
| Insulation resistance | 500MΩ@600VDC | Lead Lengths | 300mm(12") |
| Operating Temp. | -40°C to 80°C | Protection | IP66 |
| Materials | Lead Free, ROHS | Certified Mark | EX d IIC T6 Gb,DIP A21 Ta,T6. |
Explosion-proof slip ring has more safety and higher reliability, designed for use in the condition which is easy to explode, such as in oil platform, explosive material packing machine, , agro-product processing equipment, coal mine and spray finishing, etc.
Slip rings pass the electricity by rub between the brushes and rings, so it is not possible to prevent the spark in theory.Normal slip rings only pay attention to its electric property, but less to protection. So it is very dangerous to use normal slip rings in the condition which is easy to explode. Victory-way knows this, and we know the philosophy of the explosion and its protective measures.We design the explosion-proof conductive slip ring, which can be used in explosive gas atmospheres and explosive dust environment, with protection class IP66.
The slip rings passed EX test and got the certificate of conformity from CNEX (Nanyang), the Cer. No. : CJEx14.0807X Marking: EX d IIC T6 Gb,DIP A21 Ta,T6.

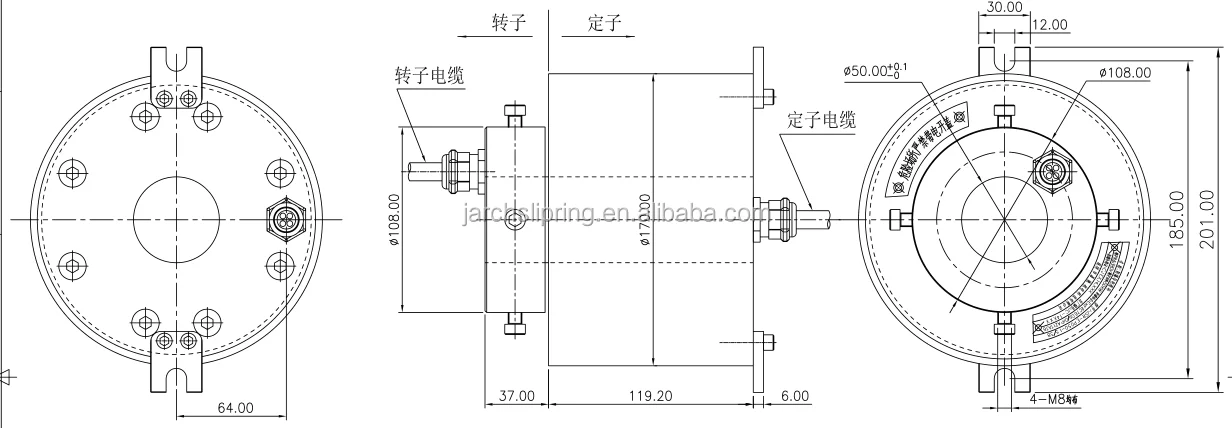

Dimensions:
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department
Benefits:
* Protection class IP66, IP68 for option;

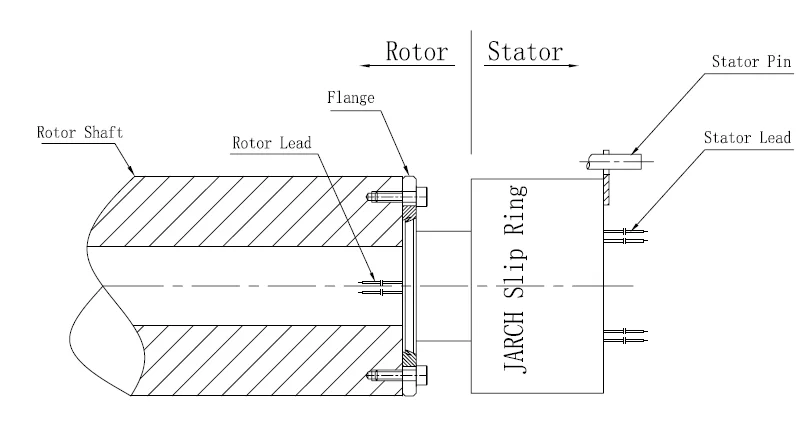

Installation Instructions--Flange mounted:
Shaft Mounted:
Applications:
- * Oil platform;
-
* Explosion-proof packing machine;
-
* Spraying equipments;
-
* Chemical equipments;
-
* Farming industry;
-
* Fit to use in explosive Gas and or Explosive Dust atmospheres
*********Main Products You May be Interested
Shenzhen JARCH Electronics Technology Co.,Ltd. is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
If you have any questions, pls contact us without any hesitation.
