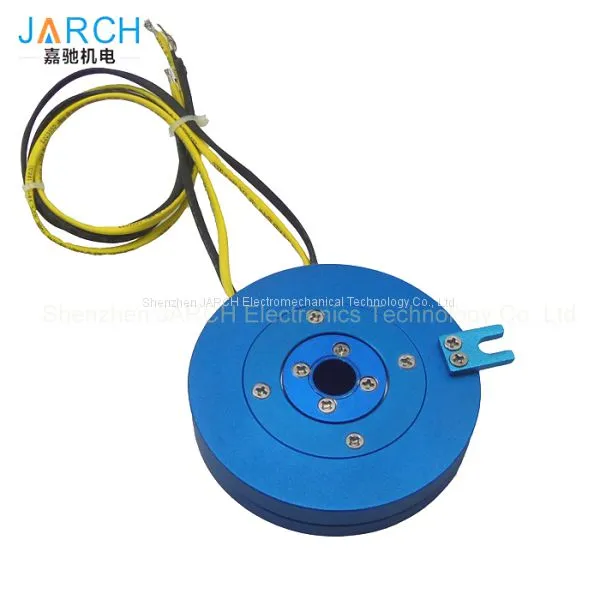

Hollow shaft slip rings flange mounted 2 singal pancke slipring
- 1000 Piece / Pieces per Month
- Yantian,Shenzhen
- T/T Credit Card PayPal Other Cash
- 7 days
- Through hole size 3mm-70mm Flat PCB pancake slip ring flanges connectors
- 45mm Flat through bore slip ring flanges pancake slipring
- Electrical slip ring transmitting rotary electric power slip ring flat with hole size 100mm
- Equal Shape and Flange Connection air hydraulic rotary joints unions replace Deublin 1500 KJC Eaton
- High speed water rotary union 1/2 NPT RH hydraulic kjc rotary joint
- Multi Passage Pneumatic Hydraulic High Pressure Rotary Union With 1.1Mpa Pressure , Round Shape Joint
Product Details
Brand Name: | JARCH | Place of Origin: | China | Model Number: | JSR-PS018-2S |
Product Description
Through hole 10a electric swivel slip ring rotary joint electrical connector
Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;
2,3,4,6,8,10 circuits version
The PS012, with 10A circiuts and 2 Signals, which we call our disk slip ring .
Specification:
Operating Speed | 0-200 rpm |
Number of Circuits | 2 ~ 10 |
Voltage | 240 VAC/DC |
Current Rating | 10A per circuit |
Temperature Range | -20°C to +80°C |
Contact Material | Gold to Gold |
Lead Size | 22# silver plated copper |
Lead Length | Standard 250 mm(9.843inch) |
Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
Insulation Resistance | 100 MΩ @ 500 VDC |
Electrical Noise | 5mΩMin |
Benefits:
Longer lead lengths availableI
Power and signal combinations
Rotor and stator lead exits
gold alloy brush,Gold plated rings
IP65 are optional
More thickness available
Dimensions:
Applications:
Filling equipment
Electrical test equipment.
Medical equipment.
Rotary table
Robotics
Laboratory equipment
Manufacturing and process control equipment
Installation Instructions:
Shaft mounted
Flange mounted
Packaging & Delivery:
Packaging Details: | Standard Export carton Package |
Delivery Details: | Delivery time:15 days after got the payment Shipping:BY DHL, FedEx, UPS or TNT...... |
