JARCH factory supplies high-tech disc slip ring, precision turntable, cable drum, intelligent toy conductive slip ring
Through hole 10a electric swivel slip ring rotary joint electrical connector

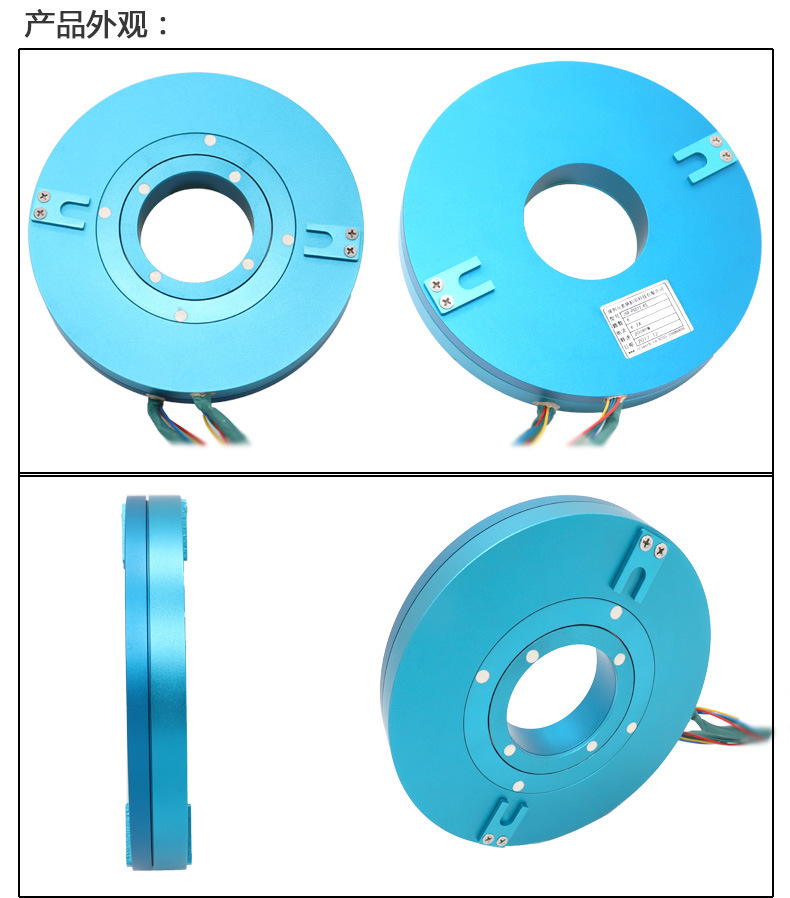

Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;
2,3,4,6,8,10 circuits version
The PS012, with 10A circiuts and 2 Signals, which we call our disk slip ring .

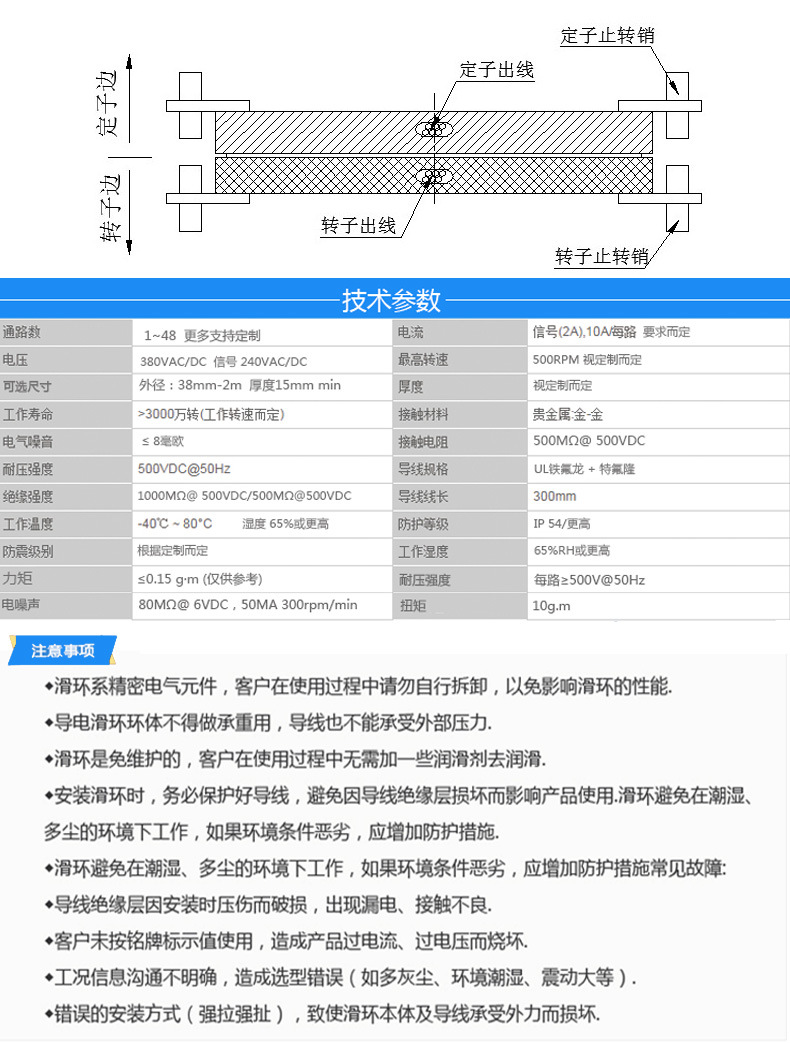

Specification:
| Operating Speed | 0-200 rpm |
| Number of Circuits | 2 ~ 10 |
| Voltage | 240 VAC/DC |
| Current Rating | 10A per circuit |
| Temperature Range | -20°C to +80°C |
| Contact Material | Gold to Gold |
| Lead Size | 22# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 5mΩMin |
Benefits:
Longer lead lengths availableI
Power and signal combinations
Rotor and stator lead exits
gold alloy brush,Gold plated rings
IP65 are optional
More thickness available
Applications:
Filling equipment
Electrical test equipment.
Medical equipment.
Rotary table
Robotics
Laboratory equipment
Manufacturing and process control equipment
Installation Instructions:
Shaft mounted
Flange mounted
Packaging & Delivery:
| Packaging Details: | Standard Export carton Package |
| Delivery Details: |
Delivery time:15 days after got the payment Shipping:BY DHL, FedEx, UPS or TNT...... |
