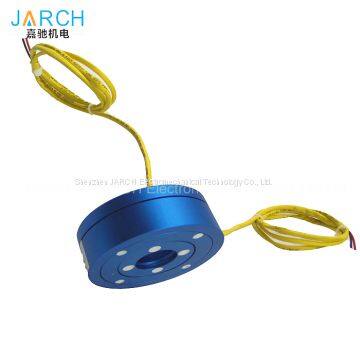

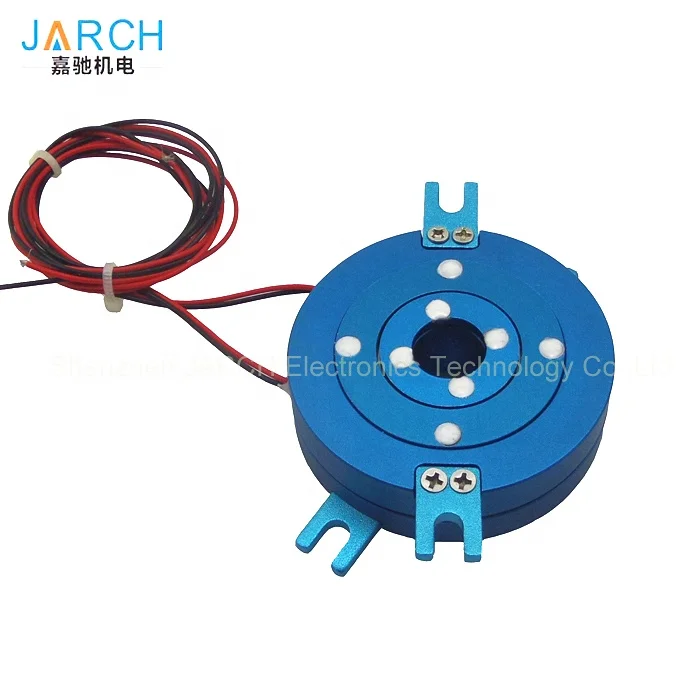

Through hole size 3mm-70mm Flat PCB pancake slip ring flanges connectors

Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;

2,3,4,6,8,10 circuits version

In certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used. The PS045 bore size 45mm, uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates

The PS012, with 10A circiuts and 2 Signals, which we call our disk slip ring .

Specification:

Operating Speed	0-200 rpm
Number of Circuits	2 ~ 10
Voltage	240 VAC/DC
Current Rating	10A per circuit
Temperature Range	-20°C to +80°C
Contact Material	Gold to Gold
Lead Size	22# silver plated copper
Lead Length	Standard 250 mm(9.843inch)
Dielectric Strength	≥500 VAC @50Hz, between each circuit
Insulation Resistance	100 MΩ @ 500 VDC
Electrical Noise	5mΩMin

Benefits:

Longer lead lengths availableI
Power and signal combinations
Rotor and stator lead exits
gold alloy brush,Gold plated rings
IP65 are optional
More thickness available

Dimensions:

Applications:

Filling equipment
Electrical test equipment.
Medical equipment.
Rotary table
Robotics
Laboratory equipment
Manufacturing and process control equipment

Installation Instructions:

Shaft mounted

Flange mounted

Packaging & Delivery:

Packaging Details:

Standard Export carton Package

Delivery Details:

Delivery time:15 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......
