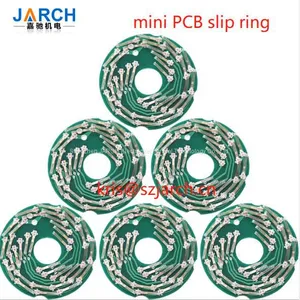

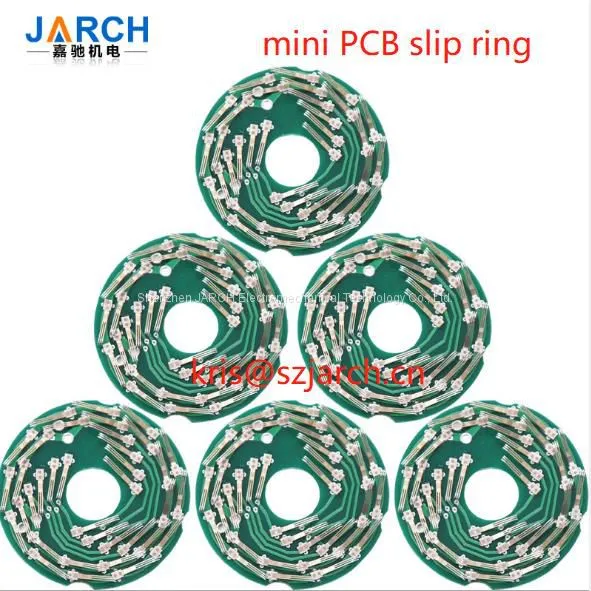

Help CenterSmall PCB Slip Ring Ultra Thin Disc Slip Ring Manipulator Special Slip Ring Customization for Precision Turntable
Related Products
-
PCB Slip Ring Flat Slip Ring Special Slip Ring for Manipulator Precision Turntable Disc Slip RingUS$ 100 - 300MOQ: 1 Piece -
PCB Disc Slip Ring Ultra Thin Slip Ring Disc Slip Ring Turntable Transmission Signal Special for Slip Ring Mechanical TurntableUS$ 100 - 300MOQ: 1 Piece
-
Low Noise 10A Per Circuit 250mm Lead Pancake Slip RingUS$ 50 - 200MOQ: 20 Pieces
-
ID 6-60mm 1-12 Rings Precious Metal Ip65 Flat Slip Ring,PCB Slip RingUS$ 50 - 200MOQ: 20 Pieces
-
Flanges Flat Sliprings 6A Per Circuit Through Bore Slip RingUS$ 50 - 200MOQ: 20 Pieces
JARCH Customizable disc conductive slip ring customizable disc collecting ring
Order no.: 006
machining customization yes
brand: jarch / Jiachi
model: jsr-ps006

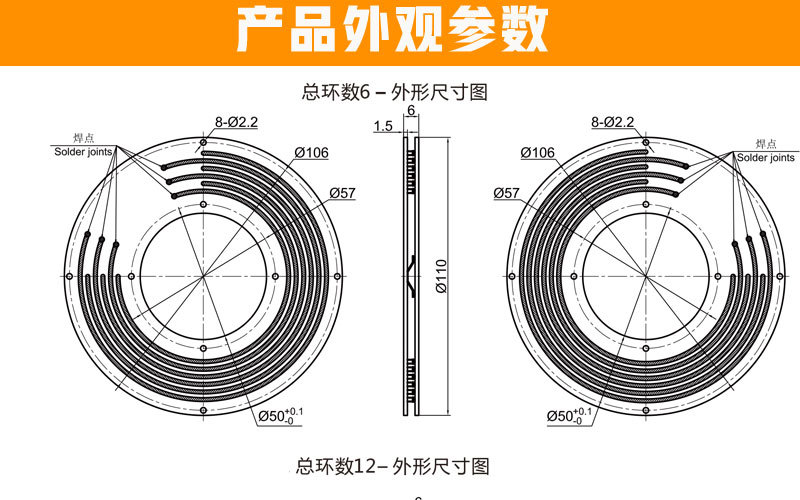

Specification: 6 mm-50 mm;
scope of application: rotating stage lamp, cable drum, surgical lamp, etc.;
product certification: CE RoHS
The PS012, with 10A circiuts and 2 Signals, which we call our disk slip ring .
Specification:
| Operating Speed | 0-200 rpm |
| Number of Circuits | 2 ~ 10 |
| Voltage | 240 VAC/DC |
| Current Rating | 10A per circuit |
| Temperature Range | -20°C to +80°C |
| Contact Material | Gold to Gold |
| Lead Size | 22# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 5mΩMin |
Benefits:
Longer lead lengths availableI
Power and signal combinations
Rotor and stator lead exits
gold alloy brush,Gold plated rings
IP65 are optional
More thickness available
Applications:
Filling equipment
Electrical test equipment.
Medical equipment.
Rotary table
Robotics
Laboratory equipment
Manufacturing and process control equipment
Installation Instructions:
Shaft mounted
Flange mounted
Packaging & Delivery:
| Packaging Details: | Standard Export carton Package |
| Delivery Details: |
Delivery time:15 days after got the payment Shipping:BY DHL, FedEx, UPS or TNT...... |
If you have any questions, please contact us without any hesitation.
|
Shenzhen JARCH Electronics Technology Co.,Ltd.
Main Item list: slip ring,rotary union,fiber optic rotary joint(FORJ),hose reel/cable reel,carbon brush,brush holder...
Customer Service: ATTN: Ms.Kris Yao E-mail: kris Phone&WhatsApp:86-13929708571 Skype/Kakao: krisyao313 Wechat: laoyao313 QQ: 3003854385
|
|
