Through hole 10a electric swivel slip ring rotary joint electrical connector
Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;
2,3,4,6,8,10 circuits version

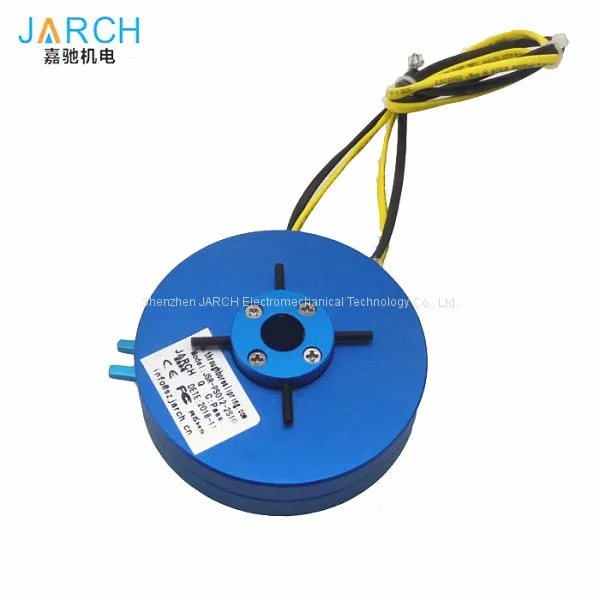

The PS012, with 10A circiuts and 2 Signals, which we call our disk slip ring .
Specification:
| Operating Speed | 0-200 rpm |
| Number of Circuits | 2 ~ 10 |
| Voltage | 240 VAC/DC |
| Current Rating | 10A per circuit |
| Temperature Range | -20°C to +80°C |
| Contact Material | Gold to Gold |
| Lead Size | 22# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 5mΩMin |
Benefits:
Longer lead lengths availableI
Power and signal combinations
Rotor and stator lead exits
gold alloy brush,Gold plated rings
IP65 are optional
More thickness available
Dimensions:
Applications:
Filling equipment
Electrical test equipment.
Medical equipment.
Rotary table
Robotics
Laboratory equipment
Manufacturing and process control equipment
Installation Instructions:
Shaft mounted
Flange mounted
Packaging & Delivery:
| Packaging Details: | Standard Export carton Package |
| Delivery Details: |
Delivery time:15 days after got the payment Shipping:BY DHL, FedEx, UPS or TNT...... |
