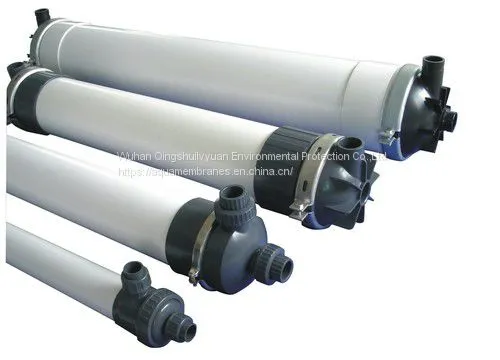

No Clogging,no Breaking Tubular Membrane
US$ 300 - 6000
MOQ: 10 Square Meters
Key Specifications
Get Latest Price
Brand Name:
QSLY
Place of Origin:
China
Model Number:
UF-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Wuhan
Delivery Detail:
7 days
Related Products
-
Tubular Membrane for Wastewater TreatmentUS$ 300 - 6000MOQ: 10 Square Meters -
UF Membrane for DesalinationUS$ 300 - 6000MOQ: 10 Square Meters
-
New New Products China Manufacturer uf Membrane FilterUS$ 1.5 - 50MOQ: 100 Pieces
-
UF MembraneNegotiableMOQ: 2 Pieces
-
HOLLOW FIBER UF MEMBRANE SEVENBORE UF MEMBRANENegotiableMOQ: 10 Pieces
Brand Name
QSLY
Place of Origin
China
Model Number
UF-1
| Membrane module diameter | A:Φ250×1500mm B:Φ250×2000mm |
Flux (25ºC,0.1MPa) |
250-500L/(m2·h) |
| Effective membrane area | A: 10.6m2 ; B: 14.6m2 | Max. feed pressure | 0.25MPa |
| Mean pore diameter | 0.03-1.0μm | Min. feed pressure | 0-0.18MPa |
| Membrane materials | UHMW-PE,PVDF Supports: UHMW-PE Separation layer:PVDF |
Back-washing pressure | ≤0.45MPa |
| Membrane outer diameter | Φ10mm | Back-washing methods | Combined pulse back-washing |
| Membrane inner diameter | Φ5mm | Water consumption during back-washing | 3-5% |
| Shell material of membrane module | UPVC | Air consumption during back-washing | 5 NL/m2 5 NL/m2 every time |
| Feed turbidity | ≤3500NTU | Air back-washing time | 60-120s |
| Permeate turbidity | Chemical cleaning cycle | 7-45day every time | |
| Power consumption per ton water | 0.16-0.32 W | Water recovery | 94-97% |
| Membrane lifetime | More than 5 years | Filtration type | Dead-end/ cross-flow |
