ELM IOS Super Mini Elm327 Bluetooth OBD2 Elm 327 4.0 OBD 2 Car Diagnostic-Tool Scanner Elm-327 OBDII Adapter Auto Diagnostic Tool

X-ELM  OBD II Scanner Car Engine Fault Code Reader CAN Diagnostic Scan Tool Bluetooth

Hightlight:

New, full-featured 327 APP now available

Bluetooth 4.0,Energy and Power saving

iOS ,Android,PC All Available

Real Time Data display

Works on older cars,From 1996 till Now

Communication protocol open to customers

Remote firmware upgrade

Compatiable for trucks. (8v-36v)

Multi-language available ,

Customize APP for clients

32 bits make running fast and High extendibility

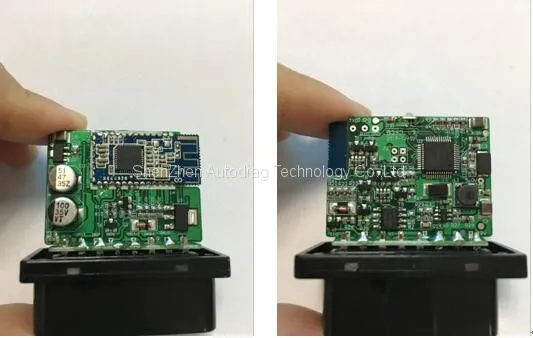

Small and exquisite High chip integration

Easy to use,good tool for all users

Completely self-developed Product

Description:

X-ELM is a completely self-developed diagnostic scan tool, Trip computer, logger, and real-time performance monitor. After proper installation the device will conduct a comprehensive inspection of the vehicle’s working conditions. and via Bluetooth module the data will be transmitted wirelessly to the smart phone providing vehicle condition monitoring. It is a useful gadget whether you are a DIY car owner or skilled mechanic. It is easily to plug in your car's OBDII port, reads data sent by car's on-board diagnostic system, detects trouble code of ECU and gives you the solution to fix it without having to take your car to the shop every time. Save money and time!

Thanks to the unique Battery Saver technology you can rest assured that, unlike other OBD adapters, X-ELM won't drain your battery if you leave it plugged in.

Features:

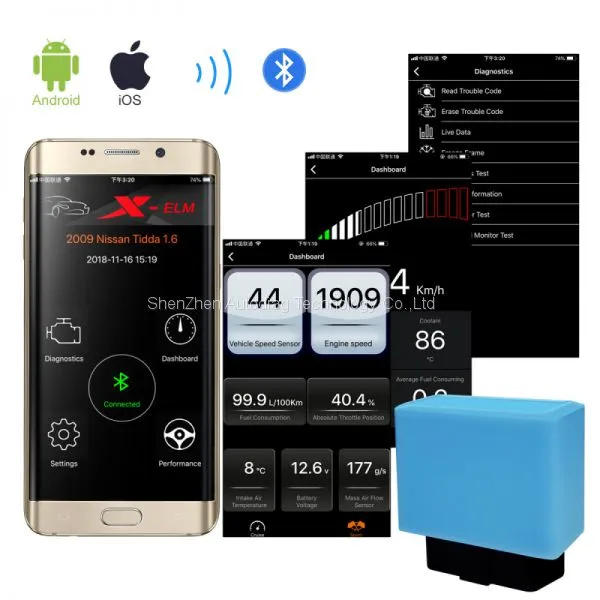

l  Through the vehicle’s OBD interface, the device can read the real-time data of the vehicle such as: speed, water temperature, engine speed, fuel consumption, etc, and via the inserted Blue-tooth module, it will be connected with smart phone so that the APP can display those data as well. display those data on the APP in the smart phone.

l  Read fault code (DTC pending or permanent), Clear fault code, Read dynamic data streams (Live data), Query freeze frame, MIL indication, Readiness status testing, Oxygen sensor detection testing, On-board monitoring test for specific monitored systems, Read control of on-board systems or components, Read vehicle information.

l  Support systems: Misfire, Fuel, Comprehensive components, EGR, Oxygen sensor, Catalyst, Evaporative, O2 sensor heater, Secondary air, A/C, and many more.

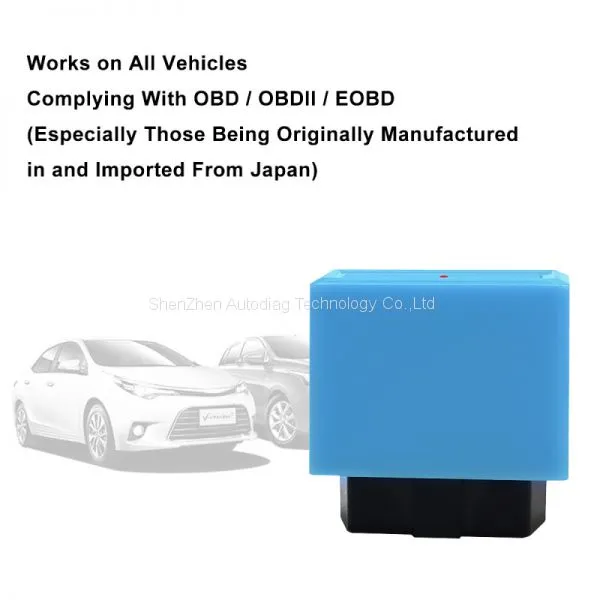

l  Works on all 1996 US-Based, 2000 EU-Based and Asian cars, and Newer OBD II & CAN domestic or import vehicles. Vehicle Coverage: Audi, BMW, Mercedes Benz, VW, Opel, Volvo, GM, Ford, Chrysler, Toyota, Lexus, Honda, Acura, Nissan, Infiniti, Porsche, Ferrari, Polaris, Skoda, Daewoo, Dodge, Jaguar, Jeep , Land Rover, Suzuki, Mazda, Saab, Mitsubishi, Isuzu, Hyundai, Kia, Holden, Peugeot, Citroen, Renault, Fiat, Daihatsu, Chery, Geely, etc.

l  Supported vehicle protocols: ISO 9141-2, ISO 14230-4 (KWP 5 Baud Init), ISO 14230-4 (KWP Fast Init), ISO 15765-4 (CAN 11Bit, 500), ISO 15765-4 (CAN 29bit, 500).

Specifications:

l  Dimensions: 103 * 64 * 38 (mm)

l  Weight: Approx 0.12Kg

l  Operating Voltage: 8.0 to 36.0 V power provided via vehicle OBD Socket

l  Working Current: 40mA

l  Standby Current:<10mA

l  Operating temperature: -20 to 85 ℃(-4 to 185℉)

l  Supported smart phone operating system: Android 4.2, iOS

l  Bluetooth Version: 4.0

Package Contains:

l  1 x X-ELM Main Unit

l  1 x Quick Use Guide
