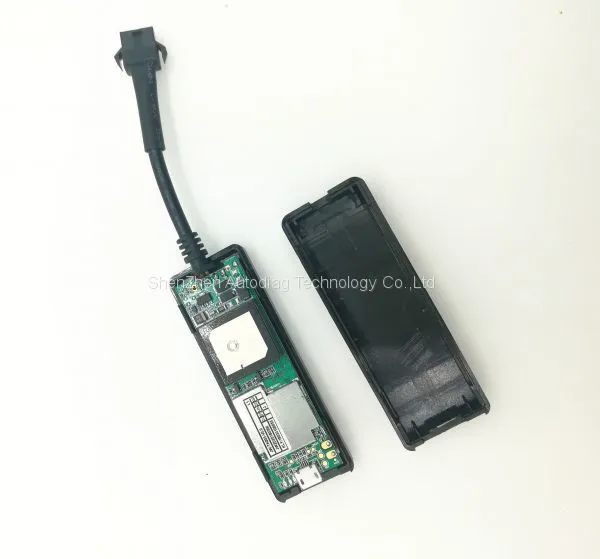

mini gps tracker satellite gps tracker Global GPS Tracking Tracker Hidden Motorcycle Gps Tracker Mini GPS Tracker For Car Vehicle Bike
for more information and details,contact our sales skype berylliu3
1. product packaging accessories:
1.1 power 4P line 1pc (standard accessory)
1.2 electric relay 1pc (optional accessory)
1.3 User manual 1pc (standard accessory)
(Accessories products refer to the actual product)
2. Product features：
2.1 GSM four frequency(GSM850/900/1800/1900MHZ) system global general;
2.2 built-in switching power supply, exceed wide voltage input range: 9-100VDC;
2.3 GPS continuous GPS positioning, GPRS report regularly;
2.4 Support SMS message to check the location info;
2.5 built-in vibration sensor, realization vehicle anti-theft intelligently;
2.6 ACC the ignition signal detection,vehicle status prompted;
2.7 waterproof designed
2.8 built-in backup battery, realize the illegal cut the line alarm;
Content |
Specs. |
Dim. |
75mm x 20mm x 15mm |
Weight |
50g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS chip |
TD1030 |
GPS sensitivity |
-165dBm |
GPS accuracy |
2m |
Time To First Fix |
Cold status 35-42s Warm status 2s Hot status 1s |
voltage input |
9－100V input
|
Battery |
Build-in 3.7V 180mAh Li-ion battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +55°C |
Humidity |
5%--95% non-condensing |
3the installation instructions
3.1 Preparation before installation
3.1.1 open the box, check the equipment model is correct, accessories are complete, otherwise please contact your dealer;
3.1.2 equipment terminal need to insert a GSM SIM card to work properly, GSM card Unicom or mobile optional (GSM network universal).Please prepare a valid SIM card.
note:
(1) Before installing or removing the SIM card, first set the power switch on the side of the terminal to the power off position;
(2) whether the terminal SIM card GPRS function;
(3) terminal SIM card need to open caller ID function (according to customer needs to select the function is not open or not open);
(4) Make sure that the terminal SIM card can be used normally
3.2 Select the installation location
Terminal installation is recommended for the hidden installation, the terminal installation of the proposed installation by the dealer specified by the professional organization to install, and note the following:
3.2.1 In order to avoid thieves damage, equipment selection should be hidden as much as possible;
3.2.2 to avoid with the launch of the source together, such as reversing radar, anti-theft and other vehicle communications equipment;
3.2.3 can be used to tie the tape fixed, or with a wide sponge strong double-sided adhesive paste;
3.2.4 equipment built-in GSM antenna and GPRS antenna, the installation should ensure that the receiving side (towards the sky), and the top of the metal-free shielding, the proposed installation location:
⑴ the front windshield below the decorative box within the shelter;
⑵ before the instrument panel (the skin is non-metallic material) around the shelter;
⑶ under the windshield under the decorative panels.
3.2.5 If the car winds off work paste metal insulation layer or heating layer, will reduce the GPS receiver signal, resulting in GPS work disorders, please replace the equipment installation location.
4. Device wiring precautions
4.1 power supply, ACC, off the oil control line (4Pin)
4.1.1 The standard power supply for the equipment is 12V-100VDC. Please use the power cord provided by the factory. The red line is the positive pole of the power supply and the black is the negative pole of the power supply. If the power supply is negative, please select a separate grounding or grounding. Then
4.1.2 Equipment orange line for the ACC line, be sure to take the vehicle ACC switch, the terminal will be based on the ACC state to determine whether to enter the fortification; if not ACC line, will make the vehicle into the default fortification state, the vehicle will vibrate, Will trigger a vibration alarm. If you do not need anti-theft function, the ACC line can be directly connected with the positive power supply.
4.1.3 off the oil control line (yellow line) connected to the yellow line on the relay.
5.SMS instructions and how to use it
Send the SMS code to the GPS car terminal when the SIM card number is separated by a comma.
5.1 Basic operation settings
5.1.1 Center number setting (that is, the owner number, must be done, otherwise no other operation):
5.1.2 Setting the center number: You must send the text message to the terminal SIM card number using the owner number
SMS format:admin123456 155 ********
Example: admin ok
"155 ********" for the terminal to check the SIM card number, received a prompt "center number set successfully" message, the owner can carry out other short-term instructions on the terminal or online check the car The
5.1.3 modify the terminal password: Please keep in mind the password, such as forget the owner of the central number can be sent to restore the factory settings
The default terminal password is: 123456
Modify the terminal password instructions: password123456 666888 (666888 for the new password, must be six digits)
Reply to information: password modification success, new password: 666888, please be careful custody!
5.2 burglar alarm location query settings
5.2.1 Chinese location location query:
Center number to send instructions to the terminal device SIM card, the terminal to reply to the last time the Chinese location information to the center number.
Instruction format: DW or 123
Reply to information: Guangdong Province, Shenzhen, Longgang District, Burong Road,
