ELM WIFI OBD2 CAN-BUS Automotive Scan Tools support IPHONE Android OBDii Interface
skype berylliu3 mail:beryl@autodiagtech.com
● High quality, good feedback 100%
● Fast delivery with big stock, lowest price from China
● With life-long warranty directly from our factory
WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols:
ISO 9141
ISO 11898(aka. CAN)
ISO 14230(aka. KWP2000)
ISO 15765(aka. CAN)
SAE J1939

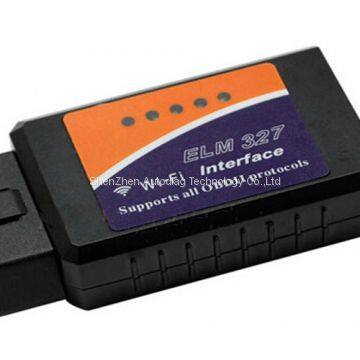

WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. WI-FI OBD AUTO CHECKER is measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation. It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch /iPad is made by WIFI connection in adHoc mode.
Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible. Model year 1996 and newer vehicles are compliant by default, and will not have this sticker.
Following are some of the parameters which could be read from the vehicle.
◆Vehicle Speed
◆RPM
◆Fuel Consumption*
◆Engine Coolant Temp
◆Fuel Pressure
◆Calculated Engine Load
◆Throttle Position
◆Intake Manifold Pressure
◆Air Intake Temp
◆Timing Advance
◆Mass Air Flow
◆Fuel Level
◆Barometric Pressure
◆EVAP System Vapor Pressure
◆Fuel Trim
Output Protocol: RS232 to WIFI
Frequancy: 38400
Voltage: 12V
Current: 45mA
WIFI: Yes
Switch: NO
Supported platform: iPhone, Android, Symbian, Windows Mobile, palm, pc, pocket pc.
Software:
1. For Andyiod: Torque+1.5.58+
2. For Symbian: OBDScopev1.21
For WindowMobile-palm-pc-pocket pc:
3. ScanMaster--ELM v2.1-pc
4. PCMSCAN-pc
5. OBD2Spy
6. ELM327-V1.2-pc
7. EasyOBDII
8. WOBDCRAZY

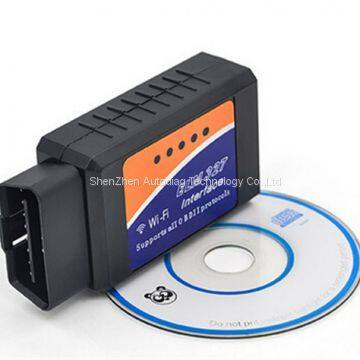

Software CD is included.
Size: 88*46*25
Vehicles supported:
Our device works on all 1996 to 2010 cars and light trucks sold in the United States, including:
Acura
Alfa Romeo
Ariel Atom
Aston Martin
Audi
Bentley
BMW
Buick
Cadillac
Chevrolet
Chrysler
Citroen
Daewoo
Daihatsu
Daimler
Dodge
Ferrari
Fiat
Ford
Geo
GMC
Holden
Honda
Hummer
Hyunda
Infiniti
Isuzu
Jaguar
Jeep
Kia
Lamborghini
Lancia
Land Rover
Lexus
Lincoln
Lotus
Maserati
Mazda
McLaren
Mercedes
Mercury
MG
Mini
Mitsubishi
Nissan
Oldsmobile
Opel
Pagani
Panoz
Peugeot
Plymouth
Pontiac
Porsche
Regal
Renault
Rolls-Royce
Roush
Rover
Saab
Saleen
Saturn
Seat
Scion
Shelby
Skoda
Smart
Subaru
Suzuki
Tesla
Toyota
Triumph
TVR
Vauxhall
Volkswagen
Volvo
Yugo
.....
Packing List
1 * Wi-Fi ELM 327
1 * CD with software
