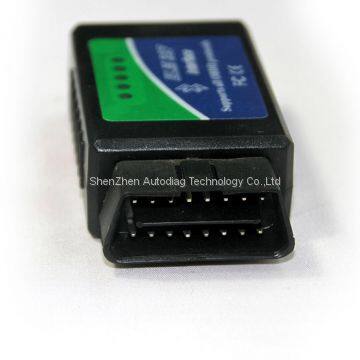

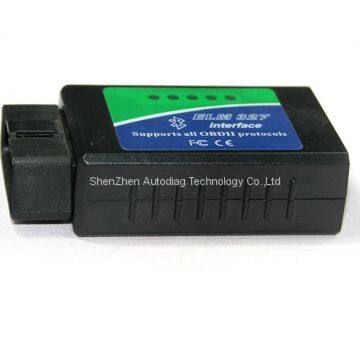

ELM 327 bluetooth OBD2 CAN BUS Scanner OBDII Wireless
Diagnostic Tool
SKYPE:berylliu3 Mail :beryl@autodiagtech.com
● Can OEM with new design
● High quality, good feedback 100%
● Fast delivery with big stock, lowest price from China
● With life-long warranty directly from our factory
Functions:
Read diagnostic trouble codes, both generic and manufacturer specific, and display their meaning (over 3000 generic code definitions in the database)
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others
Features:
OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols
Automatic
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
Default settings(user adjustable)
Specifications:
| Output Protocol | RS232 to bluetooth |
| Frequancy | 38400 |
| Voltage | 12V |
| Current | 45mA |
| Bluetooth | 10M |
| Size | 88*46*2 |
| Supported platform | Andriod, Symbian, Windows Mobile, palm, pc, pocket pc. |
Software:
1. For Andyiod: Torque+1.5.58+
2. For Symbian: OBDScopev1.21
For WindowMobile-palm-pc-pocket pc:
3. ScanMaster--ELM v2.1-pc
4. PCMSCAN-pc
5. OBD2Spy
6. ELM327-V1.2-pc
7. Easy OBDII
8. WOBDCRAZY
Software CD is included.
Packing List:
1 EOBD / OBD2 Main Unit
1 CD-ROM
